IronRidge UFO Mid Clamp for XR Rails, 30–46mm, Clear – UFO-CL-01-A1

Product Overview

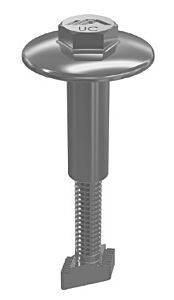

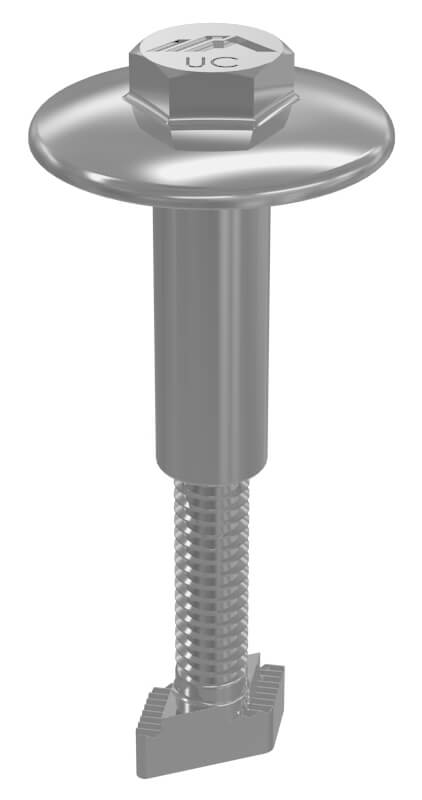

The IronRidge UFO (Universal Fastening Object) UFO-CL-01-A1 is a mid clamp. It sits on an IronRidge XR Rail between two neighboring solar panels and holds down the edges of both. When tightened, it holds the panel frames down against the rail.

The clamp also creates an electrical bond, a solid metal-to-metal connection, between the panel frames and the rail. That bond is part of IronRidge's Integrated Grounding System, which is listed to UL 2703 and removes the need for separate grounding hardware at each panel. The UFO comes assembled and lubricated, fits panel frames 30 to 46 mm tall, and is made of 300 series stainless steel in a clear (mill) finish.

This listing is for one clamp. At the ends of each row, IronRidge pairs the UFO with its EFO end clamps.

Best For

• Rooftop arrays on IronRidge XR Rails: IronRidge lists the UFO family for its Flush Mount system, which mounts panels parallel to a pitched roof.
• Tilted arrays and ground mounts: IronRidge also lists the UFO family for its Tilt Mount system and for its Ground Mount system with XR100 and XR1000 rails.
• Matching panel frame color: The A1 is the clear (mill) finish. The UFO-CL-01-B1 is the same clamp in black.

Key Features & Specifications

What You May Also Need

Usually required

• IronRidge XR Rails (for example, the XR100 rail, 84 in, mill): The UFO clamps onto IronRidge XR Rails. Choose the rail model and length for your layout and site loads.
• EFO end clamps: Hold the outside edge of the first and last panel in each row. IronRidge pairs EFO end clamps with UFO mid clamps. EFO clamps fit 30–40 mm frames.
• Roof attachments: Such as an L-foot (an L-shaped bracket that connects the rail to the roof attachment) or FlashFoot2 (a roof attachment with built-in flashing that seals the roof penetration). Pick the attachment for your roof type.

May be required

• BOSS bonded structural splice: Joins two rail sections end to end when a row is longer than one rail, and keeps them bonded. Choose the splice made for your rail model.
• IronRidge grounding lug (XR-LUG-04-A1, for IronRidge XR Rails): Connects a row of panels to the system's grounding wire. IronRidge's tech brief calls for 1 lug per row on Flush Mount and Tilt Mount, and 1 per array on Ground Mount.

Optional upgrades

• PV cable clips: Keep panel wiring tidy along the frames and rails.
• Black UFO clamps (UFO-CL-01-B1): For black-framed panels where you want the clamps to blend in.

Important Considerations

• Check frame height. The UFO fits 30–46 mm frames, but EFO end clamps fit only 30–40 mm. If your panels are taller than 40 mm, check IronRidge's other end-clamp options.
• IronRidge systems only. IronRidge states the UFO is only for installation and use with IronRidge products, following its written instructions. The UL 2703 listing applies to the IronRidge system installed per IronRidge's manuals.
• Follow the installation manual. Torque values, clamp positions and the list of tested panels are in IronRidge's installation manuals. Also follow the panel manufacturer's rules for where clamps may be placed on the frame.
• Grounding lugs. Plan on IronRidge grounding lugs: 1 per row on Flush Mount and Tilt Mount, 1 per array on Ground Mount. IronRidge's manual lists a lug-free option only for certain older Enphase M215, M250 and C250 microinverters. Confirm grounding with IronRidge's installation manual.
• Quantity. This listing is for one clamp. Count one per mid-clamp location in your layout.
