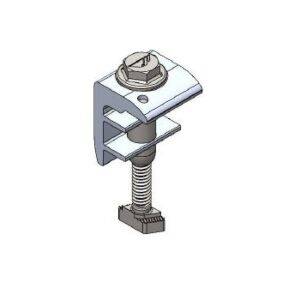

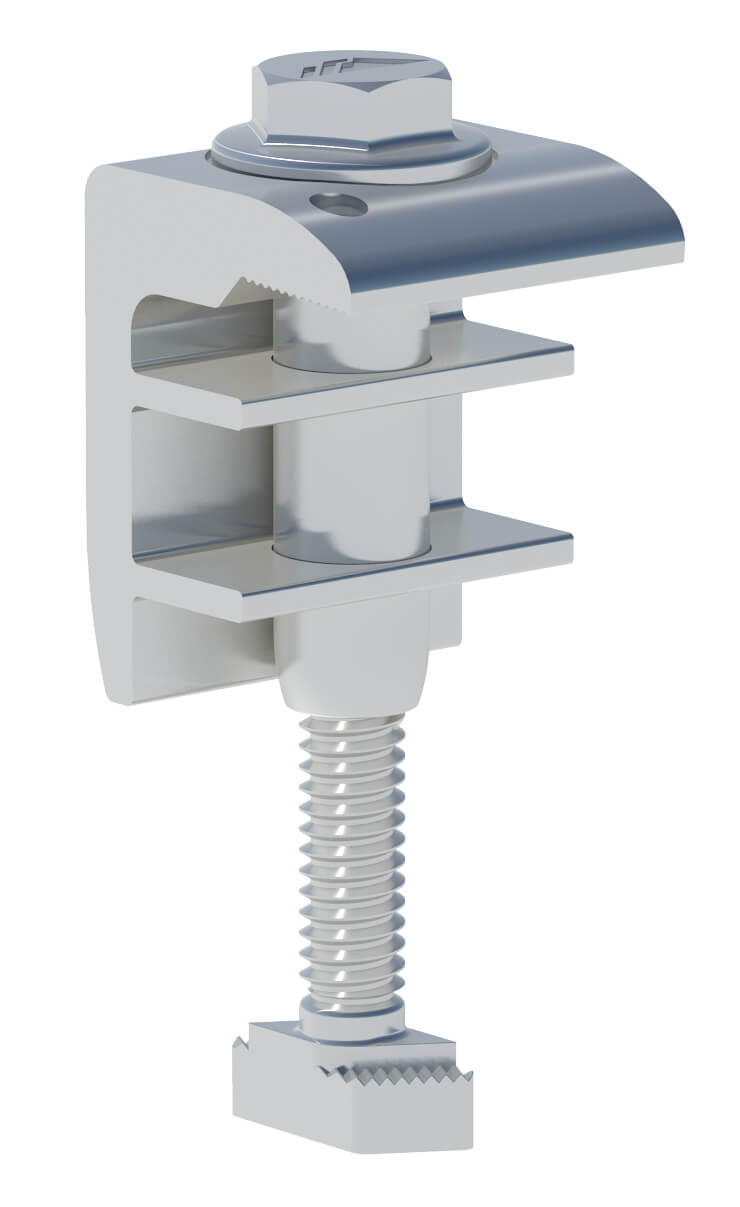

IronRidge EFO End Clamp for XR Rails, 30–40mm, Mill – UFO-END-01-A1
IronRidge EFO End Clamp for XR Rails, 30–40mm, Mill – UFO-END-01-A1
Regular price
$6.62
Regular price
Sale price
$6.62
Unit price
/
per
Couldn't load pickup availability
Product Overview
The IronRidge EFO, or End Fastening Object (UFO-END-01-A1), is a one-piece end clamp that secures the outer edge of the first and last module on IronRidge XR rails. This listing is the mill finish.
IronRidge designed EFO to replace the older method of snapping a Stopper Sleeve onto a UFO mid clamp to make an end clamp. IronRidge says EFO needs no on-site assembly.
IronRidge lists EFO for module frame heights of 30 to 40 mm. A bonding pin under the clamp head keeps it flush to the module as it is tightened, per IronRidge.
Best For
- Array ends on IronRidge XR rails: IronRidge's XR Flush Mount manual uses EFO (or UFO with a Stopper Sleeve) at the first and last module of each row.
- Modules with 30 to 40 mm frames: IronRidge's cut sheet, tech brief, catalog and manual all give this range for EFO.
- Matching mill racking: Pair it with the IronRidge UFO mid clamp (clear) between modules.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | End clamp for IronRidge XR rails |
| Part number | UFO-END-01-A1 (End Fastening Object, mill) |
| Module frame height (per IronRidge) | 30 to 40 mm |
| Materials (per IronRidge cut sheet) | Clamp body: 6000 series aluminum, mill or black. Bolt: 300 series stainless steel, clear and black. |
| Head size | 7/16" (cut sheet) |
| Torque (per IronRidge manual) | 80 in-lbs with a 7/16" socket |
| Placement (per IronRidge manual) | Module at least 1" from the rail end |
| Systems (per IronRidge) | IronRidge says EFO is compatible across its XR systems: Flush Mount, Tilt Mount and Ground Mount |
| UL 2703 (per IronRidge manual) | The XR Flush Mount system is UL 2703 listed (#5003807, #5028987, #5034990). IronRidge says the scope of evaluation includes bonding, grounding, mechanical loading and fire classification. |
| Warranty (per IronRidge) | 25 years for products and 10 years for accessories and electrical junction boxes, from shipment. The 5-year finish warranty does not apply to mill aluminum, pre-plated steel or polymeric products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025). |
| Source | IronRidge End Fastening Object Cut Sheet v1.10; IronRidge EFO End Fastening Object Tech Brief Version 1.0; IronRidge Parts Catalog, Version 3.66 (2026); IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- UFO mid clamps: Used between modules. See the UFO, clear.
- IronRidge XR rails, attachments and a grounding lug: See roof mounts.
- A torque wrench and 7/16" socket: Listed in IronRidge's XR Flush Mount manual.
May be required
- A hidden end clamp instead: IronRidge's manual allows CAMO in place of EFO.
Optional upgrades
- End caps for the rail ends: IronRidge offers end caps for each XR rail size.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Frame height. EFO is listed for 30 to 40 mm frames. The UFO mid clamp covers 30 to 46 mm, so check end-clamp fit for taller frames.
- Hold it while tightening. IronRidge says to hold end clamps while torquing to prevent rotation and kicking out, and to make sure EFO stays hooked over the module.
- Rail ends. IronRidge's manual says modules should be a minimum of 1" from the rail ends.
- Check your module. IronRidge's XR Flush Mount manual lists the framed modules tested or evaluated with the system, by maker and frame height. Confirm yours is listed.
