IronRidge FlashFoot2 Flashed Comp Shingle Roof Attachment, Mill – FF2-02-M2
SKUFF2-02-M2

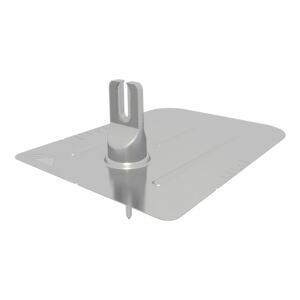

IronRidge FlashFoot2 (FF2-02-M2) is a flashed roof attachment for composition (asphalt) shingle roofs. This listing is the mill finish. It anchors IronRidge XR rails to the roof rafters.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 0.9 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
IronRidge FlashFoot2 (FF2-02-M2) is a flashed roof attachment for composition (asphalt) shingle roofs. This listing is the mill finish. It anchors IronRidge XR rails to the roof rafters.

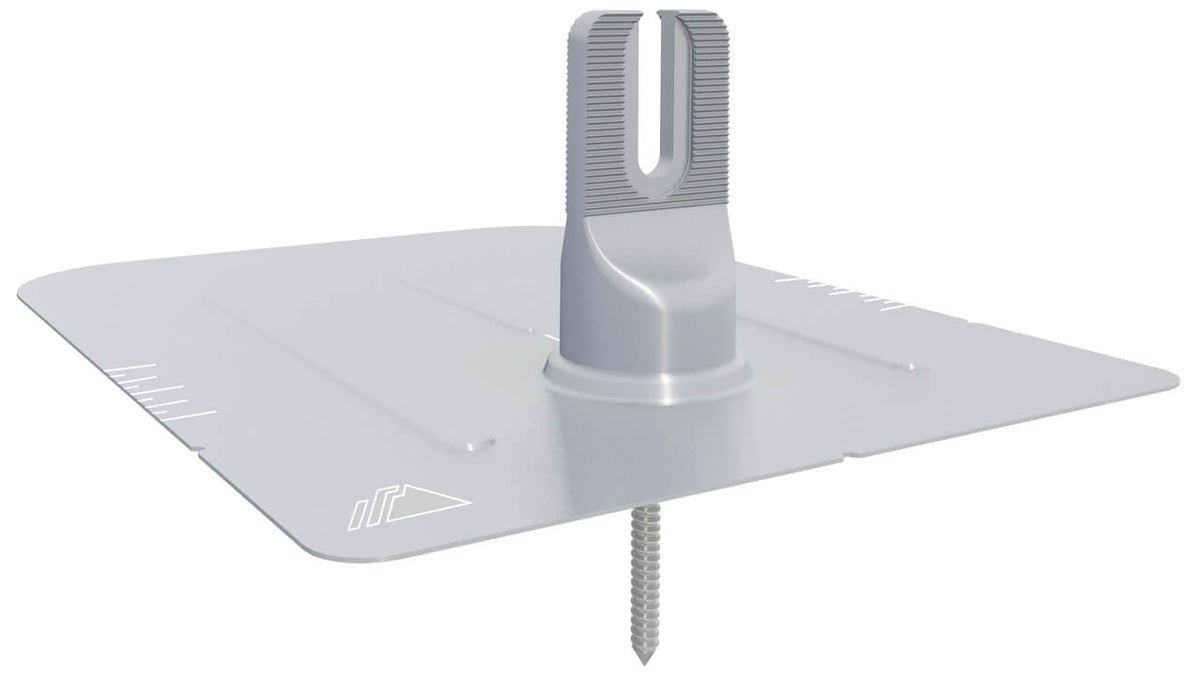

The aluminum flashing slides under the shingle course. A stainless steel lag bolt with an EPDM-backed washer goes through the flashing into the rafter. A twist-on Cap then locks over the bolt and gives the rail an open slot to attach to.
IronRidge describes a three-tier water seal: an elevated platform that diverts water, a stack of components that raises the seal an inch, and a Cap that encapsulates the seal. IronRidge says the Cap aligns the rail with the lag bolt in a concentric load path.
Best For
- Composition shingle roofs: IronRidge rates FlashFoot2's water seal for composition shingle roofs with slopes between 2:12 and 12:12.
- IronRidge XR Flush Mount systems: IronRidge's FlashFoot2 manual says it is ready for IronRidge XR Rails once installed. The Cap can face E/W or N/S rails.
- Installs that use one socket size: IronRidge says the custom lag bolt uses the same 7/16" socket as other Flush Mount components.
- Mill racking: Choose this finish to match mill rails and clamps. The black version is sold separately.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Flashed composition shingle roof attachment, IronRidge XR Flush Mount system |
| Part number | FF2-02-M2 (FlashFoot2, mill) |
| Included per kit (per IronRidge cut sheet) | 1 lag bolt, 5/16" × 4.25", 300 series stainless steel; 1 flashing assembly, aluminum; 1 Cap assembly, aluminum; 1 EPDM-backed washer, 300 series stainless steel |
| Flashing size | 8.0 × 12.0 in (cut sheet) |
| Finish | Mill (flashing and Cap); lag bolt and washer clear |
| Roof type | Composition shingle |
| Water seal testing (per IronRidge) | Tested to UL 441 Section 27 "Rain Test" and TAS 100-95 "Wind Driven Rain Test" by Intertek; ratings apply to composition shingle roofs with slopes between 2:12 and 12:12; tested and evaluated without sealant |
| Structural certification (per IronRidge) | Designed and certified for compliance with the International Building Code and ASCE/SEI-7 |
| UL 2703 (per IronRidge) | Conforms to UL 2703 mechanical and bonding requirements; IronRidge refers to the XR Flush Mount Installation Manual for full ratings. The XR Flush Mount system is UL 2703 listed (manual Version 5.2). |
| Rail orientation | E/W or N/S; rail can be installed on either side of the Cap |
| Warranty (per IronRidge) | 25-year warranty period for products; 5-year finish warranty, which IronRidge says does not apply to mill aluminum. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) for terms and exclusions. |
| Source | IronRidge FlashFoot2 Cut Sheet v2.10; IronRidge FlashFoot2 Installation Manual FM-FF2-MAN Rev 1.21; IronRidge FlashFoot2 Tech Brief Version 1.01; IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- IronRidge XR rails and bonding hardware: The rail attaches to either side of the Cap's open slot with IronRidge bonding hardware (sold separately).
- Roofing sealant for the pilot holes: IronRidge's steps say to fill each 1/4" pilot hole with the roofing manufacturer's approved sealant.
- Module clamps and grounding: Choose them from IronRidge's XR Flush Mount manual for your modules. See roof mounts.
May be required
- Splices and expansion joints: IronRidge requires expansion joints on rows of continuous rail over 100 feet.
- Tools: IronRidge lists a tape measure, chalk line, stud finder, roofing bar, caulking gun, and a driver with a 1/4" bit and 7/16" hex socket.
Optional upgrades
- Other roof types on the same project: For tile, metal or low-slope sections, see IronRidge's manual for its other attachments, and browse solar panel mounts.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Placement under the shingles. IronRidge says to slide the flashing between the 1st and 2nd courses. The top must sit at least 3/4" above the edge of the 3rd course, and the bottom above the edge of the 1st course.
- Lag into the rafter. Locate rafters, snap lines and drill 1/4" pilot holes as IronRidge's manual describes. Tighten the lag bolt until fully seated.
- Composition shingle only. IronRidge's water seal ratings for FlashFoot2 apply to composition shingle roofs between 2:12 and 12:12 slope.
- Finish warranty. IronRidge's 5-year finish warranty does not apply to mill aluminum, per its limited warranty document.
- Engineering and permits. Attachment spacing, rafter or deck requirements and load capacity are project-specific. Use IronRidge's design tools and stamped certification letters, and install under local building codes.
