IronRidge UFO Universal Module Clamp, Black – UFO-CL-01-B1

Product Overview

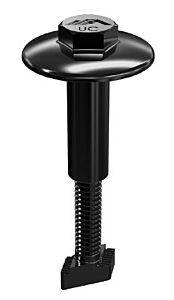

The IronRidge UFO® (Universal Fastening Object), part UFO-CL-01-B1, is the universal mid clamp that bonds solar modules to IronRidge XR Rails. It comes assembled and lubricated, stands in place during module placement, and creates an electrical bond to both the module frame and the rail as part of IronRidge’s UL 2703 Integrated Grounding System.

UFO mid clamps sit between adjacent modules along a rail. At the array ends you typically use EFO end clamps (or UFO + Stopper Sleeve on older methods, or CAMO for a hidden end). This listing is the black (B1) finish. Sold individually.

Best For

• Mid-module clamping on IronRidge XR10 / XR100 / XR1000 rails
• Bonded module-to-rail connections without separate grounding hardware at each clamp
• Matching black (B1) clamp finish to rail / module aesthetics

Key Features

• Fully assembled and lubricated mid clamp
• Bonds module frame and rail (parallel grounding paths in listed systems)
• Self-standing during install
• Finish: black (B1)

Key Specifications

• Part number: UFO-CL-01-B1
• Type: UFO mid clamp
• Module frame height (per existing product documentation): approximately 30–46 mm
• Finish: black (B1)
• Sold: individually

Compatibility / Important Considerations

• Confirm frame height against the IronRidge Flush Mount / UFO installation manual for your modules.
• To use UFO as an end clamp, you need the matching Stopper Sleeve — or use dedicated EFO / CAMO end clamps instead.
• Clear (A1) and black (B1) are finish variants of the same clamp function.
