IronRidge BOSS Bonded Structural Splice for XR100 Rail – XR100-BOSS-01-M1

Product Overview

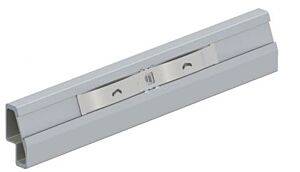

The IronRidge BOSS® (XR100-BOSS-01-M1) is a bonded structural splice for joining two lengths of IronRidge XR100 rail end-to-end. It slides into the rail cavity as a single piece — no tools, bolts, or separate bonding straps for the splice itself.

Built-in bonding spring teeth bite the rail interior to create an electrical bond that meets UL 2703 bonding requirements within listed IronRidge systems. Place the splice anywhere along a span except the outside cantilever. For thermal expansion joints, leave about a 1″ gap between rail ends (per IronRidge guidance) instead of adding a separate bonding jumper across the gap.

Best For

• Extending XR100 rail runs beyond a single stick length
• Creating bonded rail joints without external bonding straps at the splice
• Expansion joints in long XR100 rows (with the specified gap)

Key Features

• Tool-free, single-piece bonded splice
• Integrated bonding spring (UL 2703 path within listed systems)
• Self-centering stop tab for install feedback
• Sized specifically for XR100 (not interchangeable with other XR sizes)

Key Specifications

• Part number: XR100-BOSS-01-M1
• Compatible rail: IronRidge XR100 only
• Install location: anywhere along span except outside cantilever
• Expansion joint: leave ~1″ gap per IronRidge instructions when used as expansion splice

Compatibility / Important Considerations

• XR10, XR100, and XR1000 each have their own BOSS SKU — do not mix sizes.
• Do not place a BOSS in the outside cantilever zone of a rail span.
• Follow IronRidge span tables and splice rules in the Flush Mount / system manual for your rail size and load case.
