Combiner Boxes

An Enphase IQ Combiner brings the AC branch circuits from an Enphase IQ microinverter array together in one outdoor NEMA 3R enclosure, with an integrated IQ Gateway for system monitoring and revenue-grade production metering. This collection carries the Enphase IQ Combiner 5 and IQ Combiner 6C so you can pick the right interconnection point for a solar-only system or one with IQ Battery and EV charging.

Read more about Combiner Boxes

Best for

  • Residential Enphase IQ microinverter systems that need a single outdoor combiner and gateway
  • Adding IQ Battery storage, an IQ EV Charger, or load control to an Enphase system
  • Installers who want built-in production metering and fewer separate parts to mount and wire

Which IQ Combiner fits your system

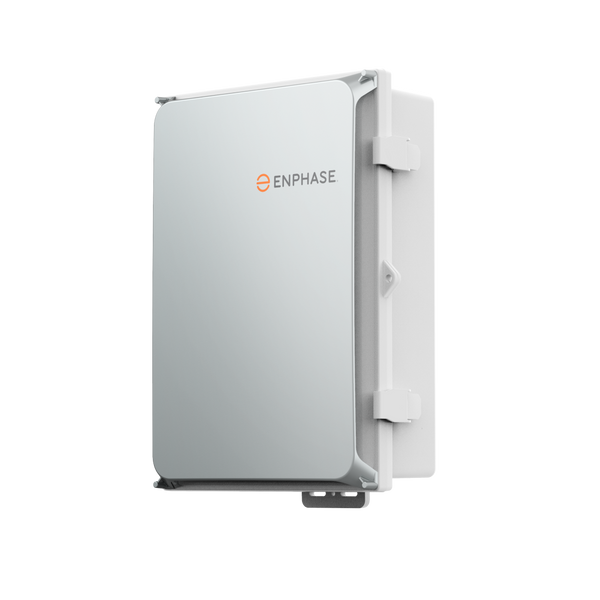

Enphase IQ Combiner 5 with Hold-Down Kit (X-IQ-AM1-240-5-HDK). An 80 A combiner for 120/240 V or 120/208 V systems with up to four 2-pole PV branch breakers (breakers sold separately) and a factory-installed hold-down kit. Its built-in control board provides wired communication with IQ Battery 5P and IQ System Controller 3/3G. A cellular modem is optional.

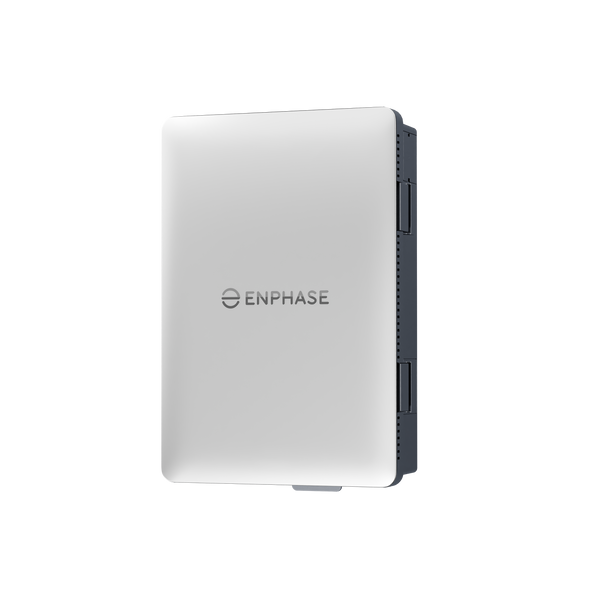

Enphase IQ Combiner 6C (X-IQ-AM1-240-6C). For 240 V split-phase systems with IQ Battery 10C. It takes up to five PV branches plus spaces for two battery breakers and one EV charger breaker, and adds an integrated load controller and an included cellular modem.

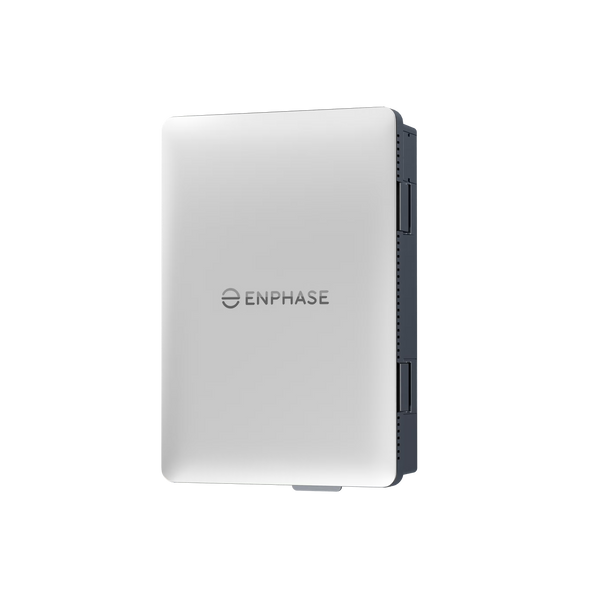

Enphase IQ Combiner 6C with 3 pre-installed breakers (X-IQ-AM1-240-6C-3BRK). The same IQ Combiner 6C platform shipped with two PV breakers and one battery breaker already installed, which saves field time on a typical microinverter plus IQ Battery layout.

Important considerations

  • IQ Combiners are built for the Enphase IQ ecosystem. Don't assume compatibility with other brands' microinverters or batteries.
  • The IQ Combiner 6C is not for fully off-grid or generator-integrated systems, and it is not service-entrance rated.
  • Use only Enphase-listed breaker families, and confirm breaker ratings against your array and battery before energizing.
  • Full ratings, dimensions, and metering details are on each product page and the Enphase datasheet. Professional installation is required.

Related: microinverters, gateways and communication, rapid shutdown devices, and breakers and disconnects, plus load centers & panels.

Combiner box FAQ

What does an Enphase IQ Combiner do?

It combines the AC branch circuits from Enphase IQ microinverters in one outdoor NEMA 3R enclosure and includes an integrated IQ Gateway for monitoring and revenue-grade production metering, so you don't need to mount a separate gateway, CTs, and panelboard.

What is the difference between the IQ Combiner 5 and the IQ Combiner 6C?

The IQ Combiner 5 is an 80 A combiner with up to four 2-pole PV branch breaker positions, an optional cellular modem, and wired communication for IQ Battery 5P and IQ System Controller 3/3G. The IQ Combiner 6C adds spaces for two battery breakers and one EV charger breaker, an integrated load controller, and an included cellular modem, and it is designed for systems with IQ Battery 10C.

Are branch breakers included with an IQ Combiner?

The IQ Combiner 5 HDK does not include branch breakers; use the Enphase-listed 2-pole breaker families shown on its product page. If you want breakers already installed, the IQ Combiner 6C 3BRK version ships with two PV breakers and one battery breaker in place.

Can the IQ Combiner 6C help with rapid shutdown?

Per Enphase, the aggregate PV breaker in the IQ Combiner 6C can serve as the rapid shutdown initiator when the combiner is installed outdoors and is readily accessible. Your local inspector decides which rapid shutdown method is accepted.

3 products
