IronRidge BX Top Clamp for 40mm Module Frames, Mill – BX-TCL-40MM-M1
SKUBX-TCL-40MM-M1

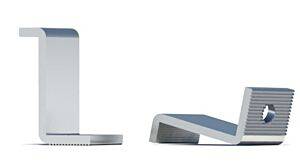

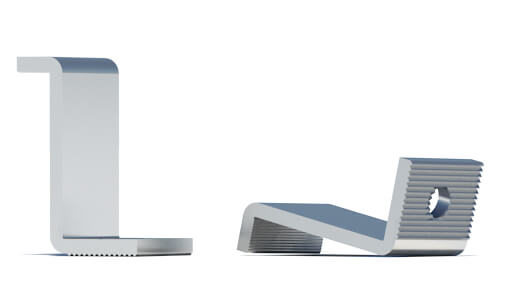

The IronRidge BX Top Clamp (BX-TCL-40MM-M1) presses down on the top edge of a solar module frame on an IronRidge BX ballasted chassis. This version is sized for modules with a 40 mm frame height.
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview
The IronRidge BX Top Clamp (BX-TCL-40MM-M1) presses down on the top edge of a solar module frame on an IronRidge BX ballasted chassis. This version is sized for modules with a 40 mm frame height.
It works together with the BX bottom clamp, which holds the module from below. IronRidge says the pair grips the module from above and below, for a strong connection whatever direction the force comes from.
IronRidge makes top clamps in several frame heights because the clamp must match the module frame. The bottom clamp is the same for every height.
Best For
- BX arrays with 40 mm module frames: Measure your module frame height (or check its datasheet) and match the clamp.
- Every clamped module corner: IronRidge's manual places a bottom clamp and top clamp at each corner bolt position that holds a module.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Module top clamp for IronRidge BX chassis, 40 mm frame height |
| Part number | BX-TCL-40MM-M1, "BX Top Clamp, 40MM, Mill" (IronRidge Parts Catalog) |
| Module frame height | 40 mm |
| Other heights (per IronRidge manual) | Top clamps are frame-height specific: 30, 31, 32, 33, 35, 38, 40 and 46 mm |
| Material (per IronRidge datasheet) | Mill aluminum, 6000 series |
| Torque (per IronRidge manual) | 120 in-lbs on the flange nut (1/2" socket) |
| Used with | BX bottom clamp, BX-BCL-M1 (required, per IronRidge manual) |
| Warranty (per IronRidge) | 25 years for products and 10 years for accessories and electrical junction boxes, from shipment. The 5-year finish warranty does not apply to mill aluminum, pre-plated steel or polymeric products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025). |
| Source | IronRidge Parts Catalog, Version 3.66 (2026); IronRidge BX System Installation Manual, Version 4.2 (2026); IronRidge BX Ballasted System Datasheet, Version 1.30; IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- A BX bottom clamp: One BX-BCL-M1 bottom clamp per top clamp.
- BX chassis: The 5° chassis or 10° chassis.
- A torque wrench and 1/2" socket: Listed in IronRidge's BX manual.
May be required
Optional upgrades
- Bonding parts: 8" module bonding jumpers and a PV module grounding lug.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Match the frame height. A 40 mm clamp is for 40 mm module frames only.
- Tighten last. IronRidge says to tighten and torque top clamps once modules are in their final position, and to check every clamp before the next row.
- Wires. IronRidge says to make sure clamps do not pinch any wires.
- Flange nut. IronRidge's manual fastens each top and bottom clamp set with a 1/2" flange nut on the chassis corner bolt. Its documents do not say which BX part includes the nut.
- Check your module. IronRidge's BX manual lists the modules tested or evaluated with BX, by maker, model and frame height. BX modules are installed in landscape orientation, per the manual.
- Engineering and permits. IronRidge says actual structural capacities are defined by PE-stamped certification letters. Use IronRidge's Design Assistant for the layout and ballast plan, and install under local codes.
