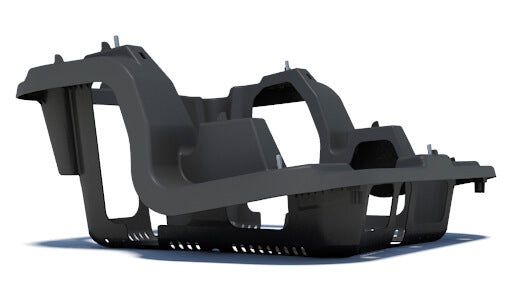

IronRidge BX Ballasted Chassis, 10° Tilt, Flat Roof – BX-10D-P1
SKUBX-10D-P1

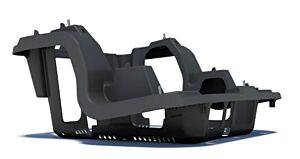

The IronRidge BX Chassis (BX-10D-P1) is a ballasted mount for flat roofs. It holds a solar module at a fixed 10° tilt, and concrete blocks placed inside it hold the array down instead of roof bolts.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 5.22 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The IronRidge BX Chassis (BX-10D-P1) is a ballasted mount for flat roofs. It holds a solar module at a fixed 10° tilt, and concrete blocks placed inside it hold the array down instead of roof bolts.
IronRidge molds the chassis from BASF Ultramid, a glass-reinforced polyamide (nylon). IronRidge says a flange around the edge stiffens it, and a wide base spreads weight to reduce point pressure on the roof.
Openings in the base keep water from pooling, per IronRidge. Modules attach with a BX bottom clamp and a BX top clamp at each corner. IronRidge designed BX for commercial flat-roof projects.
Best For
- Flat commercial roofs: IronRidge says BX is designed for the needs of commercial solar on flat roofs, including complex roof layouts.
- Arrays that avoid roof penetrations: A fully ballasted BX array is held by concrete blocks. IronRidge also allows anchored or hybrid layouts using its Flat Roof Attachment Kit.
- A 10° module tilt: IronRidge makes the chassis in 5° and 10° versions. This listing is the 10° version.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Ballasted flat-roof mount (chassis), 10° tilt, IronRidge BX System |
| Part number | BX-10D-P1, "BX Chassis, 10 Degrees" (IronRidge Parts Catalog) |
| Material (per IronRidge) | BASF Ultramid glass-reinforced polyamide (nylon) |
| Ballast capacity (per IronRidge manual) | 4 full-size (16" × 8" × 4") or 8 half-size (16" × 8" × 2") concrete blocks, nominal |
| Ballast block requirements (per IronRidge manual) | ASTM C 1491 pavers; freeze-thaw resistant where local conditions require; 3000 PSI minimum compressive strength; 28–34 lbs (full) or 14–17 lbs (half), ±2 lbs |
| Row spacing (per IronRidge manual) | Depends on module width. Example: 51" for modules 38.5–39" wide. The manual gives a full table. |
| Roof pitch (per IronRidge manual) | Approved for roof pitches up to 7 degrees |
| Module orientation (per IronRidge manual) | Landscape |
| UL listings (per IronRidge manual) | IronRidge's BX manual lists the BX System as UL 2703 and UL 3741 listed (#5014158, #5025960). It says the UL 2703 scope of evaluation includes bonding, grounding, mechanical loading and fire classification. |
| Fire rating (per IronRidge manual) | Class A system fire rating per UL 2703 at any system tilt with module types 1, 2, 3, 13, 16, 19, 22, 25, 29, 30 and 38 on low-slope roofs (under 9.5 degrees) |
| Warranty (per IronRidge) | 25 years for products and 10 years for accessories and electrical junction boxes, from shipment. The 5-year finish warranty does not apply to mill aluminum, pre-plated steel or polymeric products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025). |
| Source | IronRidge Parts Catalog, Version 3.66 (2026); IronRidge BX System Installation Manual, Version 4.2 (2026); IronRidge BX Ballasted System Datasheet, Version 1.30; IronRidge BX Chassis Tech Brief, Version 1.20; IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- Module clamps: A BX bottom clamp and a BX top clamp, such as the 35mm top clamp, at each module corner.
- Bonding and grounding: IronRidge uses 8" module bonding jumpers between modules, 38" row bonding jumpers between rows, and one PV module grounding lug per continuous array.
- Concrete ballast blocks: Sourced locally, in the quantity shown on the project's ballast plan.
May be required
- Roof anchors: For anchored or hybrid layouts, IronRidge uses the BX Flat Roof Mounting Assembly (BX-MA-FRA-M1) with an IronRidge Flat Roof Attachment and locally sourced strut.
- Slip sheets: IronRidge says slip-sheet needs depend on the roofing material, maker and location. Ask the roofing manufacturer.
Optional upgrades
- The 5° chassis: See the BX 5° chassis.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Clamp placement. IronRidge's manual says clamps go on all four corner bolt positions that hold a module. The north end of the north row and the south end of the south row do not need clamps.
- Ballast plan. IronRidge's Design Assistant creates a ballast map showing the blocks needed in each chassis. Do not guess block counts.
- Anchor locations. IronRidge's manual says anchors shall not be placed on a perimeter south row.
- Handling. IronRidge says to always wear gloves when handling BX chassis.
- UL 3741 projects. IronRidge's UL 3741 listing applies with the equipment and steps in its BX UL 3741 Installation Addendum.
- Roof slope. IronRidge's BX manual says BX is approved for roof pitches up to 7 degrees. It also says to make sure the roof is in good condition before installing.
- Check your module. IronRidge's BX manual lists the modules tested or evaluated with BX, by maker, model and frame height. BX modules are installed in landscape orientation, per the manual.
- Engineering and permits. IronRidge says actual structural capacities are defined by PE-stamped certification letters. Use IronRidge's Design Assistant for the layout and ballast plan, and install under local codes.
