IronRidge BX Module Bonding Jumper, 8" – BX-MB8-M1
SKUBX-MB8-M1
The IronRidge 8" Module Bonding Jumper (BX-MB8-M1) electrically connects the metal frames of two neighboring modules on an IronRidge BX ballasted array. BX chassis are made of a glass-reinforced polymer, not metal, and IronRidge bonds the module frames to each other with...
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview

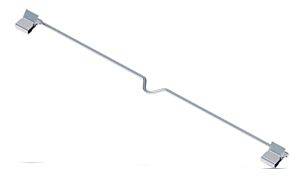

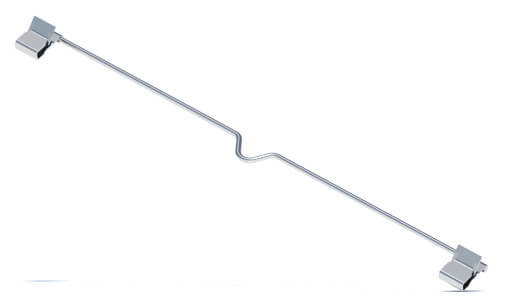

The IronRidge 8" Module Bonding Jumper (BX-MB8-M1) electrically connects the metal frames of two neighboring modules on an IronRidge BX ballasted array. BX chassis are made of a glass-reinforced polymer, not metal, and IronRidge bonds the module frames to each other with these jumpers.
IronRidge makes the jumper from tin-plated copper wire with factory-crimped ends. It presses onto the bottom flange of each module.
Bonding ties the metal parts together so a fault current has a path to ground through the array's grounding lug and grounding wire.
Best For
- Module-to-module bonding on BX: IronRidge's manual says to install 8" Module Bonding Jumpers between all modules along the rows.
- Replacing a removed jumper: IronRidge says jumpers are single use, so a new one is needed if one comes off.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Module-to-module bonding jumper, IronRidge BX System |
| Part number | BX-MB8-M1, "8” Module Bonding Jumper" (IronRidge Parts Catalog) |
| Length | 8" |
| Material (per IronRidge) | Tin-plated copper wire, factory-crimped connection |
| Module flange thickness (per IronRidge) | 1.2 to 3.1 mm |
| Installation (per IronRidge) | Press-on, on the bottom flange of the modules |
| Reuse (per IronRidge manual) | Single use only; replace if removed |
| UL listings (per IronRidge manual) | IronRidge's BX manual lists the BX System as UL 2703 and UL 3741 listed (#5014158, #5025960). It says the UL 2703 scope of evaluation includes bonding, grounding, mechanical loading and fire classification. |
| Warranty (per IronRidge) | 25 years for products and 10 years for accessories and electrical junction boxes, from shipment. The 5-year finish warranty does not apply to mill aluminum, pre-plated steel or polymeric products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025). |
| Source | IronRidge Parts Catalog, Version 3.66 (2026); IronRidge 8" Module Bonding Jumper Cut Sheet v1.10; IronRidge BX System Installation Manual, Version 4.2 (2026); IronRidge BX Ballasted System Datasheet, Version 1.30; IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- A grounding lug: IronRidge requires one PV module grounding lug (PV-LUG-01-A1) per continuous array.
- 38" Row Bonding Jumpers: IronRidge uses BX-RB38-M1 jumpers to bond each row to the next.
- Enough 8" jumpers: One between each pair of neighboring modules along each row.
May be required
- BX chassis and clamps: 5° chassis, 10° chassis and the BX bottom clamp.
Optional upgrades
- Other mounting parts: See solar panel mounts.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Flange thickness. IronRidge lists 1.2 to 3.1 mm. Check your module frame.
- Servicing. IronRidge warns that removing a module may break the bonding path. Install a bonding jumper between the modules on each side of the gap.
- Copper and aluminum. IronRidge says bare copper grounding wire must not touch aluminum or zinc-plated steel parts, to prevent galvanic corrosion.
- Electrical work. IronRidge says electrical installation should be done by a licensed electrician or solar contractor, following NEC 250 and NEC 690.
