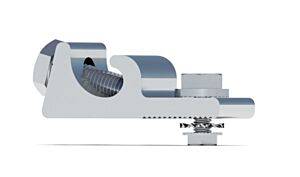

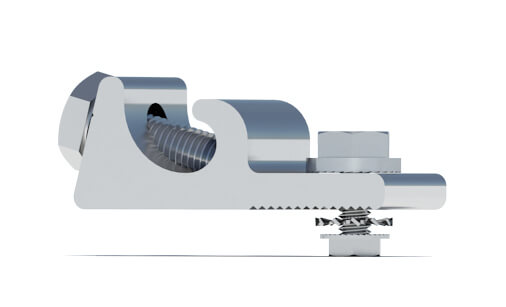

IronRidge PV Module Grounding Lug – PV-LUG-01-A1
SKUPV-LUG-01-A1
The IronRidge PV Module Grounding Lug (PV-LUG-01-A1) connects a solar array's bonded module frames to the grounding conductor. It mounts to a module frame, not to the rail.
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview
The IronRidge PV Module Grounding Lug (PV-LUG-01-A1) connects a solar array's bonded module frames to the grounding conductor. It mounts to a module frame, not to the rail.
IronRidge names this part in its BX ballasted system manual (Version 4.2). There, IronRidge says one PV Module Grounding Lug is required per continuous array, regardless of array size.
IronRidge's XR Flush Mount manual also describes a "Module Grounding Lug" but gives no part number. Confirm with IronRidge before using this lug on an XR rail system.
Best For
- IronRidge BX ballasted arrays: The BX manual says to use the IronRidge PV Module Grounding Lug (PV-LUG-01-A1).
- Grounding at the module frame: IronRidge says to secure it to any module in the array, at the grounding location the module maker specifies.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Module-frame grounding lug |
| Part number | PV-LUG-01-A1 (PV Module Grounding Lug) |
| System (per IronRidge) | Named for the IronRidge BX ballasted system (BX manual Version 4.2; listed in the catalog's BX section) |
| Quantity (per IronRidge BX manual) | One per continuous array, regardless of array size |
| Mounting location (per IronRidge) | Any module in the array, at the module manufacturer's grounding location |
| Torque (per IronRidge BX manual) | Grounding nut 60 in-lbs; grounding lug terminal screws 20 in-lbs |
| Warranty (per IronRidge) | 25 years for products and 10 years for accessories and electrical junction boxes, from shipment. The 5-year finish warranty does not apply to mill aluminum, pre-plated steel or polymeric products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025). |
| Source | IronRidge BX System Installation Manual, Version 4.2 (2026); IronRidge Parts Catalog, Version 3.66 (2026); IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- A copper grounding conductor: Size it to your design and the NEC. IronRidge's documents differ on lug wire ranges, so confirm the range for this part with IronRidge.
- The module maker's instructions: IronRidge says to reference them for the grounding location.
May be required
- A rail-mounted lug instead, on XR rail systems: IronRidge's XR Flush Mount manual allows a rail grounding lug or a module grounding lug. IronRidge does not name PV-LUG-01-A1 in that manual.
Optional upgrades
- Other racking parts: See solar panel mounts.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- System match. IronRidge names PV-LUG-01-A1 for the BX system. Its XR Flush Mount manual describes module grounding lugs without naming this part.
- Galvanic contact. IronRidge says bare copper grounding wire must not contact aluminum and zinc-plated steel components.
- Grounding is code work. IronRidge says to provide direct-to-earth grounding per the latest NEC, including Articles 250 and 690.
