IronRidge Flat Roof Attachment, Mill – FRA-BASE-01-M1
SKUFRA-BASE-01-M1

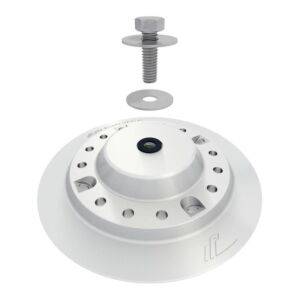

The IronRidge FRA-BASE-01-M1 Flat Roof Attachment is a cast-aluminum base for mechanically attaching IronRidge arrays on flat or low-slope roofs. It provides the deck interface that accepts rail-mounting hardware for L-feet or Fixed Tilt Legs.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.2 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview

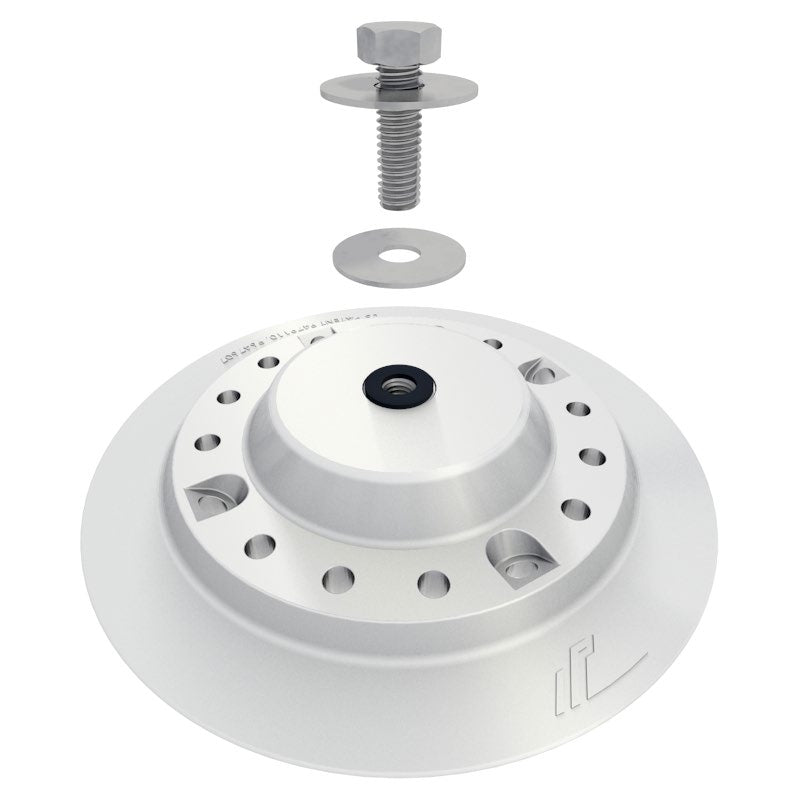

The IronRidge FRA-BASE-01-M1 Flat Roof Attachment is a cast-aluminum base for mechanically attaching IronRidge arrays on flat or low-slope roofs. It provides the deck interface that accepts rail-mounting hardware for L-feet or Fixed Tilt Legs.
Optional formed membrane covers (TPO, PVC, KEE matched to major roofing brands) are sold as separate SKUs. This listing is the mill base only — do not assume a membrane is included.
Best For
- Flat or low-slope roofs (IronRidge’s Tech Brief describes low-slope roofs as 0–6°) that need a fastened IronRidge attachment rather than ballast-only.
- IronRidge XR Tilt Mount or Flush Mount designs that specify FRA bases with L-feet or Fixed Tilt Legs.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Flat Roof Attachment base |
| Part number | FRA-BASE-01-M1 |
| Finish | Mill |
| Fastening pattern (Tech Brief) | 16-point pattern (12 straight and 4 angled fastening options) |
| Roof screws | Type, size, and quantity specified by Structural Engineer; fastener size not to exceed #15; install symmetrically (FRA-01-MAN REV 1.1) |
| Hardware torque (to rail bracket) | 250 in-lbs (21 ft-lbs) with 3/8 in hardware |
| Membranes | Sold separately (FRA-M60… SKUs for TPO/PVC/KEE brands) — not included with FRA-BASE-01-M1 |
| Structural certification | Designed and certified for compliance with the International Building Code & ASCE/SEI-7 |
| UL 2703 | Conforms to UL 2703 (2015) Mechanical and Bonding requirements — see IronRidge Tilt or Flush Mount manuals for full ratings |
| Source | IronRidge Flat Roof Attachment Installation Manual FRA-01-MAN REV 1.1; Flat Roof Attachment Tech Brief Version 1.10 (© 2026); Parts Catalog v3.66 |
What You May Also Need
Usually required
- Roof screws and sealing materials per the structural engineer and roofing manufacturer.
- L-Foot or Fixed Tilt Leg hardware for the rail plane; XR Rails per design.
May be required
- IronRidge Fixed Tilt Leg Kit (10", 15", 20" or 30" north leg) when the array is tilted.
- Matching FRA membrane SKU for the roof membrane brand (order separately).
Optional upgrades
- Roof Mounts for Solar Panels: Other IronRidge roof attachments for the array.
Check current IronRidge documentation and the stamped design for the site before combining racking components.
Important Considerations
- Span and load capacity depend on rail size, tilt angle, snow and wind loads. Use IronRidge Design Assistant or PE-stamped certification letters for your site.
- If using a membrane flashing, remove the silicone washer liner before welding or adhering; ensure membrane compatibility with the existing roof.
- Professional installation required. Follow IronRidge instructions, the roofing manufacturer, and the applicable building code.
