Enphase IQ Battery 10C Cover Kit with Interconnect Cables – B10C-NC-0708-O
SKUB10C-NC-0708-O
The Enphase B10C-NC-0708-O is the IQ Battery 10C cover kit. It is the part that joins two 5.0 kWh battery units (B05-C01-US00-1-3) into one finished IQ Battery 10C. The kit includes the front cover plus the cables that connect the two battery...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 53.1 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview

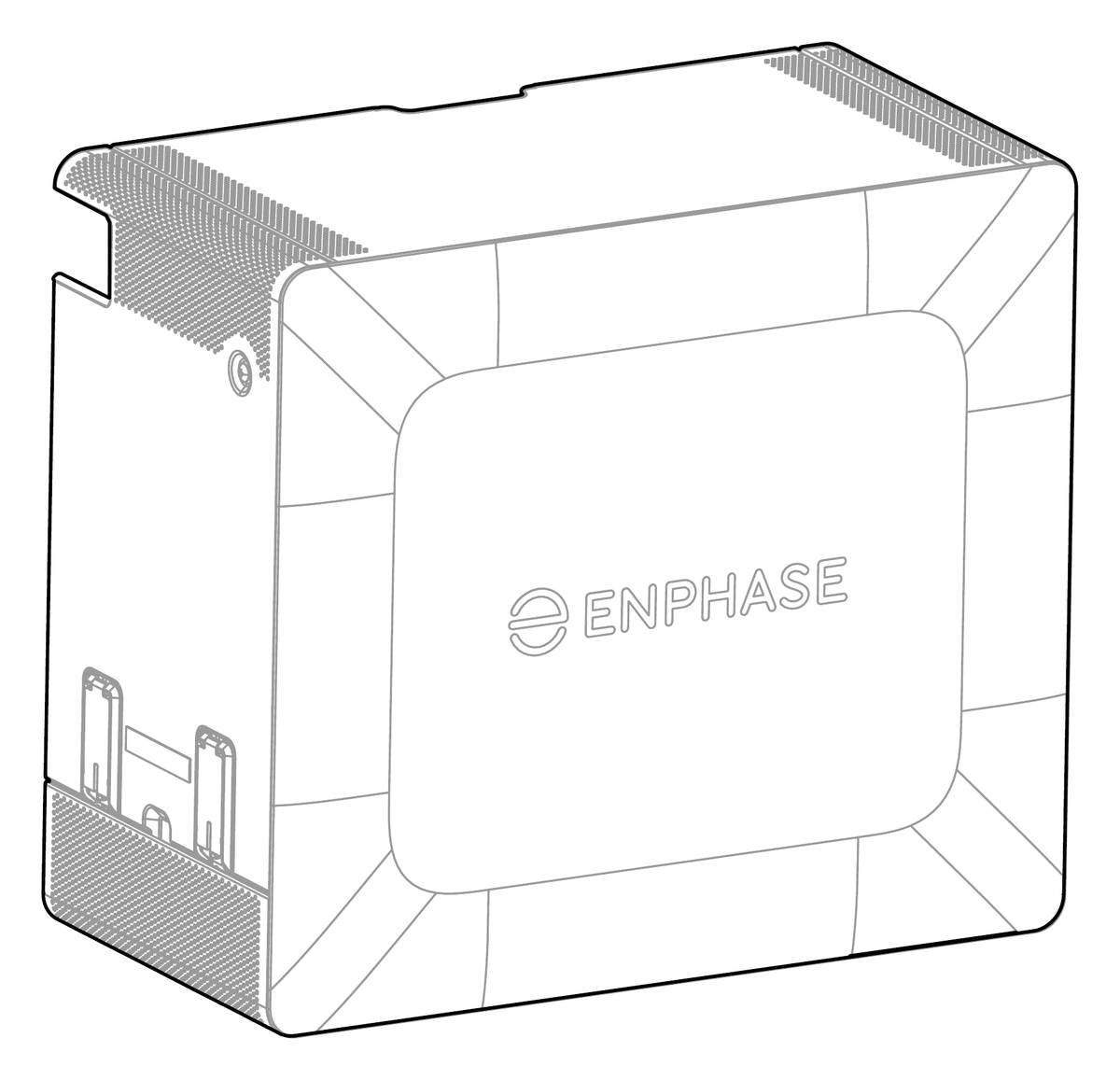

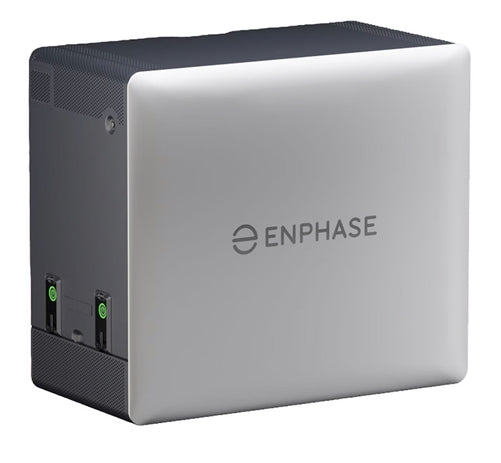

The Enphase B10C-NC-0708-O is the IQ Battery 10C cover kit. It is the part that joins two 5.0 kWh battery units (B05-C01-US00-1-3) into one finished IQ Battery 10C. The kit includes the front cover plus the cables that connect the two battery units inside: an interconnect power cable and an interconnect control cable.
When Enphase ships a complete IQ Battery 10C, it comes in three boxes: two battery units and this cover kit. Order the cover kit separately when you are building a 10C from separate line items.
Best For
- Completing an IQ Battery 10C: Two 5.0 kWh battery units plus this cover kit make one IQ Battery 10C.
- Project bills of materials: For permit sets and parts lists that show the 10C's unit and cover kit SKUs separately.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Cover kit with interconnect cables for the Enphase IQ Battery 10C |
| Manufacturer part number | B10C-NC-0708-O (standard). Enphase also lists a domestic-content version, B10C-NC-0708-O-DOM. |
| Used in | IQ Battery 10C (IQBATTERY-10C-1P-NA): 1 cover kit + 2 battery units (B05-C01-US00-1-3) |
| Cover | One cover for the IQ Battery 10C |
| Interconnect power cable | One cable assembly that connects the two battery units internally |
| Interconnect control cable | One cable assembly that connects the two battery units internally, with one preinstalled control connector (without a resistor) |
| Other parts in the box | One spare control connector with a resistor, two raceway adapters for routing cables between the units, two cable holders, left and right conduit covers for unused openings, four cover locking screws, and a quick install guide |
What You May Also Need
Usually required
- Two IQ Battery 10C 5.0 kWh battery units: The cover kit finishes a pair of battery units into one IQ Battery 10C.
- Enphase IQ Combiner 6C and IQ Meter Collar: Enphase's 10C quick install guide says the system requires both for backup operation.
May be required
- IQ Battery 10C Pedestal Mount: For floor mounting on a pedestal instead of a wall.
Optional upgrades
- Complete IQ Battery 10C kit: If you'd rather order the whole battery as one SKU.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Only for the IQ Battery 10C. Enphase lists this kit as part of the IQ Battery 10C's two-unit design. Don't plan to use it with other batteries.
- Replacing only the cover? Enphase lists a separate replacement cover, B10C-CX-0709-O, for field replacement.
- Installation. Install following Enphase's IQ Battery 10C quick install guide and electrical code.
