Enphase IQ Battery 10C Pedestal Mount – B10C-PI-0550-O
SKUB10C-PI-0550-O

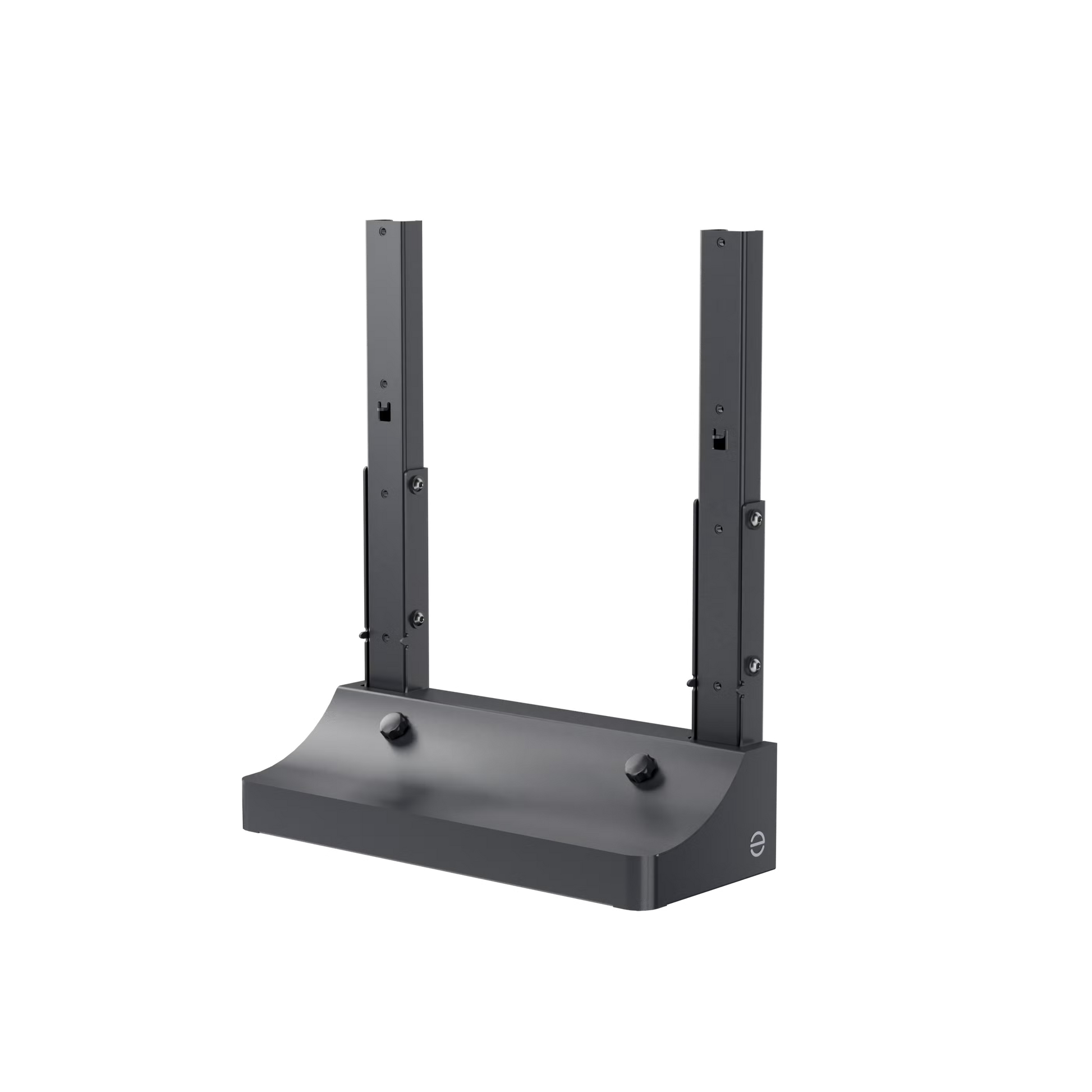

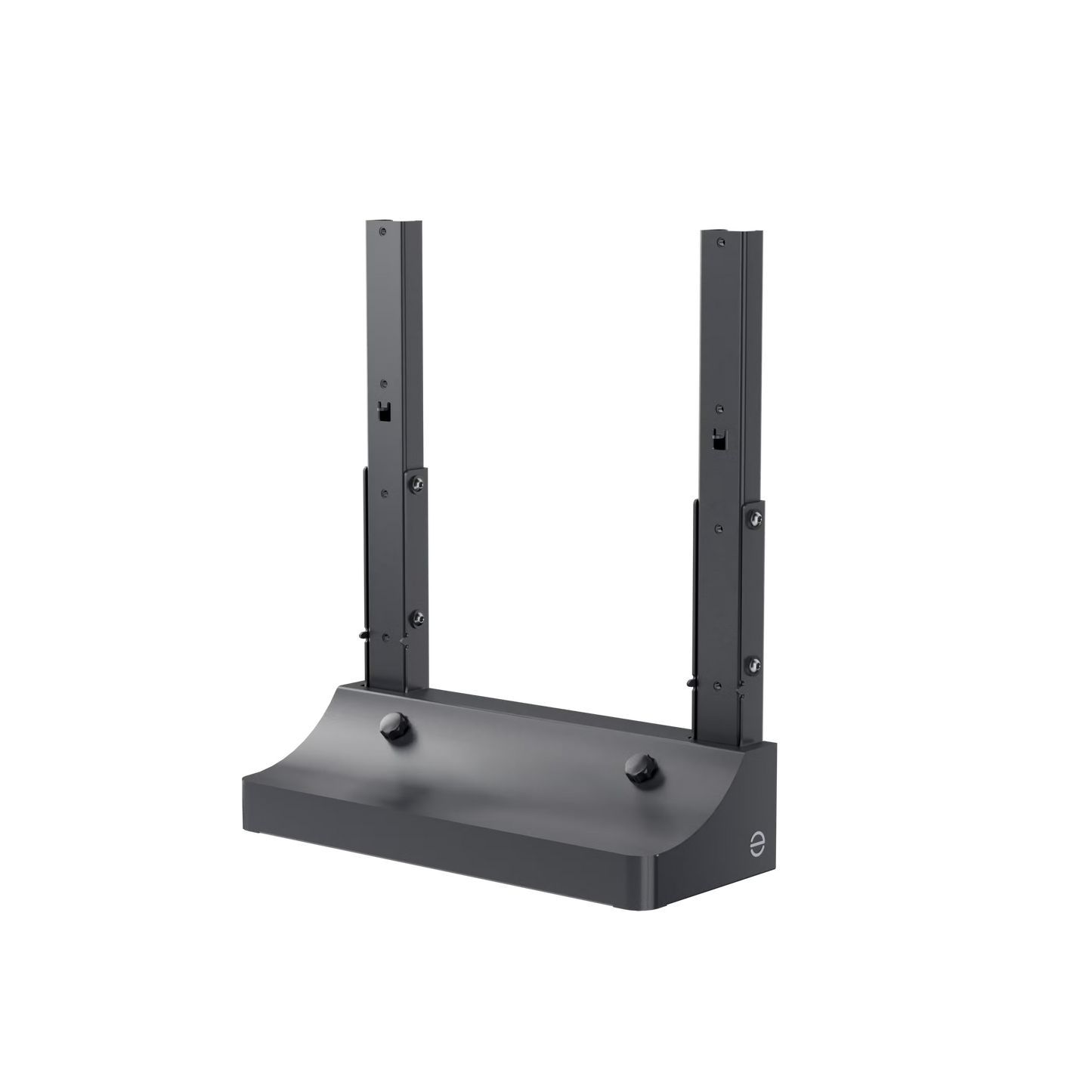

The Enphase IQ Battery 10C Pedestal Mount (B10C-PI-0550-O) is a metal stand that holds one IQ Battery 10C on the floor instead of on a wall. Enphase describes it as a sturdy metal pedestal for mounting one IQ Battery 10C to the...
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping weight 20.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview
The Enphase IQ Battery 10C Pedestal Mount (B10C-PI-0550-O) is a metal stand that holds one IQ Battery 10C on the floor instead of on a wall. Enphase describes it as a sturdy metal pedestal for mounting one IQ Battery 10C to the floor, and says the kit includes all parts required to assemble the pedestal.
The IQ Battery 10C normally hangs on a wall using the brackets in its box. The pedestal is an alternative when wall mounting isn't practical. The pedestal bolts to a concrete floor, and Enphase's guide says it can be used indoors or outdoors.
Best For
- Garage floor installs: Set an IQ Battery 10C on a smooth, flat concrete garage floor.
- Outdoor concrete pads: Enphase's pedestal guide says the mount is suitable for indoor and outdoor environments on a level floor.
- Sites where wall mounting isn't practical: Mount the battery on a floor pedestal instead of on a wall. The finished battery weighs 317 lb installed.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Floor pedestal mount for one Enphase IQ Battery 10C |
| Manufacturer part number | B10C-PI-0550-O |
| Fits | IQ Battery 10C (one battery per pedestal), per Enphase |
| What's in the box | 2 pedestal brackets, 2 L-brackets, 1 pedestal cover, 1 drill template, 2 L-bracket screws, 2 star knob nuts, 8 M8 wall bracket mounting screws, 8 M8 flat washers, quick install guide |
| Dimensions | 675 mm long × 245 mm wide × 400 mm high (about 26.6 × 9.6 × 15.7 in) |
| Weight | 12.16 kg (about 26.8 lb) |
| Floor | Smooth, flat concrete. Expansion anchors need at least 5 in of concrete; threaded rod with epoxy needs at least 4 in. |
| Recommended anchors (not included) | 1/2 in × 4-1/2 in stainless expansion anchors (Hilti KB-TZ2 SS316 or equivalent), or 1/2 in × 4-1/2 in stainless threaded rod with epoxy. Bolts must not be longer than 4.5 in. |
| Height off the floor | About 6 in from the floor to the bottom of the battery |
| Clearances | At least 15 in clear in front; 4 in minimum on the sides per UL 9540A (Enphase recommends 8 in for servicing) |
What You May Also Need
Usually required
- Enphase IQ Battery 10C: The pedestal holds one complete 10C.
- Concrete anchor bolts: Enphase says installers must supply the anchor bolts. Use the recommended type or an equivalent, no longer than 4.5 in.
May be required
- Leveling washers: If the floor is uneven, Enphase allows extra washers that match the anchor bolts.
- Vehicle impact protection: Enphase notes local rules may require protection from vehicles in places like garages.
Optional upgrades
- Enphase IQ Combiner 6C and IQ Meter Collar: If you are still building the system, Enphase's 10C quick install guide says both are required for backup operation.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- For the IQ Battery 10C only. Enphase lists this pedestal for the IQ Battery 10C. The IQ Battery 5P has its own pedestal (B05-PI-0550-O).
- Concrete only, with enough thickness. The pedestal anchors into concrete at least 4 or 5 in thick, depending on the anchor type.
- Anchor length limit. Bolts longer than 4.5 in can hit the pedestal cover.
- Certified installer. Enphase says only Enphase-certified installers should install, troubleshoot or replace the pedestal mount.
- Codes. Follow national and local electrical and building codes, including spacing rules for battery systems.
