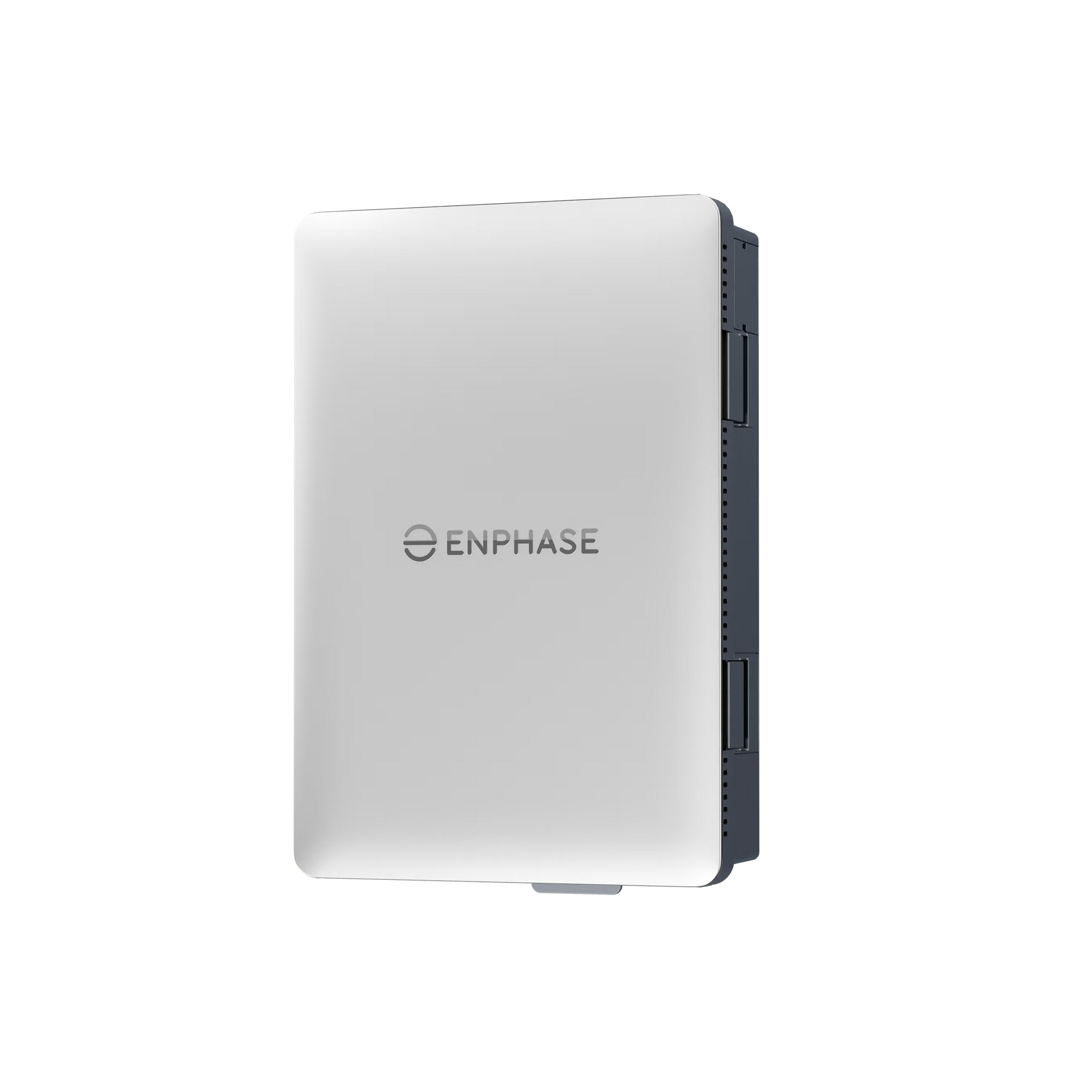

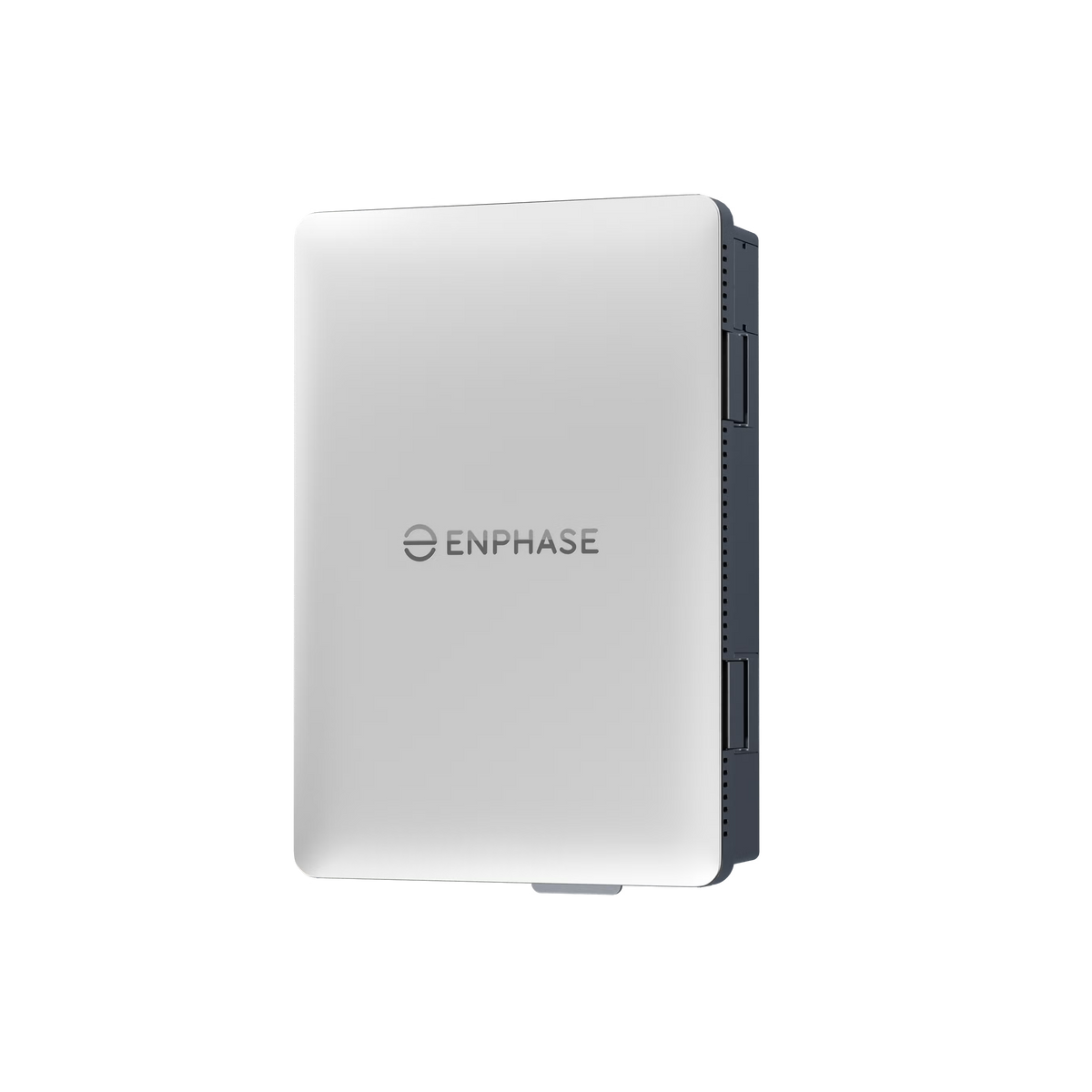

Enphase IQ Combiner 6C – X-IQ-AM1-240-6C
SKU6CX-IQ-AM1-240-6C

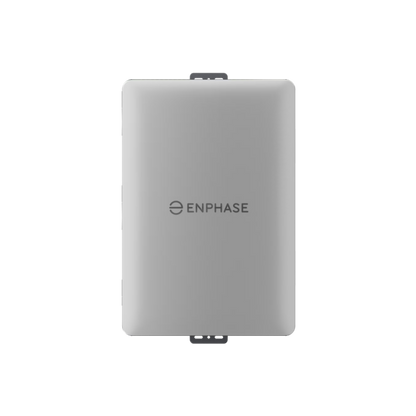

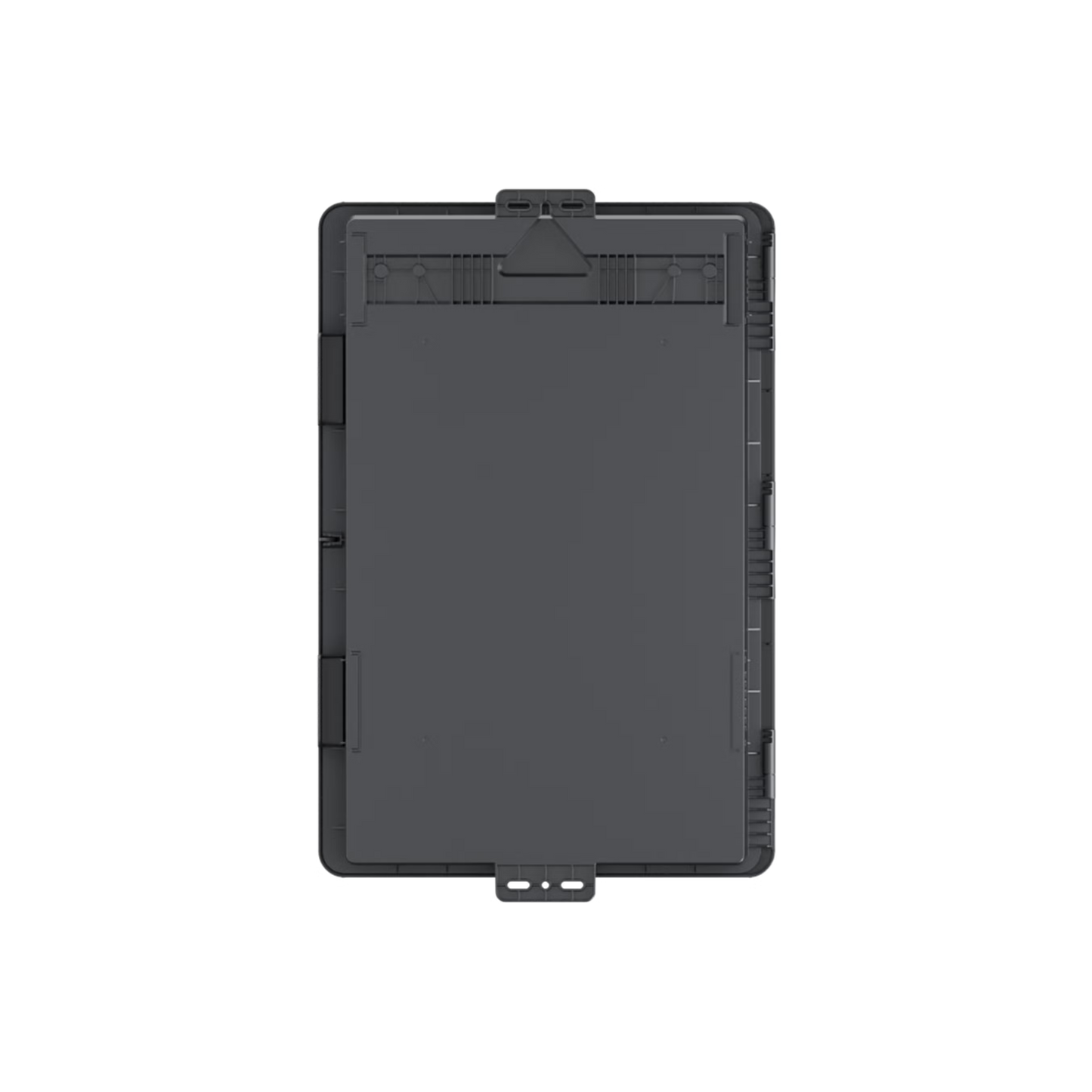

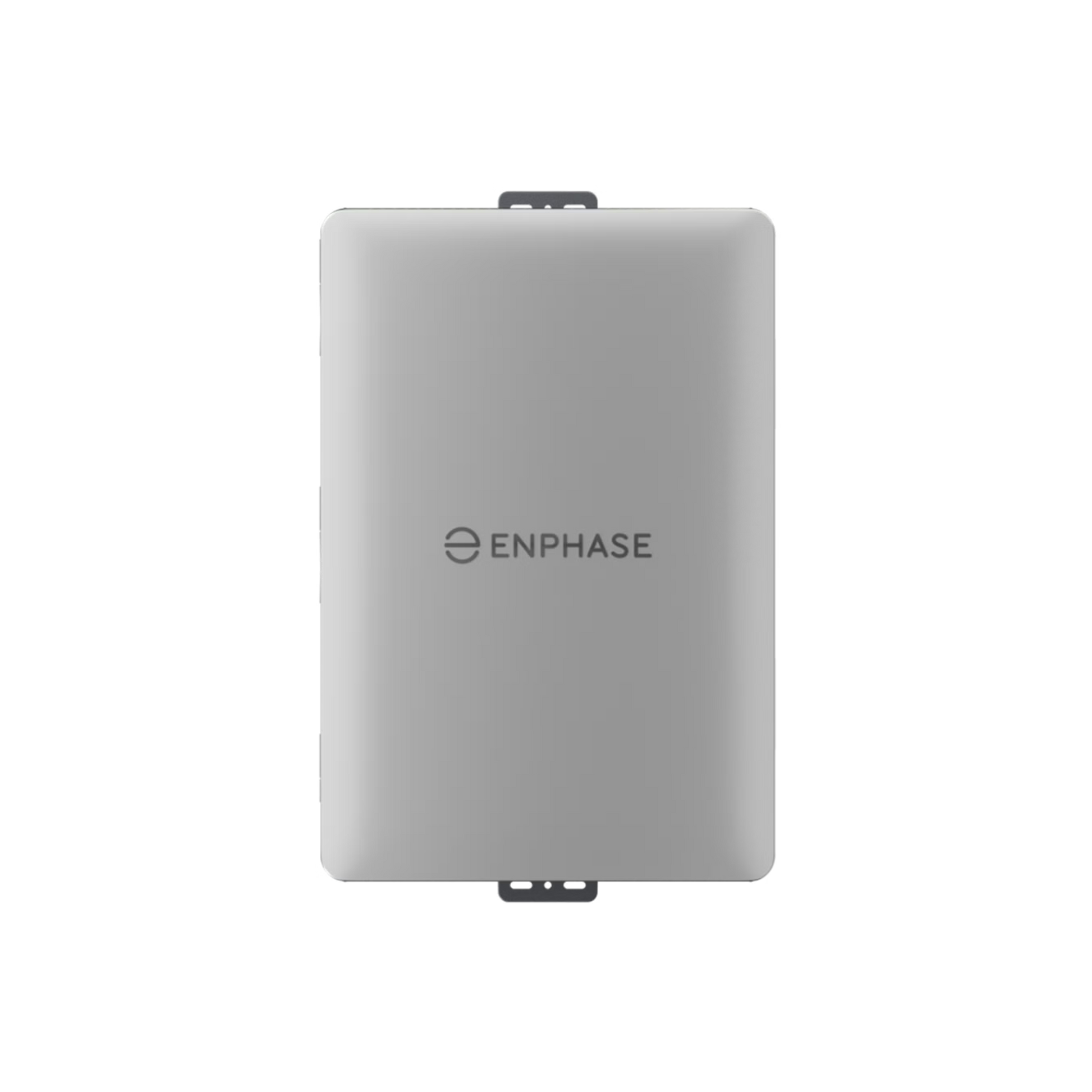

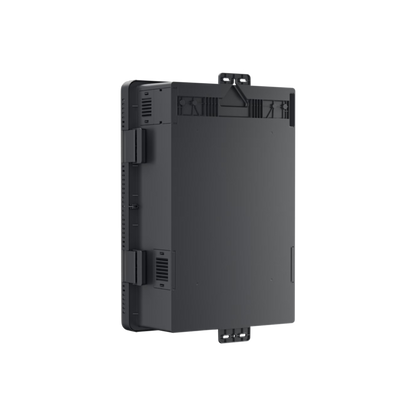

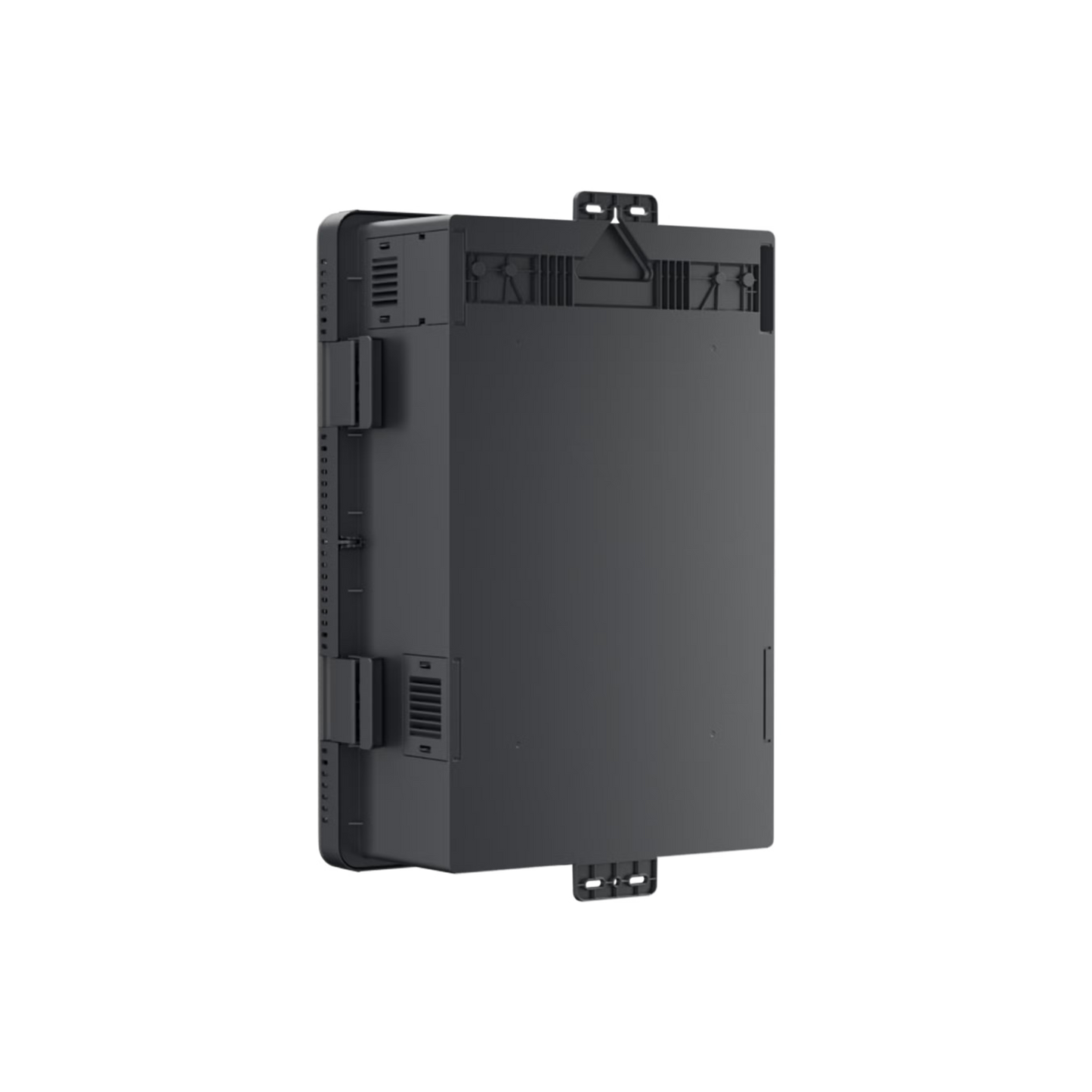

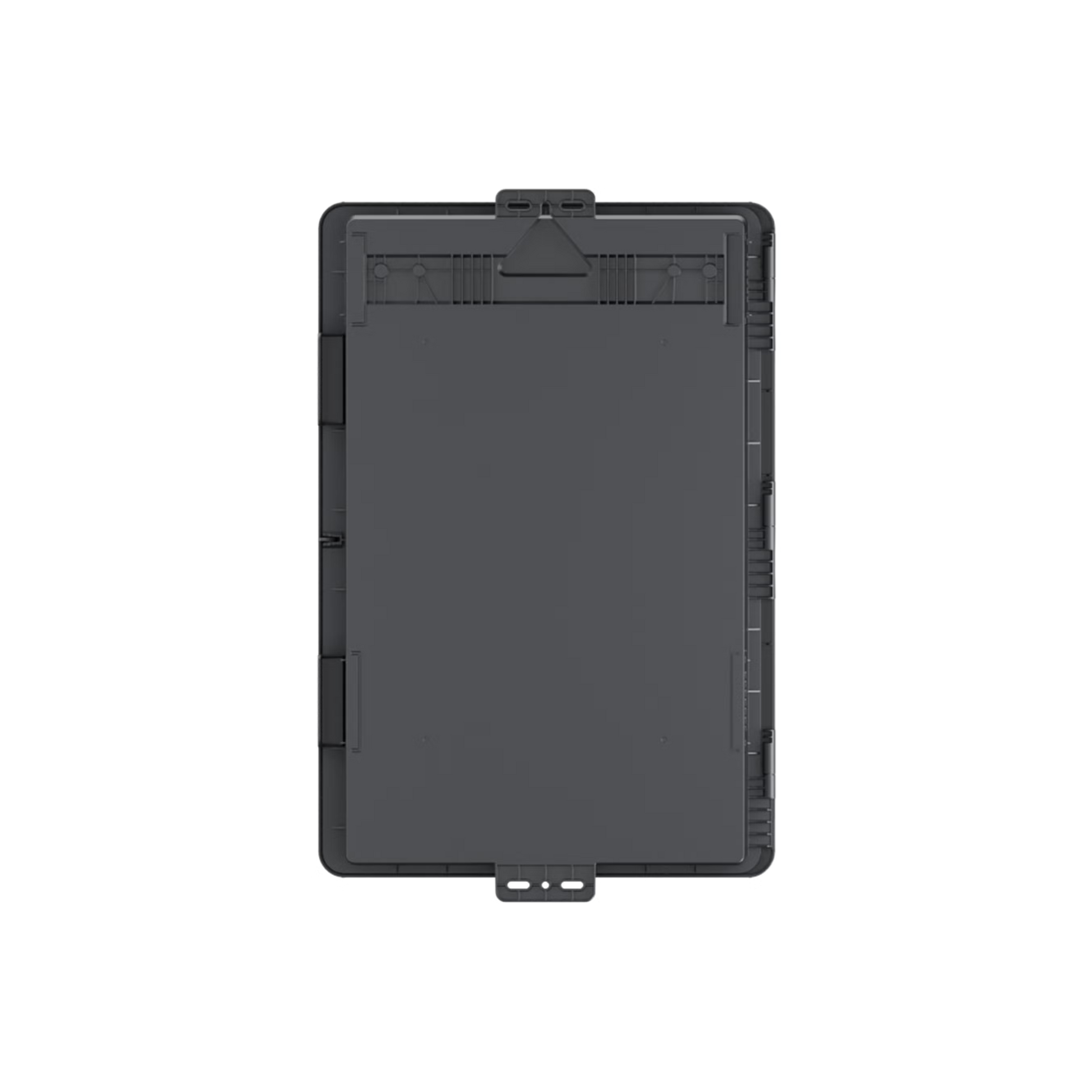

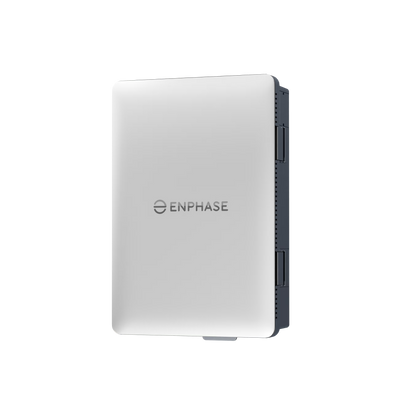

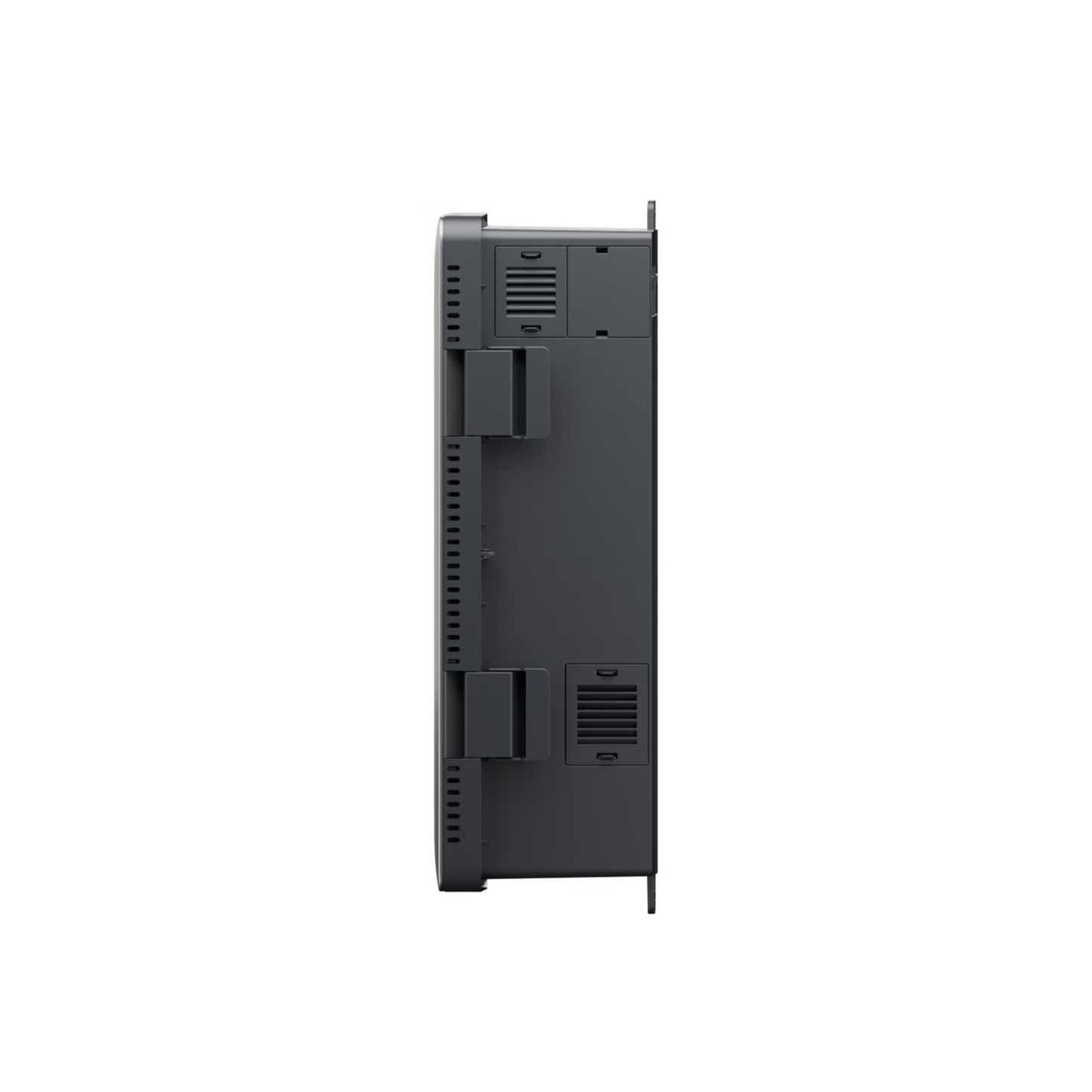

The Enphase IQ Combiner 6C (model X-IQ-AM1-240-6C) consolidates PV, battery, EV charger, and load-controller interconnection in one NEMA 3R enclosure with an integrated IQ Gateway, combiner controller board, cellular modem, and pre-wired CTs.
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping weight 50.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview
The Enphase IQ Combiner 6C (model X-IQ-AM1-240-6C) consolidates PV, battery, EV charger, and load-controller interconnection in one NEMA 3R enclosure with an integrated IQ Gateway, combiner controller board, cellular modem, and pre-wired CTs.
It is aimed at residential Enphase Energy Systems that need a pre-wired point of interconnection with revenue-grade production and storage metering. It is not service-entrance rated and does not support generator integration or fully off-grid (no utility) systems.
Best For
- Residential IQ Series installs with IQ Battery 10C that need combined PV/battery/EVSE spaces and integrated cellular.
- Sites that want a factory Rapid Shutdown initiator option via the pre-installed aggregate PV breaker when the combiner is outdoors and readily accessible.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | IQ Combiner 6C with integrated IQ Gateway |
| Model number | X-IQ-AM1-240-6C |
| Ordering note | Enphase ordering SKU X-IQ-AM1-240-6C (use model number for interconnection paperwork) |
| Nominal voltage | 240 VAC split-phase (±20%); L-N 120 V |
| Nominal frequency | 60 Hz (56–63 Hz) |
| Max continuous PV current | 80 A |
| Max continuous battery current | 2 × 59 A |
| Max continuous EVSE current | 1 × 48 A |
| Max continuous DER current | 160 A |
| Max continuous integrated load controller | 64 A |
| Max continuous backfeed | 100 A |
| Aggregate PV breaker | Ships with 60 A UL 489 breaker (usable as RSD initiator when installed outdoors and readily accessible); max aggregate PV breaker rating 100 A |
| Cellular | CELLMODEM-07-NA with 5-year data plan included |
| Enclosure | Outdoor NEMA 3R |
| Ambient temperature | −40°C to 46°C (−40°F to 115°F) |
| Dimensions / weight | 26.77 in × 18.11 in × 8.66 in; ~18 kg (40 lb) |
| Warranty (datasheet) | 15-year limited (Mobile Connect 5 years) |
| Source | Enphase IQ Combiner 6C North America datasheet DSH-00585-4.0 (DSH-00585-4.0-EN-2025-08-25) |
What You May Also Need
Usually required
- Branch breakers for PV, battery, and EVSE spaces as required (hold-down functionality is integrated).
- Internet via Wi-Fi or Ethernet in addition to cellular when batteries are present (Enphase requires Wi-Fi or Ethernet for battery systems; cellular is backup).
May be required
- IQ Combiner 6C-3BRK if you want the variant that ships with pre-installed PV/battery breakers.
- CTRL-SC3-NA-01 when wired CTRL is part of the design.
- Combiner Boxes: Other combiner options.
Optional upgrades
- Optional CT-200-CLAMP for EVSE or extra consumption metering per the datasheet accessories.
- IQ Meter Collar when full-home backup metering is specified.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Americas datasheet Compatibility lists IQ Battery 10C, IQ Meter Collar, and IQ6/IQ7/IQ8 Series Microinverters. Third-party or legacy Enphase PV is only supported through the integrated load controller path (integrated gateway does not support legacy/third-party PV directly).
- This is the base IQ Combiner 6C (X-IQ-AM1-240-6C). It ships with the 60 A aggregate PV breaker; PV, battery and EV branch breakers are ordered separately. The 6C-3BRK variant adds factory PV and battery breakers.
- Professional installation required. Follow Enphase instructions and the NEC.
