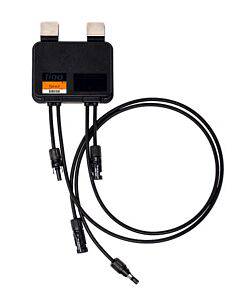

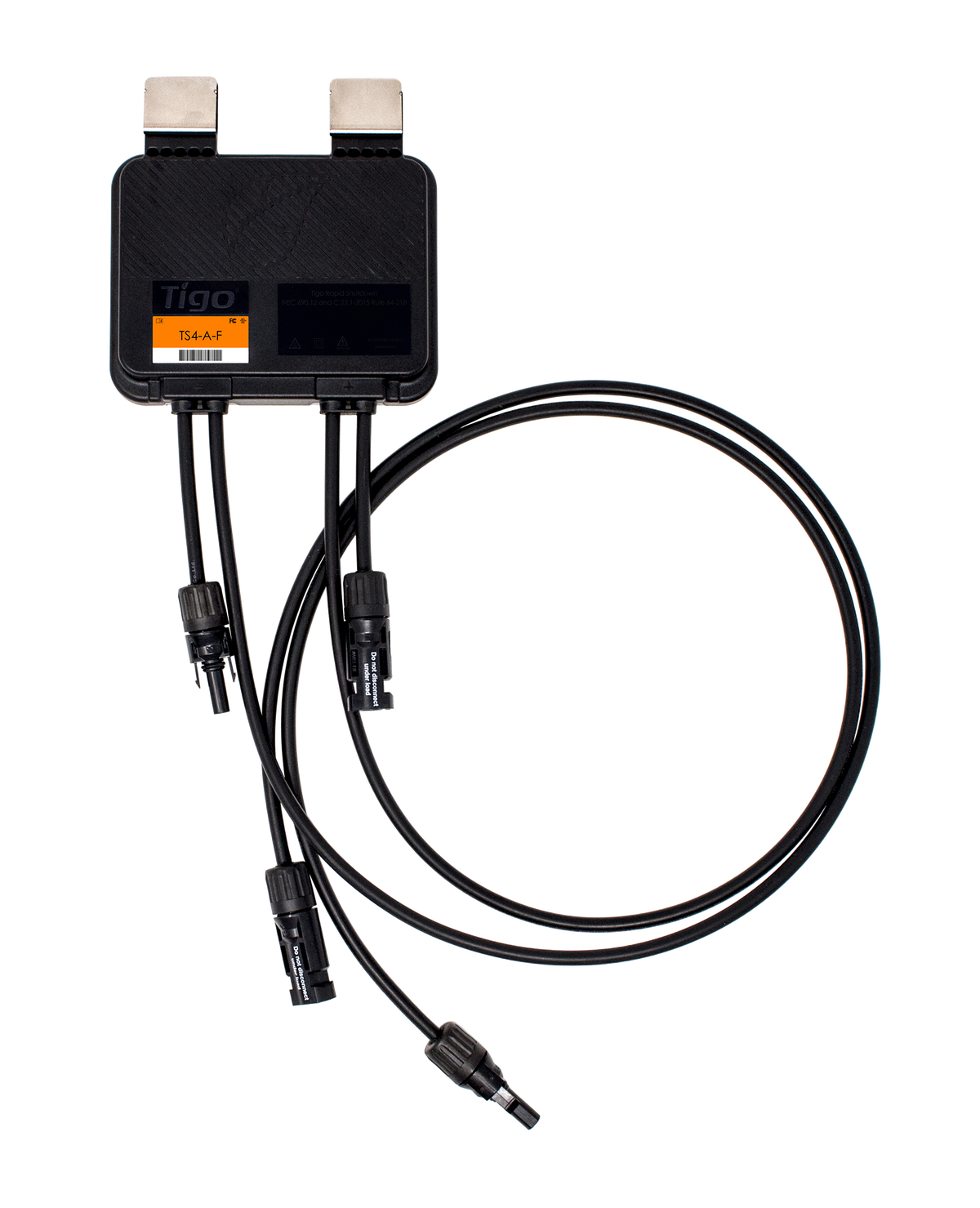

Tigo TS4-A-F Module-Level Fire Safety with Rapid Shutdown
Tigo TS4-A-F Module-Level Fire Safety with Rapid Shutdown
Couldn't load pickup availability
Product Overview
The Tigo TS4-A-F is a module-level rapid shutdown device for one PV module, part of Tigo's Fire Safety line. The TS4-A-F complies with NEC 2017, 2020, and 2023 690.12 Rapid Shutdown specifications when installed with the Tigo RSS Transmitter or an inverter with a built-in Tigo certified transmitter (Tigo TS4-A-F Datasheet 002-00093-00 Rev 3.5).
Tigo makes TS4-A-F versions with different current, power and cable options. The rows below are the ones Tigo's current TS4-A-F datasheets share; check the part number on the unit for its current and power ratings.
Best For
- Module-level rapid shutdown, one module per unit: With a Tigo RSS Transmitter or an inverter with a built-in Tigo certified transmitter.
- Adding rapid shutdown to standard PV modules: Tigo says the unit snaps to a standard PV module frame or mounts to racking.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Module-level rapid shutdown MLPE, one module |
| Maximum input voltage (per Tigo) | 80 V |
| Rapid shutdown time limit (per Tigo) | <30 sec. |
| PVRSE-controlled conductor limits (per Tigo) | ≤240 VA, ≤8 A, ≤30 VDC |
| UL 1741-compliant PVRSE (per Tigo) | Yes |
| TS4 conductor (per Tigo) | 12 AWG |
| Connectors (per Tigo) | MC4/EVO2, depending on part number |
| Dimensions (per Tigo) | 139.7 × 138.4 × 22.9 mm |
| Outdoor IP rating (per Tigo) | IP68 |
| Warranty (per Tigo) | 25 years |
| Source | Tigo TS4-A-F Datasheet 002-00093-00 Rev 3.5 (Dec 2024); Tigo TS4-A-F 725W Datasheet 002-00222-00 Rev 1.1 (Jul 2025) |
What You May Also Need
Usually required
- A Tigo RSS Transmitter or an inverter with a built-in Tigo certified transmitter: See the Tigo 492-00000-51 outdoor transmitter kit.
- One unit per module.
May be required
- Rapid shutdown labels: For example PV Labels 05-523 (2023 NEC).
- Other rapid shutdown parts: See rapid shutdown.
Optional upgrades
- Two modules per unit: See the TS4-A-2F.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Check the ratings on your unit. Maximum output current, maximum power and system voltage differ between TS4-A-F part numbers in Tigo's datasheets.
- Inverter list. For inverters with a built-in Tigo certified transmitter, check the Tigo UL PVRSS certified inverter list (tigoenergy.com/ul-pvrss), viewed Oct 8, 2026; no revision number.
- Wait 30 seconds. Tigo's RSS IOM says to wait 30 seconds after rapid shutdown activation before disconnecting DC cables.
- Inverter pairing. Do not assume a specific string inverter, hybrid inverter or microinverter model is listed. Check the maker's current certified list and the document revision or view date before design.
