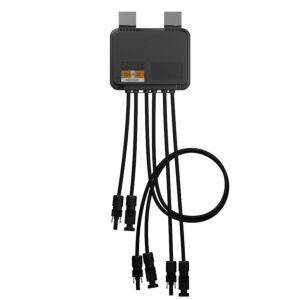

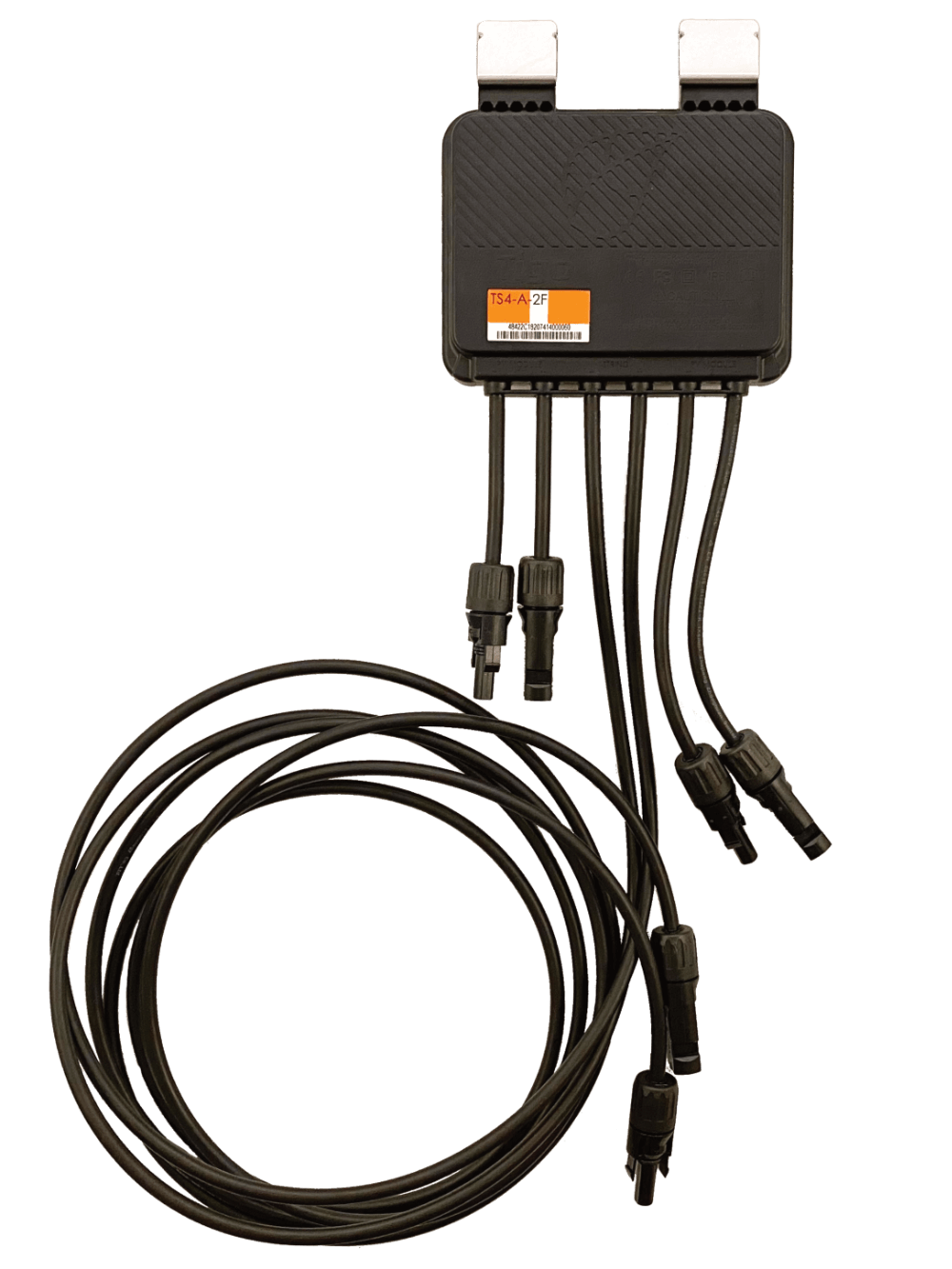

Tigo TS4-A-2F Module-Level Fire Safety with Rapid Shutdown, 2.2m MC4 Cables
SKUTS4-A-2F
The Tigo TS4-A-2F is a module-level rapid shutdown device that serves two PV modules, part of Tigo's Fire Safety line. This listing has 2.2 m MC4 output cables. The TS4-A-2F complies with NEC 2017, 2020, and 2023 690.12 Rapid Shutdown specifications when...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.8 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Tigo TS4-A-2F is a module-level rapid shutdown device that serves two PV modules, part of Tigo's Fire Safety line. This listing has 2.2 m MC4 output cables. The TS4-A-2F complies with NEC 2017, 2020, and 2023 690.12 Rapid Shutdown specifications when installed with the Tigo RSS Transmitter or an inverter with a built-in Tigo certified transmitter (Tigo TS4-A-2F Datasheet 002-00092-00 Rev 2.9).
Tigo makes TS4-A-2F versions with different current and power ratings. The rows below are the ones those versions share; check the part number on the unit for its current and power ratings.
Best For
- Module-level rapid shutdown, two modules per unit: With a Tigo RSS Transmitter or an inverter with a built-in Tigo certified transmitter.
- Layouts that need 2.2 m output leads: Tigo lists 2.2 m and 2.4 m output options.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Module-level rapid shutdown MLPE, two modules (2 inputs) |
| Voltage range (VMP) per input (per Tigo) | 16–80 V |
| Rapid shutdown time limit (per Tigo) | <30 sec. |
| PVRSE-controlled conductor limits (per Tigo) | ≤240 VA, ≤8 A, ≤30 VDC |
| UL 1741-compliant PVRSE (per Tigo) | Yes |
| TS4 conductor (per Tigo) | 12 AWG |
| Cables (2.2 m MC4 part numbers, per Tigo) | Inputs 0.1 m and 0.2 m; output 2.2 m; MC4 |
| Dimensions; weight (per Tigo) | 139.7 × 138.4 × 22.9 mm; 590 g (1.3 lb) |
| Outdoor IP rating (per Tigo) | IP68/NEMA 3R |
| Standards compliance (as worded by Tigo) | UL 1741 PVSRE, UL 1741 PVRSS, CSA 22.2, IEC 62109, NEC 690.12 |
| Warranty (per Tigo) | 25 years |
| Source | Tigo TS4-A-2F Datasheet 002-00092-00 Rev 2.9 (Mar 20, 2026) |
What You May Also Need
Usually required
- A Tigo RSS Transmitter or an inverter with a built-in Tigo certified transmitter: See the Tigo 492-00000-51 outdoor transmitter kit.
- One unit per two modules.
May be required
- Rapid shutdown labels: For example PV Labels 05-523 (2023 NEC).
- Other rapid shutdown parts: See rapid shutdown.
Optional upgrades
- One module per unit: See the TS4-A-F.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Check the ratings on your unit. Maximum output current (15 A or 20 A class) and maximum power differ between TS4-A-2F part numbers in Tigo's datasheet.
- Inverter list. For inverters with a built-in Tigo certified transmitter, check the Tigo UL PVRSS certified inverter list (tigoenergy.com/ul-pvrss), viewed Oct 8, 2026; no revision number.
- Wait 30 seconds. Tigo's RSS IOM says to wait 30 seconds after rapid shutdown activation before disconnecting DC cables.
- Inverter pairing. Do not assume a specific string inverter, hybrid inverter or microinverter model is listed. Check the maker's current certified list and the document revision or view date before design.
