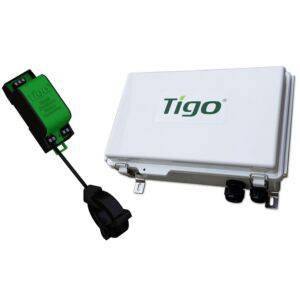

Tigo RSS Transmitter Kit, Single Core, DIN Rail, Outdoor – 492-00000-51
SKU492-00000-51
The Tigo 492-00000-51 is the single-core RSS Transmitter outdoor kit for Tigo Fire Safety MLPE (TS4-A-F and TS4-A-2F). Tigo's RSS datasheet orders it as "Single core, RSS transmitter, DIN rail, 120/240VAC power source, outdoor enclosure".
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 2.5 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Tigo 492-00000-51 is the single-core RSS Transmitter outdoor kit for Tigo Fire Safety MLPE (TS4-A-F and TS4-A-2F). Tigo's RSS datasheet orders it as "Single core, RSS transmitter, DIN rail, 120/240VAC power source, outdoor enclosure".
While powered, the transmitter sends a power-line (PLC) keep-alive signal through a core around the PV string conductors, so the TS4 units stay on. When transmitter power is removed, the TS4 units enter rapid shutdown. Tigo's RSS IOM says each TS4 then drops its output to 0.6 V.
Tigo's RSS datasheet says the transmitter meets NEC 690.12 2017, 2020, and 2023 requirements as part of a rapid shutdown solution with Tigo TS4-A-F/2F MLPE.
Best For
- Tigo TS4-A-F or TS4-A-2F arrays that need an external RSS transmitter: Where the inverter does not already include a built-in Tigo certified transmitter.
- Outdoor mounting: The kit includes an outdoor enclosure. Tigo's IOM says bare RSS transmitters are NEMA 1 (indoor) rated.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | PLC rapid-shutdown transmitter outdoor kit, single core |
| Part number | 492-00000-51 (Tigo RSS Datasheet ordering information) |
| Transmitter input (per Tigo) | 12 VDC ±2%, 1 A; 5.5 W max / 0.85 W average |
| Core ratings (per Tigo) | 160 A maximum per core; 1500 VDC maximum string voltage |
| Strings and modules (per Tigo) | Up to 10 strings per core; up to 30 PV modules per string |
| Synced transmitters (per Tigo) | Up to 10 |
| Transmitter operating temperature (per Tigo) | −40 to 85°C (−40 to 185°F) |
| Kit enclosure (per Tigo) | IP67-rated outdoor enclosure |
| Power source (per Tigo ordering information) | 120/240 VAC |
| NEC 690.12 (per Tigo) | Meets NEC 690.12 2017, 2020, and 2023 requirements |
| Source | Tigo RSS Datasheet 002-00146-00 Rev 1.4 (Apr 11, 2025); Tigo RSS Installation, Operation and Maintenance Manual 002-00118-00 Rev 4.4 (Aug 2025; PDF ModDate Jan 2026) |
What You May Also Need
Usually required
- TS4-A-F and/or TS4-A-2F units on the modules: See TS4-A-F and TS4-A-2F. The transmitter alone does not shut down modules.
- A 120/240 VAC supply on the inverter's AC branch circuit.
May be required
- Rapid shutdown labels: Tigo's IOM says to place an RSS label within 1 m (3 ft) of the RSS transmitter. NEC-year packs include PV Labels 05-523 (2023 NEC).
- Other rapid shutdown parts: See rapid shutdown.
Optional upgrades
- Dual core: Tigo orders the dual-core outdoor kit as 492-00000-52.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Same AC branch circuit. Tigo's RSS IOM says the transmitter control power supply MUST be on the same AC branch circuit as the inverter.
- Wait 30 seconds. Tigo's RSS IOM says to wait 30 seconds after rapid shutdown activation before disconnecting DC cables.
- Core routing. Route string conductors through the core as Tigo's current IOM shows, and do not separate the positive and negative conductors from the same string (Tigo IOM).
- Inverter list. For inverters with a built-in Tigo certified transmitter, check the Tigo UL PVRSS certified inverter list (tigoenergy.com/ul-pvrss), viewed Oct 8, 2026; no revision number.
- Inverter pairing. Do not assume a specific string inverter, hybrid inverter or microinverter model is listed. Check the maker's current certified list and the document revision or view date before design.
