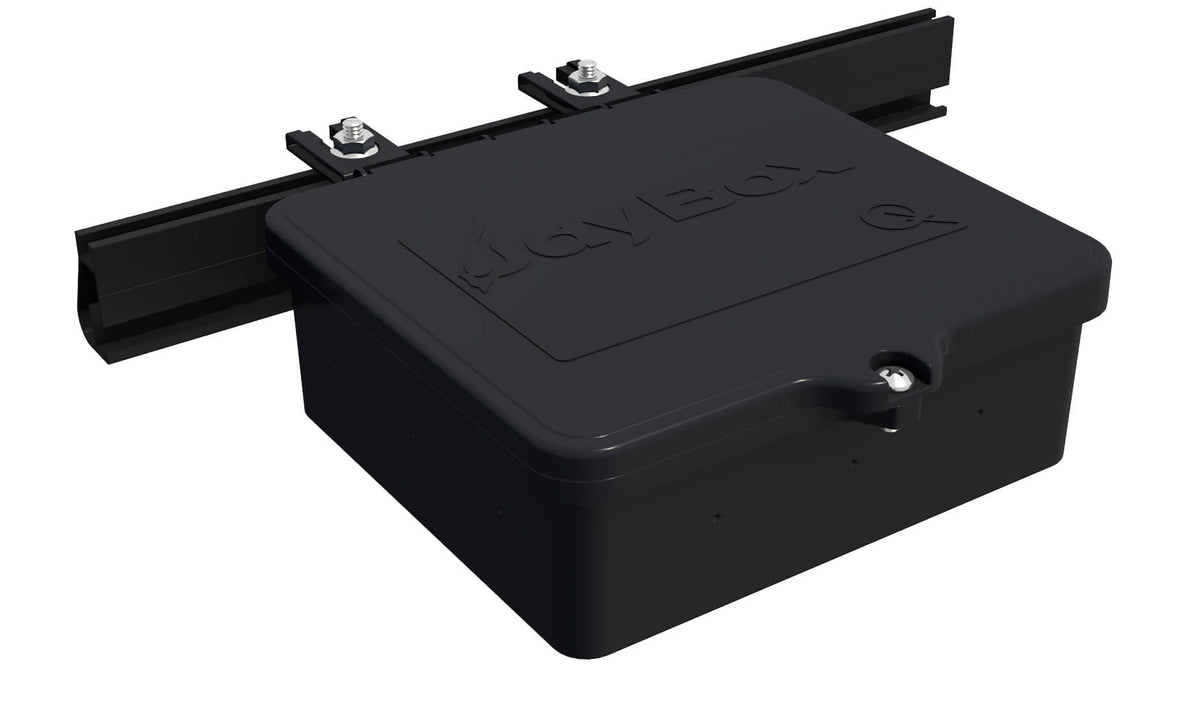

Quick Mount PV JayBox Junction Box, Rail Mount – QM-JBX-RL02-B1
SKUQM-JBX-RL02-B1

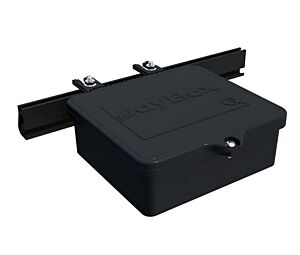

The IronRidge QuickMount JayBox (QM-JBX-RL02-B1) is a photovoltaic junction box that mounts to the racking rail. IronRidge's Parts Catalog lists it as "JayBox Junction Box, Rail Mount" and notes: "Use Microinverter Hardware to attach to rails. Sold separately."
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.5 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The IronRidge QuickMount JayBox (QM-JBX-RL02-B1) is a photovoltaic junction box that mounts to the racking rail. IronRidge's Parts Catalog lists it as "JayBox Junction Box, Rail Mount" and notes: "Use Microinverter Hardware to attach to rails. Sold separately."
IronRidge molds the JayBox from SABIC NORYL resin. Its hinged lid stays open on roof slopes up to 70°, per IronRidge. Because the enclosure is nonconductive, IronRidge says there is no need to ground the box or its lid.
Best For
- Rail-mounted PV junction boxes: Transitioning array wiring at the rail, attached with IronRidge MLPE hardware.
- Arrays that need a Type 3R rooftop junction box: Up to 4 input circuits at 1500 V, per IronRidge.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Photovoltaic junction box, rail mount |
| Part number | QM-JBX-RL02-B1 |
| UL / CSA (as worded in IronRidge manual) | UL 1741 LISTED #5021605. Photovoltaic Junction Box Conforms to UL STD 1741 and Certified to CSA STD C22.2 No. 107.1 |
| Electrical ratings (per IronRidge) | 1500 V maximum system voltage; 100 A maximum total current (Isc); 30 A maximum per string (Isc); up to 4 input circuits, combined not to exceed 100 A |
| Enclosure rating (per IronRidge) | Type 3R Rainproof |
| Allowable wire sizes (per IronRidge) | Inputs 12–10 AWG; outputs 12–8 AWG; ground 10–6 AWG |
| Interior dimensions (per IronRidge) | 8" W × 8" D × 3" H; 150 in³ box volume |
| Included (per IronRidge cut sheet) | 7" DIN rail; ground bar kit with 4 terminals |
| Material (per IronRidge) | SABIC NORYL resin; nonconductive, so IronRidge says the box and lid need no grounding |
| Rail attachment (per IronRidge) | Rail-specific MLPE hardware, sold separately; 80 in-lbs per IronRidge manual |
| Torque (per IronRidge manual) | Grounding bar set screws 25 in-lbs; lid screw 50 in-lbs |
| Warranty (per IronRidge) | 10 years for electrical junction boxes, from shipment (IronRidge limited warranty and JayBox page) |
| Source | IronRidge JayBox Installation Manual, Version 1.6 (2025); IronRidge JayBox Cut Sheet, Rail Mount, Rev 1.0 (Dec 2022); IronRidge JayBox page, ironridge.com, retrieved Oct 8, 2026; IronRidge Parts Catalog, Version 3.66 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- MLPE / microinverter bonding hardware: IronRidge says to use Microinverter Hardware to attach the JayBox to rails, sold separately. See IronRidge MLPE T-Bolt Bonding Hardware (BHW-MI-01-A1).
- Conductors and listed wire connectors: Sized within IronRidge's allowable wire ranges and the NEC.
May be required
- Deck mounting instead: See the JayBox roof mount (QM-JBX-RF02-B1).
- Conduit flashing: See the IronRidge Conduit Penetration Flashing.
Optional upgrades
- Other junction boxes and conduit mounts: See junction boxes & conduit mounts.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Grounding. The box itself needs no grounding, per IronRidge. Equipment grounding conductors still land on the ground bar as the NEC requires.
- Wire. IronRidge's manual calls for #12–#8 AWG, min 90°C copper wire as required by the NEC, and #10–#6 AWG equipment grounding conductors.
- Licensed work. Install to the NEC edition your AHJ has adopted and the maker's current installation instructions.
