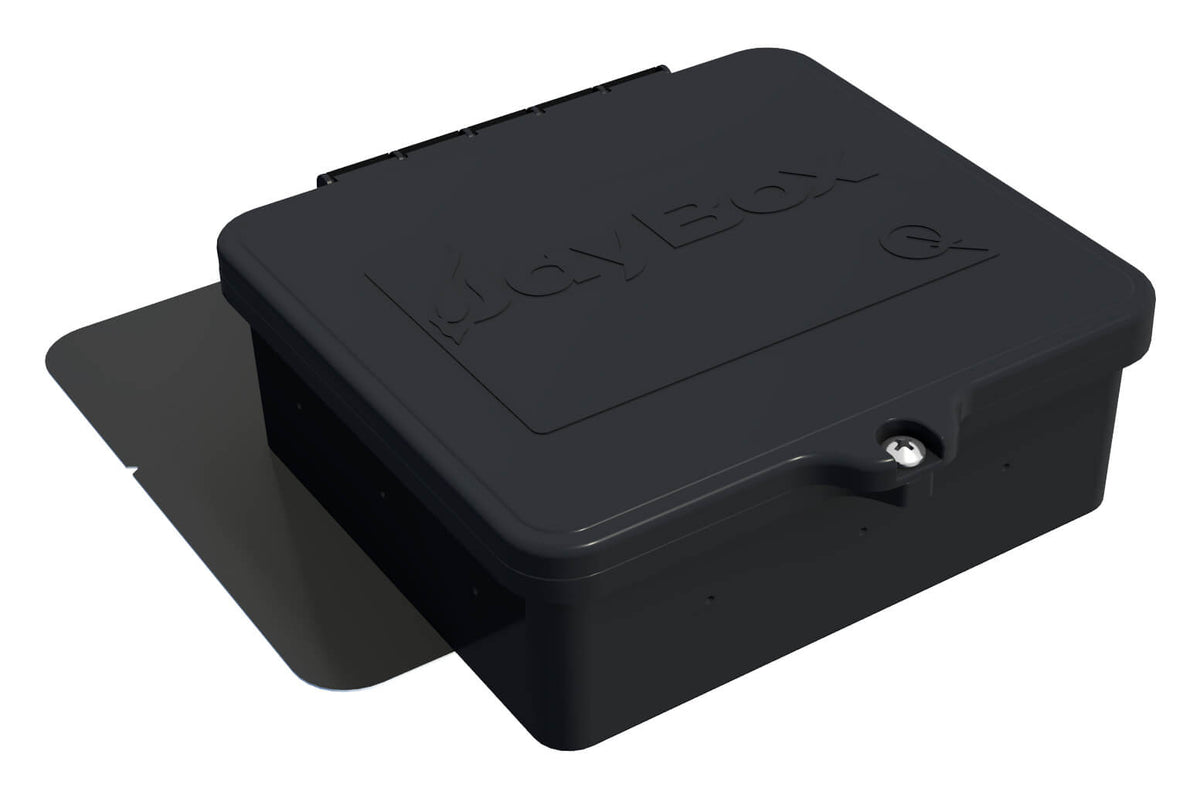

Quick Mount PV JayBox Junction Box, Comp Shingle Roof Mount – QM-JBX-RF02-B1
SKUQM-JBX-RF02-B1

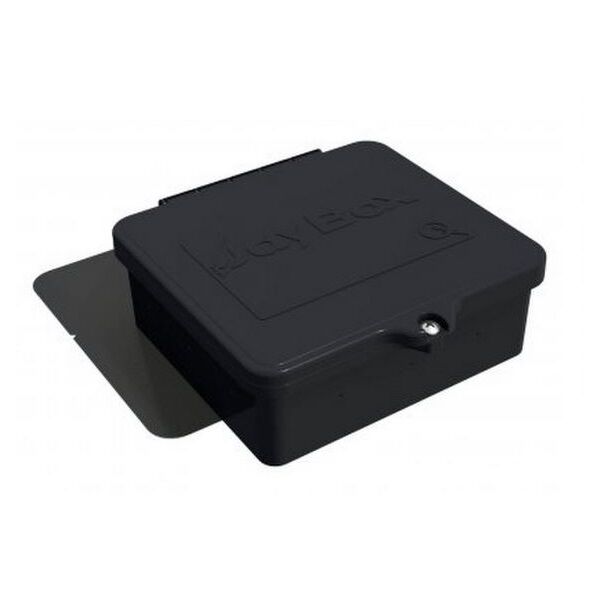

The IronRidge QuickMount JayBox (QM-JBX-RF02-B1) is the deck-mounted version of the JayBox photovoltaic junction box, made for composition shingle roofs. It comes with a black aluminum flashing and self-drilling wood screws, and allows a waterproof conduit pass-through into the attic, per IronRidge.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.68 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The IronRidge QuickMount JayBox (QM-JBX-RF02-B1) is the deck-mounted version of the JayBox photovoltaic junction box, made for composition shingle roofs. It comes with a black aluminum flashing and self-drilling wood screws, and allows a waterproof conduit pass-through into the attic, per IronRidge.
IronRidge molds the JayBox from SABIC NORYL resin. Its hinged lid stays open on roof slopes up to 70°, per IronRidge. Because the enclosure is nonconductive, IronRidge says there is no need to ground the box or its lid.
Best For
- Comp shingle roofs at 2:12 and steeper: IronRidge's roof slope range for the JayBox.
- Attic pass-through wiring: Up to 2 attic pass-through conduit fittings, 1/2" to 1-1/4", per IronRidge.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Photovoltaic junction box, comp shingle roof (deck) mount |
| Part number | QM-JBX-RF02-B1 |
| UL / CSA (as worded in IronRidge manual) | UL 1741 LISTED #5021605. Photovoltaic Junction Box Conforms to UL STD 1741 and Certified to CSA STD C22.2 No. 107.1 |
| Electrical ratings (per IronRidge) | 1500 V maximum system voltage; 100 A maximum total current (Isc); 30 A maximum per string (Isc); up to 4 input circuits, combined not to exceed 100 A |
| Enclosure rating (per IronRidge) | Type 3R Rainproof |
| Allowable wire sizes (per IronRidge) | Inputs 12–10 AWG; outputs 12–8 AWG; ground 10–6 AWG |
| Interior dimensions; flashing (per IronRidge) | Box 8" W × 8" D × 3" H, 150 in³; flashing 12" W × 9" D |
| Roof (per IronRidge) | Roof slope 2:12 and above; attic pass-through fittings 1/2"–1-1/4", max 2; max side wall fitting 1-1/4" |
| Water seal ratings (per IronRidge) | UL 441; TAS 100(A)-95 |
| Included (per IronRidge cut sheet) | Lid; housing; EPDM gasket; black 3000-series aluminum flashing; 2 self-drilling #12 wood screws; DIN rail; ground bar kit |
| Material (per IronRidge) | SABIC NORYL resin; nonconductive, so IronRidge says the box and lid need no grounding |
| Torque (per IronRidge manual) | Grounding bar set screws 25 in-lbs; lid screw 50 in-lbs |
| Warranty (per IronRidge) | 10 years for electrical junction boxes, from shipment (IronRidge limited warranty and JayBox page) |
| Source | IronRidge JayBox Installation Manual, Version 1.6 (2025); IronRidge JayBox Cut Sheet, Roof Mount, Rev 1.10 (2024); IronRidge JayBox page, ironridge.com, retrieved Oct 8, 2026; IronRidge Parts Catalog, Version 3.66 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- A comp shingle roof in good condition within IronRidge's slope range.
- Conductors and listed wire connectors: Sized within IronRidge's allowable wire ranges and the NEC.
May be required
- Rail mounting instead: See the JayBox rail mount (QM-JBX-RL02-B1).
- Conduit flashing: See the IronRidge Conduit Penetration Flashing.
Optional upgrades
- Other junction boxes and conduit mounts: See junction boxes & conduit mounts.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Attic pass-through. IronRidge says not to install attic pass-through holes without the flashing and self-drilling roofing screws, and not to install the box directly over a rafter when using the pass-through.
- Placement. IronRidge says to avoid keyways, shingle joints or tabs in the shingle course above the box.
- Grounding. The box itself needs no grounding, per IronRidge. Equipment grounding conductors still land on the ground bar as the NEC requires.
- Licensed work. Install to the NEC edition your AHJ has adopted and the maker's current installation instructions.
