IronRidge MLPE Bonding Hardware, 1/4-20 T-Bolt for XR Rails – BHW-MI-01-A1
SKUBHW-MI-01-A1
IronRidge MLPE bonding hardware (BHW-MI-01-A1) mounts a microinverter or power optimizer to an IronRidge XR rail and bonds it to the racking. IronRidge calls it Microinverter Bonding Hardware, or the Microinverter Kit.
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview
IronRidge MLPE bonding hardware (BHW-MI-01-A1) mounts a microinverter or power optimizer to an IronRidge XR rail and bonds it to the racking. IronRidge calls it Microinverter Bonding Hardware, or the Microinverter Kit.

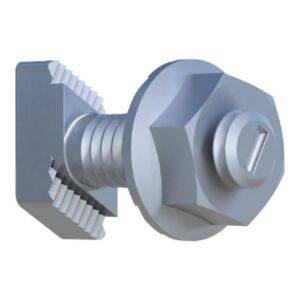

Each kit is a 1/4-20 × 0.75" stainless steel T-bolt with a 1/4-20 flange hex nut. The T-bolt drops into the top rail slot, and the nut tightens the device's mounting flange to the rail.
IronRidge publishes the devices approved for this mount in its XR Flush Mount manual. Some devices need one kit and others need two, depending on the mounting flange.
Best For
- Microinverters and optimizers on IronRidge XR rails: IronRidge's manual lists approved models from AP Systems, Enphase, Hoymiles, SolarEdge, Tigo and others.
- Bonding the device to the racking: IronRidge says to use this kit to bond compatible microinverters and power optimizers to the racking system.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | T-bolt and nut for mounting and bonding module-level power electronics (MLPE) to IronRidge XR rails |
| Part number | BHW-MI-01-A1 (Microinverter Bonding Hardware, T-Bolt) |

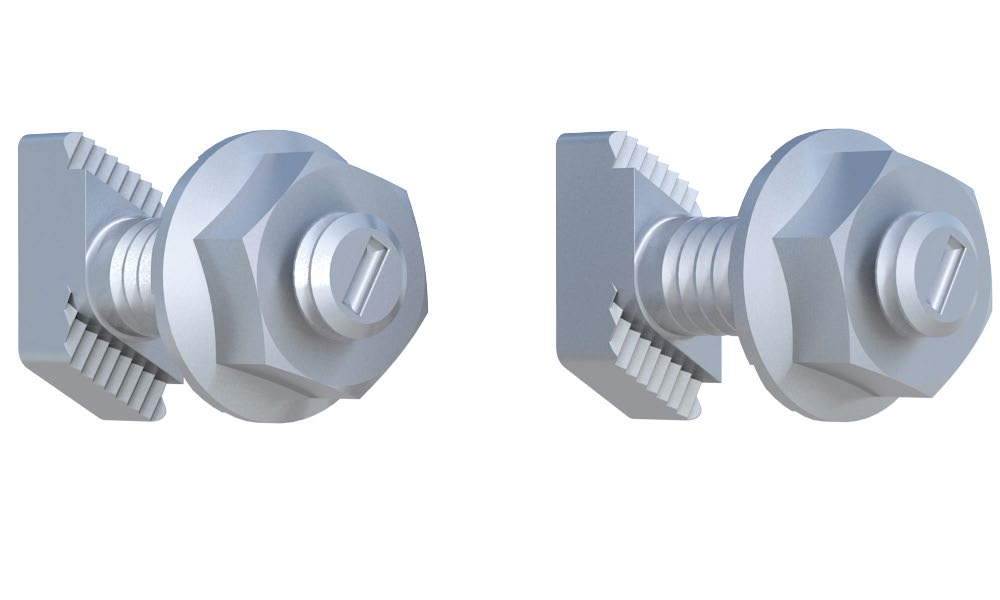

| Included (per IronRidge cut sheet) | 1 T-bolt, 1/4-20 × 0.75", lock; 1 flange hex nut, 1/4-20; both 300 series stainless steel, clear |
| Nut head | 7/16" (cut sheet) |
| Torque (per IronRidge manual) | 80 in-lbs with a 7/16" socket |
| Kits per device (per IronRidge) | One or two, as the device's mounting flange allows |
| Approved devices (per IronRidge manual) | Listed by maker and model in the XR MLPE Mount table, including AP Systems, Darfon, Duracell, Enphase, Generac, Hiitio, Hoymiles, Hyxi Power, Lunar Energy, NEP, SMA, SolarEdge, Spitzer Energy, Tigo and Yotta |
| Warranty (per IronRidge) | 25 years for products and 10 years for accessories and electrical junction boxes, from shipment. The 5-year finish warranty does not apply to mill aluminum, pre-plated steel or polymeric products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025). |
| Source | IronRidge Microinverter Bonding Hardware Cut Sheet v1.20; IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026); IronRidge Parts Catalog, Version 3.66 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- A device on IronRidge's approved list: Check the exact model in the XR Flush Mount manual's MLPE table.
- A torque wrench and 7/16" socket: Listed in IronRidge's XR Flush Mount manual.
May be required
- A second kit per device: Some mounting flanges take two kits, per IronRidge.
Optional upgrades
- Other XR racking parts: See roof mounts.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Device-specific steps. IronRidge says to remove the grounding washer on AP Systems QS1, QS2, QT2, DS3 and YC600 and on Yotta inverters, and the stainless clip on Tigo "A" devices. Do not remove clips from AP Systems rapid shutdown devices.
- Placement. IronRidge says MLPE devices shall be installed near module frames whenever possible.
- Part number. IronRidge's documents print this part as BHW-MI-01-A1 and as BHW-M1-01-A1. Both describe the same T-bolt and flange nut.
