Enphase IQ Combiner 5 with Hold-Down Kit, 80A, 240V Split-Phase – X-IQ-AM1-240-5-HDK
SKUX-IQ-AM1-240-5-HDK

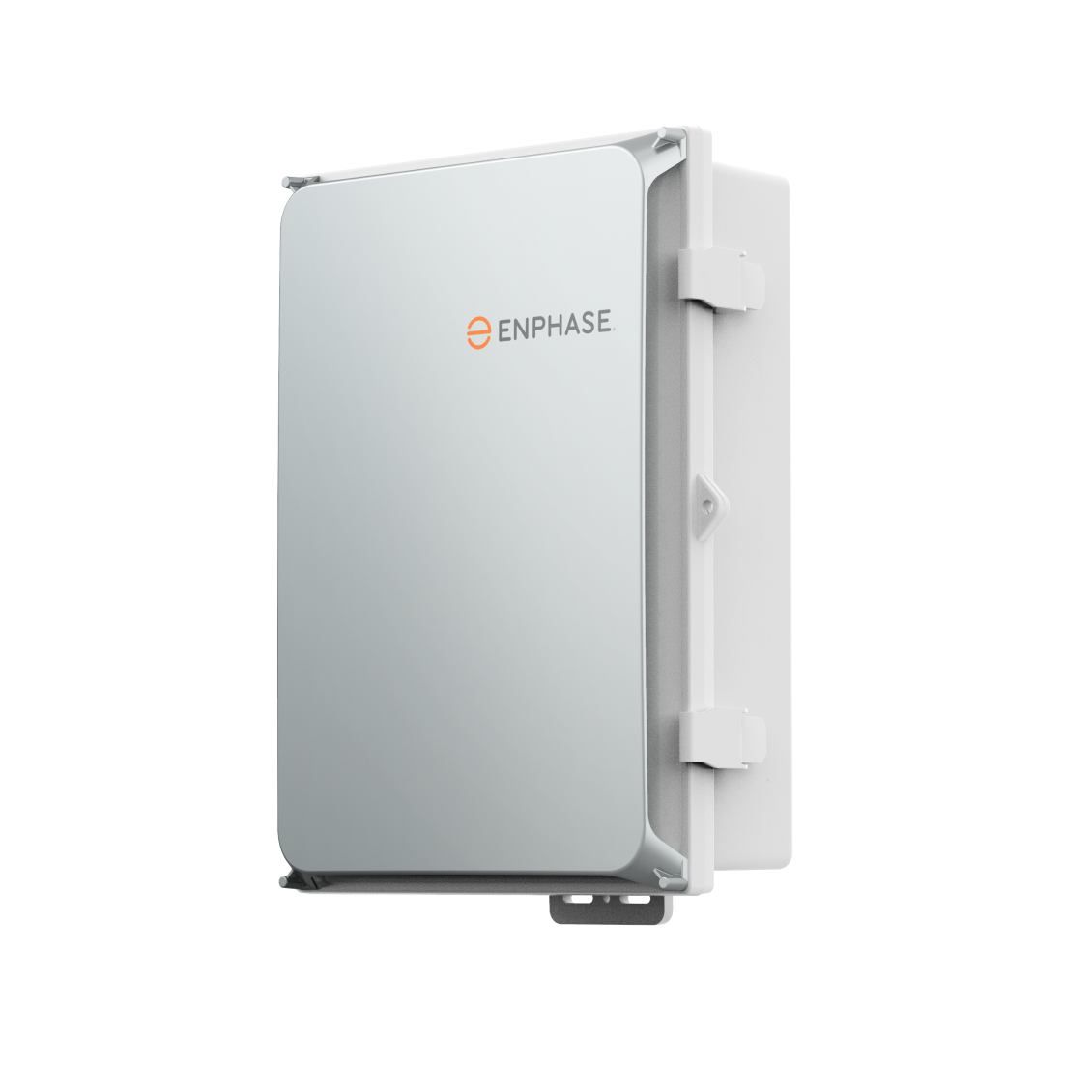

The Enphase IQ Combiner 5 with factory-installed hold-down kit (X-IQ-AM1-240-5-HDK) consolidates interconnection equipment into one outdoor enclosure and includes an IQ Gateway PCB for production, consumption, and IQ Battery metering.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 18.5 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Enphase IQ Combiner 5 with factory-installed hold-down kit (X-IQ-AM1-240-5-HDK) consolidates interconnection equipment into one outdoor enclosure and includes an IQ Gateway PCB for production, consumption, and IQ Battery metering.
It supports up to four 2-pole branch circuits for IQ Series Microinverters and is listed for use with IQ System Controller 3/3G and IQ Battery 5P on the Americas datasheet. Wired CTRL communication is built in.
Best For
- Residential Enphase Energy Systems that need a combined PV branch center plus metered IQ Gateway in one NEMA 3R enclosure.
- Projects specifying the HDK SKU: When a factory-installed hold-down kit is wanted (no separate X-IQ-NA-HD-125A needed, per the datasheet).
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | IQ Combiner 5 with IQ Gateway PCB and factory-installed hold-down kit |
| Model / ordering SKU | X-IQ-AM1-240-5-HDK |
| Rating | 80 A |
| System voltage and frequency | 120/240 VAC or 120/208 VAC, 60 Hz |
| Busbar rating | 125 A |
| Fault current rating | 10 kAIC |
| Max continuous current (PV/storage input) | 64 A |
| Branch circuits | Up to four 2-pole Eaton BR, Siemens Q, or GE/ABB THQL Series DG breakers (not included) |
| Max total branch breaker rating | 80 A distributed generation / 95 A with IQ Gateway breaker included |
| IQ Gateway breaker | 10 A or 15 A, 2-pole (included) |
| Production metering | Revenue-grade solid-core CT, ANSI C12.20 ±0.5% |
| Consumption / battery metering | Clamp CTs included, ±2.5% |
| Enclosure | Outdoor, NRTL-certified NEMA type 3R, polycarbonate |
| Ambient temperature | −40°C to 46°C (−40°F to 115°F) |
| Dimensions (W × H × D) | 14.75 in × 19.5 in × 6.63 in (height 21.06 in with mounting brackets) |
| Weight | 7.5 kg (16.5 lb) |
| Warranty (datasheet) | 5-year limited warranty |
| Source | Enphase IQ Combiner 5/5C Americas datasheet DSH-00007-8.0 (IQC-5-5C-DSH-00007-8.0-EN-US-2025-12-29) |
What You May Also Need
Usually required
- Disconnects & Breakers: Correctly sized 2-pole branch breakers for PV (and storage if used) per the datasheet accessory list.
- Internet connection (Wi-Fi, Ethernet, or optional cellular modem) for Enphase Cloud monitoring.
May be required
- CTRL-SC3-NA-01 control cable for wired CTRL to IQ System Controller 3/3G and IQ Battery 5P.
- IQ System Controller 3 or IQ System Controller 3G when the system includes backup.
Optional upgrades
- Enphase Mobile Connect cellular modem (CELLMODEM-07-NA-05 and related SKUs), ordered separately, if cellular is required and not already on site.
- Combiner Boxes: Compare other Enphase combiners on the same collection.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Americas datasheet Compatibility table lists IQ6, IQ7, and IQ8 Series Microinverters; IQ System Controller 3/3G (SC200D111C240US01 / SC200G111C240US01); and IQ Battery 5P. IQ Battery 3/10/3T/10T and IQ System Controller 1/2 (formerly Encharge/Enpower) use COMMS-KIT-01 per the datasheet footnotes — confirm the matrix for your battery generation.
- The IQ Combiner 5/5C quick install guide (version 12.0, April 2026) states it is not compatible with M Series Microinverters, and requires COMMS-KIT-01 for IQ Battery 3/10/3T/10T and IQ System Controller 1 or 2.
- Do not treat this SKU as IQ Combiner 5C: the 5C variants include Enphase Mobile Connect; X-IQ-AM1-240-5-HDK does not list a factory cellular modem.
- Professional installation required. Follow Enphase instructions and the NEC.
