Enphase Energy

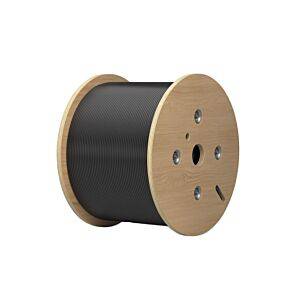

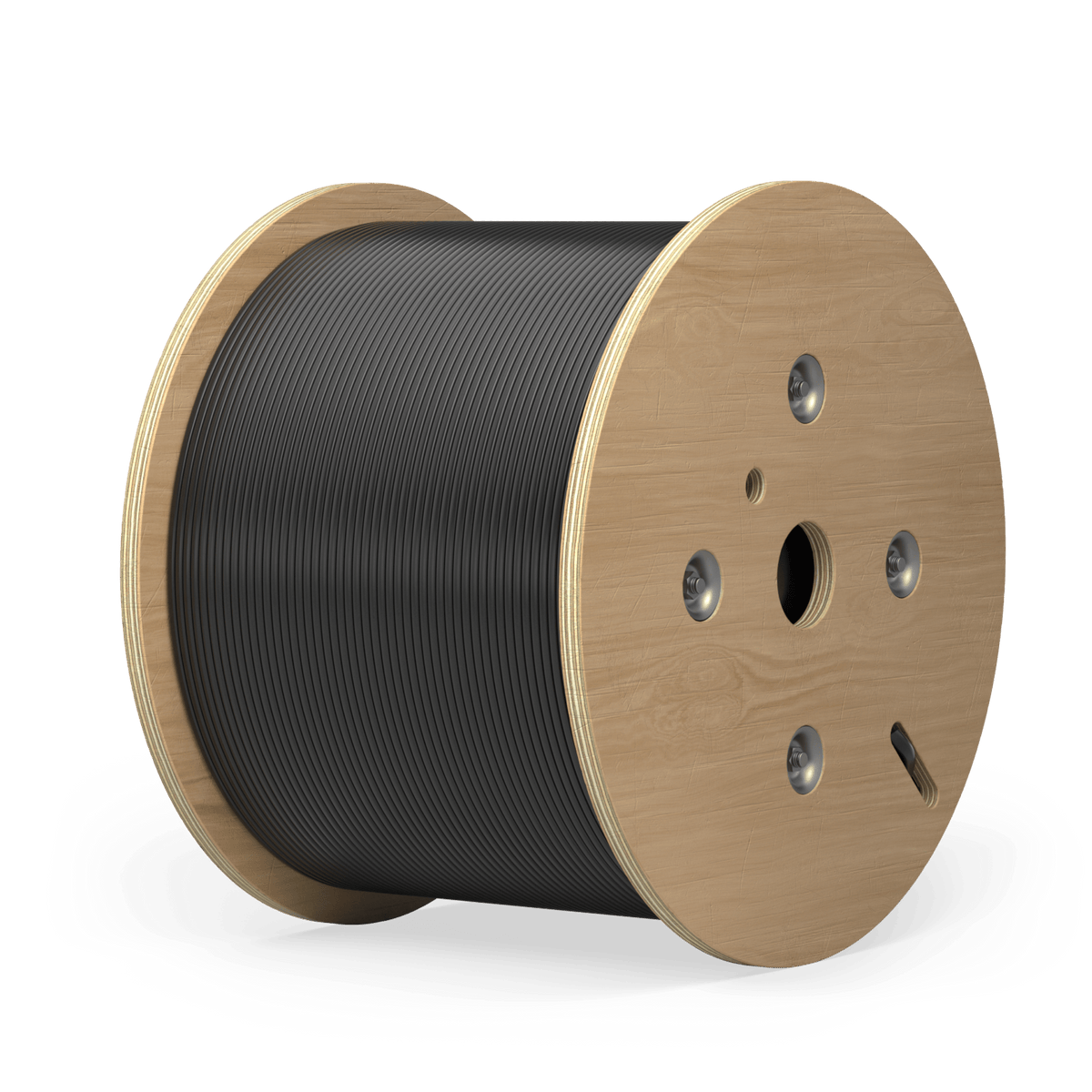

Enphase Control Cable for Wired Communication – CTRL-SC3-NA-01
Enphase Control Cable for Wired Communication – CTRL-SC3-NA-01
Regular price
$593.40
Regular price
Sale price
$593.40
Unit price
/
per
Couldn't load pickup availability
Product Overview
The Enphase Control Cable CTRL-SC3-NA-01 is the North America control cable Enphase specifies for wired CTRL signaling between IQ System Controller 3/3G, IQ Battery 5P, IQ Combiner 5/5C, and Communications Kit 2.
Per TEC-00007-3.0, one quantity is one 500 ft spool. Enphase states the total length of control wiring across the system cannot exceed 250 feet, and the cable must meet a minimum 50 Ω impedance.
Best For
- Wired CTRL runs on IQ System Controller 3/3G and IQ Battery 5P systems that use Enphase-validated control cable.
- Field cuts from a 500 ft spool when the project needs several short CTRL segments within the 250 ft site total.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Enphase Control Cable (North America) |
| SKU | CTRL-SC3-NA-01 |
| Shipping unit (Enphase) | 1 quantity = 1 spool of 500 ft |
| Construction | 18 AWG, 4 conductors + drain; TC-ER and DG |
| Voltage / temperature | 600 V, 90°C |
| Flame rating | FT4 |
| Standards cited | UL 3003, UL 1277, UL 83 |
| Site length limit | Total control wiring across the system cannot exceed 250 feet |
| Impedance | Minimum 50 Ω |
| Typical use (datasheet) | Between IQ System Controller 3/3G, IQ Battery 5P, and IQ Combiner 5/5C or COMMS-KIT-02 |
| Source | Enphase Control Cable North America technical note TEC-00007-3.0 (February 2025) |
What You May Also Need
Usually required
- Plan CTRL routes so the sum of all control segments stays within Enphase’s 250 ft system limit.
- Terminate on the CTRL headers as shown in the IQ System Controller / Combiner QIGs.
May be required
- IQ System Controller 3 or IQ System Controller 3G when building a new backup interconnection.
- IQ Combiner 5 HDK when the combiner is the CTRL hub.
Optional upgrades
- Cable & Wiring: Other balance-of-system cable when you need AC or DC power conductors (this SKU is control cable only).
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Use Enphase Control Cable (or cable Enphase explicitly accepts) for CTRL runs — generic cable that only meets general building-wire standards can still fail CTRL commissioning if impedance is wrong.
- Enphase defines one unit of CTRL-SC3-NA-01 as a 500 ft spool.
- Professional installation required. Follow Enphase instructions and the NEC.
