Solar + inverter + battery bundles
RUiXU Solar Cabin 4.4 / 16
Ten SunPro 440 W panels, a RUiXU SUNON7.2 indoor off-grid inverter and one RUiXU Lithi2-16 battery.
Component photos
-

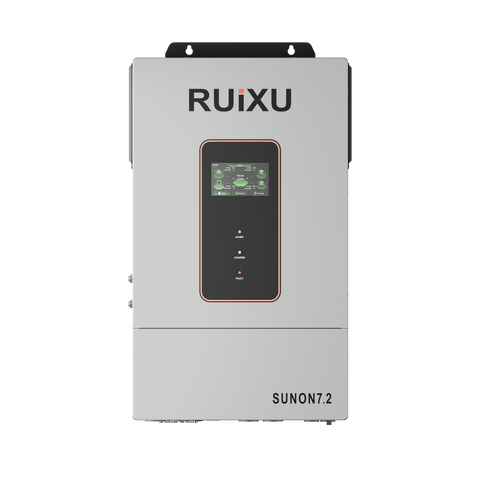

1 × SUNON7.2
-
1 × Lithi2-16
-
1 × SunPro 440 W panels, ten-panel pallet
Photos show individual components, not an assembled system.
Limits to know before you choose
- The SUNON inverters are indoor-only (IP20) off-grid inverters. This bundle does not promise utility export, battery-free operation, a guaranteed runtime or whole-home coverage.
- One Lithi2-16 is rated 7 kW (10 kW maximum under suitable conditions), below the SUNON7.2's 7.2 kW rating, so full inverter output from one battery is not promised.
- Battery-side usable energy is not energy delivered to appliances, and a reserve you choose reduces what you can use.
- The array layout is preliminary. String sizing for your site, lowest temperature and the exact module revision need review before you buy racking or wiring.
Who it suits and which loads to check
A small off-grid building where you want panels, inverter and battery from one order and will design the array layout.
List the loads you want to power, then check them against the inverter’s published rating and the battery’s power limits before ordering. In particular check:
- Continuous and starting (surge) power of motor loads such as air conditioners, well pumps and compressors.
- Load on each 120 V leg of a split-phase service, not only the total.
- Daily energy use in kWh, compared with usable battery energy after the reserve you choose.
- Your solar and charging sources, and how the system is charged when the sun is not enough.
altE does not publish a guaranteed runtime, promise utility export or battery-free operation, or claim this bundle powers a whole home. A technical support call can review your load list.
Power and capacity
| Measure | Value | Status |
|---|---|---|
| Inverter rated output | 7.2 kW AC (7,200 W), 120/240 V split-phase Source: SUNON7.2 spec sheet, File identifier 260921 | Published by manufacturer |
| Inverter maximum output power | 10,800 VA as published Duration and conditions are not stated in the figures altE read.Source: SUNON7.2 spec sheet, File identifier 260921 | Published by manufacturer |
| Inverter solar inputs | 2 MPPT inputs; up to 4,500 W per input; 16 A maximum input current per input Source: SUNON7.2 spec sheet, File identifier 260921 | Published by manufacturer |
| Inverter solar voltage | 500 Vdc maximum open-circuit voltage; 90 to 450 Vdc MPPT range Source: SUNON7.2 spec sheet, File identifier 260921 | Published by manufacturer |
| Inverter battery voltage | 48 V rated; 40 to 60 Vdc range Source: SUNON7.2 spec sheet, File identifier 260921 | Published by manufacturer |
| Inverter location and temperature | IP20, indoor only; -10 to 55 C with derating above 45 C Source: SUNON7.2 spec sheet, File identifier 260921 | Published by manufacturer |
| Battery usable energy (each) | 16 kWh at 100% depth of discharge, battery-side Measured under the manufacturer's test conditions. Not energy delivered to appliances.Source: Lithi2-16 data sheet, File dated 21 Jul 2025 | Published by manufacturer |
| Battery nominal voltage and capacity | 51.2 V, 314 Ah (each battery) Source: Lithi2-16 data sheet, File dated 21 Jul 2025 | Published by manufacturer |
| Battery rated DC power (each) | 7 kW Source: Lithi2-16 data sheet, File dated 21 Jul 2025 | Published by manufacturer |
| Battery maximum continuous DC power (each) | 10 kW at 20 to 35 C Subject to temperature and operating conditions.Source: Lithi2-16 manual, V2.1 | Published by manufacturer |
| Battery charge and discharge current (each) | 140 A standard, 200 A maximum Source: Lithi2-16 manual, V2.1 | Published by manufacturer |
| Battery weight (each) | 145 kg on the data sheet; about 137 kg on the manufacturer's product page Published values differ. Confirm before planning handling and delivery.Source: Lithi2-16 data sheet, File dated 21 Jul 2025 | Manufacturer values differ |
| Solar array size | 4.4 kW DC (10 panels x 440 W) Module rating at standard test conditions. Real output depends on site, temperature and rear-side gain.Source: SunPro SPDG440-N108M10 module sheet, No revision printed | Published by manufacturer |
| Panel voltage and current (each) | Voc 38.53 V, Isc 14.43 A; Vmp 32.09 V, Imp 13.72 A (standard test conditions) Reproduced on the altE listing. With 15% rear-side gain the module sheet shows 15.77 A Imp and 16.59 A Isc.Source: SunPro SPDG440-N108M10 module sheet, No revision printed | Published by manufacturer |
| Panel temperature coefficient of Voc | -0.25 %/C Source: SunPro SPDG440-N108M10 module sheet, No revision printed | Published by manufacturer |
| Panel maximum system voltage and series fuse | 1,500 VDC; 30 A Source: SunPro SPDG440-N108M10 module sheet, No revision printed | Published by manufacturer |
| Chosen backup reserve | Set by you. altE does not assume a reserve.Charge you keep in storage for outages. It reduces the energy available to use. | Your setting |
Nominal energy is the battery’s rated size. Usable energy is what the manufacturer says can be drawn under its test conditions, measured inside the battery. Energy delivered to appliances is lower. These are different numbers and altE does not substitute one for another. Rated inverter power is a continuous output rating; what the system can actually supply depends on the inverter, battery, voltage, temperature and configuration.
What is included, required and optional
Confirmed in this bundle
These items define the bundle.
| Component | Qty | Status | Details |
|---|---|---|---|
| RUiXU SUNON7.2 off-grid inverterSUNON7.2 | 1 | Confirmed in bundle | View product (SKU SUNON7.2): RUiXU SUNON7.2 off-grid inverter |
| RUiXU Lithi2-16 batteryLithi2-16 | 1 | Confirmed in bundle | View product (SKU LITHI2-16): RUiXU Lithi2-16 battery |
| SunPro 440 W bifacial full-black solar panels, ten-panel palletSPDG440-N108M10 | 1 | Confirmed in bundle | Each pallet listing is ten panels. 1 pallet = 10 panels. The store listing notes SunPro's full factory pallet is 36 panels, so this is a smaller quantity.View product (SKU SPDG440-N108M10-PAL10): SunPro 440 W bifacial full-black solar panels, ten-panel pallet |
Listed by the manufacturer as supplied in the box
From manufacturer pages. altE has not yet confirmed the contents of the units it ships, so do not treat these as included until confirmed.
| Component | Qty | Status | Details |
|---|---|---|---|
| Battery communication cable (CAT6), Wi-Fi dongle and operation manualSUNON7.2 box | 1 | Manufacturer-listed, not yet confirmed | Listed by RUiXU in the box: one 200 cm CAT6 battery communication cable, the operation manual and a Wi-Fi dongle. Not yet confirmed against the units altE ships. |
| RJ45 patch cable and ground cableLithi2-16 box | To be specified | Manufacturer-listed, not yet confirmed | Listed by RUiXU in the Lithi2-16 box. Quantity per battery not yet confirmed. |
| Set of 1/0 AWG parallel cablesLithi2-16 box | To be specified | Manufacturer-listed, not yet confirmed | RUiXU lists OP140 or PP140 and does not say which ships. Confirm the variant before you buy any cables. |
Required for this configuration, not confirmed as included
Wiring, protection, mounting and parallel-battery connection equipment are not in the bundle or its total. Sizes, lengths, ratings and quantities marked open are still being specified.
| Component | Qty | Status | Details |
|---|---|---|---|
| Wiring: AC output, AC input or generator, and grounding conductors | To be specified | Open: to be specified | Sized and routed for your service and loads.To specify: Conductor size and type; Lengths; Grounding and bonding method |
| Protection: AC breakers, disconnects and load-panel connection | To be specified | Open: to be specified | Designed for your site and service.To specify: Breaker ratings; Interrupt ratings |
| Mounting: indoor location and inverter mounting hardware | To be specified | Open: to be specified | The inverters are rated for indoor use only (IP20).To specify: Mounting hardware for your wall or surface; Clearances from the manual |
| Wiring: battery-to-inverter DC cable assembly, positive and negative | To be specified | Open: to be specified | The Lithi2-16 manual gives 240 A maximum and 200 A continuous per power cable and terminal, with a recommended cable length under 10 m.To specify: Conductor size; Length; Terminals and connector variant |
| Protection: two-pole DC circuit breaker between battery and inverter | To be specified | Open: to be specified | The Lithi2-16 manual requires two-pole isolation.To specify: Device rating; DC interrupt rating; Enclosure and mounting |
| Mounting: battery anti-tip fixation and site anchors | To be specified | Open: to be specified | One set per battery. The manual says to fix the battery as described.To specify: Hardware and anchors for your wall or floor |
| Wiring: PV string cable pairs with matched connectors | To be specified | Open: to be specified | The panels use Staubli MC4 connectors; mating parts must match.To specify: Number of strings; Length; Connector make and type |
| Protection: PV disconnect, string protection, surge protection, grounding and labels | To be specified | Open: to be specified | To specify: Device ratings for your array; Grounding and bonding method |
| Protection: rapid shutdown devices and control arrangement where code requires them | To be specified | Open: to be specified | Panel-level devices are not supplied in the bundle. Their pairing with the SUNON inverters has not been established.To specify: Device make and version; Module count |
| Mounting: racking, rails, clamps and roof or ground attachments | To be specified | Open: to be specified | For 10 panels.To specify: Roof or ground type; Rail, clamp and attachment quantities |
Optional
Not part of the bundle.
| Component | Qty | Status | Details |
|---|---|---|---|
| Additional Lithi2-16 batteryLithi2-16 | To be specified | Open: to be specified | Another battery adds stored energy, not inverter rating. It needs its own branch cable and protection and a reviewed distribution design.To specify: Distribution design, branch cable and protection for the added batteryView product (SKU LITHI2-16): Additional Lithi2-16 battery |
| Generator connection | To be specified | Open: to be specified | Needs a designed connection. Not part of this bundle. |
Compatibility
Four separate questions, each answered from the manufacturer’s own documents where they exist. Check the current documents and your site’s requirements before you install.
-
Electrical and power
Manufacturer-documentedThe SUNON7.2 battery range is 40 to 60 Vdc (48 V rated); the Lithi2-16 is 51.2 V nominal. Current, protection and wiring limits follow the RUiXU manuals. One Lithi2-16 is rated 7 kW (10 kW maximum under suitable conditions), which is below the SUNON7.2's 7.2 kW rating, so full inverter output from one battery is not promised. Ten panels in series are about 385 V open-circuit at 25 C and about 429 V at -20 C (calculated from the published Voc and its -0.25 %/C coefficient), under the inverter's 500 V limit; about 321 V at maximum power under standard test conditions, inside its 90 to 450 V MPPT range. One string of ten is 4,400 W at standard test conditions and fits one solar input (up to 4,500 W per input on the SUNON7.2). The input current is listed as 16 A per input; the panel sheet shows 15.77 A at maximum power with 15% rear-side gain and 16.59 A short-circuit, so a strong rear-gain case is close to that limit and needs the manufacturer's confirmation. These are altE calculations from published figures, not an array design. Your lowest site temperature, the exact module revision and the manufacturers' string-sizing rules decide.
-
Communications
Manufacturer-documentedRUiXU's Lithi2-16 manual (V2.1) lists the SUNON7.2 among its UL 1741 inverter models for the RUiXU battery setting. The table's layout is hard to read, and altE has not had RUiXU confirm the exact inverter setting or a minimum firmware version.
-
Physical connection and fit
Open: to be specifiedCables, protection, racking and fixation parts are listed as required items; their lengths, ratings and quantities are still being specified. Panel connectors are Staubli MC4.
-
System certification
Open: to be specifiedRUiXU's page lists UL 1741 for the SUNON7.2; altE has not read the certificate. No certificate naming this inverter and battery together has been established. Check the listing your installation requires. UL 9540A is a fire-test method. It is not a system certification, and it does not by itself cover an arbitrary inverter and battery combination. The rapid shutdown arrangement for the array is also not established.
Installation requirements
- Electrical installation must follow the manufacturers' manuals and local code, and be done or reviewed by qualified personnel.
- The SUNON inverters are rated IP20 for indoor use only. Plan an indoor, dry location with the clearances in the manual.
- You will need AC conductors and breakers, disconnects, grounding and bonding, labels, anchors and a load-panel design for your site. None of these is in the bundle.
- Motor starting, air conditioning, well pumps, per-leg loads and any generator connection need to be checked against the exact inverter before you rely on this bundle for them.
- Fix each Lithi2-16 battery as the manual describes, and keep the clearances it lists.
- For the solar array you will also need racking, string wiring with matched connectors, DC disconnect and protection, and a rapid shutdown arrangement where code requires one.
Documents and sources
Manufacturer documents, last checked 15 Oct 2026. Check for newer revisions before ordering or installing.
- SUNON7.2 product page (opens in a new tab)
- SUNON7.2 spec sheet (opens in a new tab)
- RUiXU Lithi2-16 product page (opens in a new tab)
- Lithi2-16 data sheet (opens in a new tab)
- Lithi2-16 manual (opens in a new tab)
- SunPro SPDG440-N108M10 module sheet (opens in a new tab)
- altE listing for the SunPro SPDG440-N108M10 ten-panel pallet (opens in a new tab)
- SunPro installation manual (opens in a new tab)
Delivery
Freight cost, delivery access and timing are confirmed before you pay or in your written quote. Freight is never assumed to be free, and tax is calculated and confirmed before payment.
- Freight cost, delivery access (for example liftgate or residential delivery) and timing are confirmed through checkout or your written quote. No delivery date is promised.
- Heavy equipment: the SUNON7.2 inverter (16 kg published); each Lithi2-16 battery (roughly 137 to 145 kg); 10 SunPro panels (about 51.4 lb each as listed, so 514 lb for the panels before packaging).
- Tax is calculated separately and confirmed before payment.
Ready to go ahead, or want a second opinion?
Equipment total $7,069.00
Sum of the 3 component prices. Freight, tax and installation materials are not included.
