RUiXU Lithi2-16 16kWh 51.2V Battery
SKULITHI2-16
The RUiXU Lithi2-16 is a 16 kWh, 48-volt-class lithium iron phosphate (LiFePO4) battery in a single floor-standing cabinet. It runs at 51.2 V nominal with 314 Ah of capacity. It connects to a 48 V battery inverter or hybrid inverter, which charges...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 383.6 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview

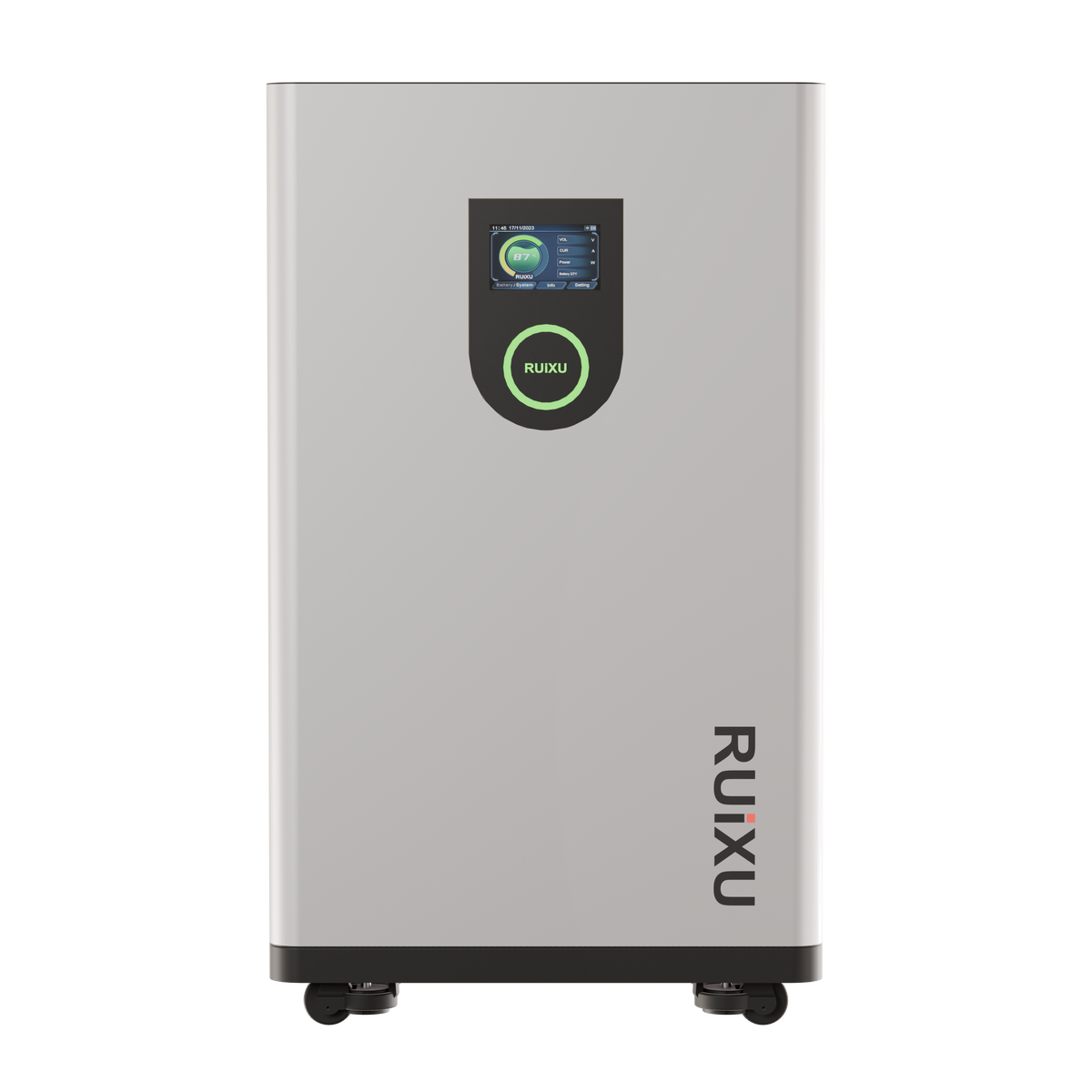

The RUiXU Lithi2-16 is a 16 kWh, 48-volt-class lithium iron phosphate (LiFePO4) battery in a single floor-standing cabinet. It runs at 51.2 V nominal with 314 Ah of capacity. It connects to a 48 V battery inverter or hybrid inverter, which charges it from solar, the grid or a generator and turns its DC power into AC power for the home.
The cabinet has four built-in heavy-duty wheels for moving it into place and a 5-inch touch screen that shows battery information and settings. A built-in heater keeps the cells warm enough to charge in cold weather. Inside, a fuse on the negative side and a breaker on the positive side protect the battery. RUiXU also lists a gas aerosol fire-protection module for the battery.
Best For
- Home backup: Store energy for use during utility outages as part of a properly designed backup system with a 48 V inverter.
- Off-grid homes and cabins: Store daytime solar power for use at night, sized for your loads and inverter.
- Large storage in one box: 16 kWh per cabinet, expandable to 32 units in parallel (about 512 kWh) for larger homes or small commercial buildings, per RUiXU.
- Cold garages and outdoor sites: The self-heating feature lets the battery charge in cold weather, and the cabinet is rated IP55. RUiXU recommends a rain shelter and sunshade outdoors.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | 48 V-class (51.2 V) LiFePO4 battery cabinet with built-in BMS, heater and touch screen |
| Model | Lithi2-16 |
| Nominal energy | 16 kWh, with 100% depth of discharge allowed. This is how much energy the battery can store. |
| Nominal voltage / range | 51.2 V; 43.2–58.4 V operating range |
| Capacity | 314 Ah (at 0.2C) |
| Charge settings | Depend on the inverter. RUiXU's manual gives settings for each supported inverter brand; for Sol-Ark and Deye it recommends 56.0 V absorption and 54.6 V float. Maximum charge voltage is 58.4 V. |
| Charge / discharge current | 140 A recommended; 200 A maximum (within RUiXU's temperature limits) |
| DC power | 7 kW rated; 10 kW maximum continuous (68–95°F / 20–35°C) |
| Communication | CAN and RS485. RUiXU's manual lists CAN connections for Victron, SMA, Studer Innotec, Sofar, RUiXU, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Pylon, Schneider and LuxPower, and RS485 connections for Voltronic, RCT, MPP, "Alpha Outback" (as RUiXU writes it), SRNE, Pylon and Growatt. The inverter brand is selected on the battery's touch screen. |
| Parallel expansion | Up to 32 units in parallel (16 to 512 kWh) |
| Cycle life | 9,500 or more cycles at 80% depth of discharge; 15-year design life |
| Temperature | Charge: −13°F to 131°F (−25°C to 55°C). Discharge: −4°F to 131°F (−20°C to 55°C). Storage: −4°F to 113°F (−20°C to 45°C). |
| Heater | 480 W; turns on at 41°F (5°C) or below and off at 53.6°F (12°C) or above |
| Enclosure | IP55, indoor or outdoor |
| Terminals | Self-locking quick-plug terminals. RUiXU's manual rates each power cable and terminal for 200 A continuous and 240 A maximum. |
| Dimensions (H × W × D) | 36.3 × 21.3 × 9.8 in (924 × 543 × 250 mm), height including wheels |
| Weight | About 302 lb (137 kg) |
| Certifications | UL 1973, UL 9540, UL 9540A, IEC 62619, IEC 61000, UN 38.3, CE; listed for CEC and SGIP |
| In the box | Battery; grounding cable; 4 hold-down brackets with screws for securing the battery to the wall; 4 decorative side panels; battery-to-battery communication cable (1,000 mm / 39.4 in); one orange (+) and one black (−) power cable, 1.4 m (4.6 ft) each; manual, warranty document and shipment report. Cables to the inverter are not included (sold separately). |
| Warranty | 10 years (see RUiXU's warranty terms) |
What You May Also Need
Usually required
- Low-voltage (48 V-class) battery inverter or hybrid inverter: Turns the battery's DC power into AC power and charges the battery. For closed-loop communication, check RUiXU's inverter compatibility list for your inverter model.
- Battery-to-inverter cables: Not included. RUiXU says inverter cables come in a separate external cable kit (2 m / 6.6 ft orange and black cables). If you use other cables, size them for the current and the length of the run. RUiXU rates each power cable and terminal for 200 A continuous and recommends keeping the run under 10 m (32.8 ft).
- Two-pole breaker or disconnect: RUiXU's manual calls for a 2-pole circuit breaker that isolates both the positive and negative wires between the battery and the inverter. Size it to electrical code and the inverter's manual.
May be required
- More Lithi2-16 batteries: For more storage or more continuous current. RUiXU lists up to 32 units in parallel.
- Busbar: RUiXU's manual says to use a busbar when connecting several Lithi2-16 units in parallel to the inverter.
Optional upgrades
- Sunshade or rain shelter: For outdoor installs, RUiXU strongly recommends a cover above the battery to keep off direct sun and rain.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Very heavy, and it must be secured. About 302 lb. Use the wheels to move it into place. Then, per RUiXU, secure it to the wall with the included hold-down brackets and lock the wheels. Leave at least 50 mm (about 2 in) between the battery and the wall, 150 mm (about 6 in) at the sides and front, and 30 cm (about 12 in) above for cables.
- Inverter settings. Use RUiXU's recommended settings for your inverter brand and model, listed in the manual's inverter table. For Sol-Ark and Deye, RUiXU recommends 56.0 V absorption and 54.6 V float. Also select your inverter brand on the battery's touch screen.
- Cold-weather charging. RUiXU's manual limits charge current at low temperatures. For example, it allows only 10 A of charge current below 32°F (0°C).
- Outdoor use. The cabinet is IP55. RUiXU recommends adding a rain shelter and sunshade outdoors.
- Installation. Install to electrical code and local rules. Battery systems usually need a permit and inspection by your local code office (AHJ).
