RUiXU SUNON7.2 7.2kW 48V Off-Grid Inverter, 120/240V Split-Phase
SKUSUNON7.2
The RUiXU SUNON7.2 is a 7.2 kW, 120/240 V all-in-one off-grid inverter for 48 V battery systems. One indoor unit combines a pure sine wave inverter, an MPPT solar charge controller and a grid/generator battery charger. It lets a cabin, shop or...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 40.27 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview

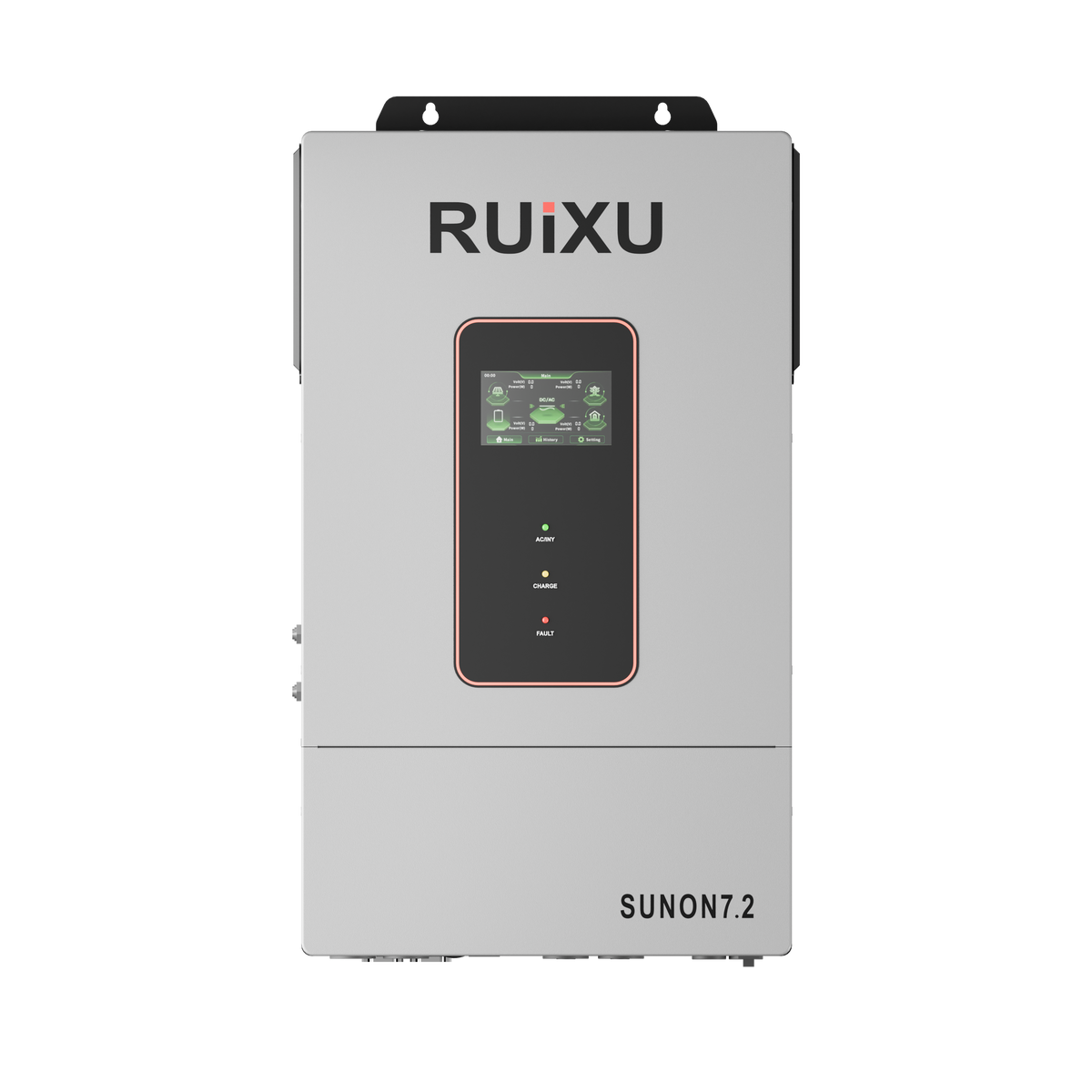

The RUiXU SUNON7.2 is a 7.2 kW, 120/240 V all-in-one off-grid inverter for 48 V battery systems. One indoor unit combines a pure sine wave inverter, an MPPT solar charge controller and a grid/generator battery charger. It lets a cabin, shop or home run from solar, batteries and a generator or grid supply.
RUiXU lists 120/240 VAC output, single-phase or split-phase, from one unit, so it can power 240 V loads. Up to six units can be connected in parallel (43.2 kW total), and RUiXU says paralleled units can form three-phase output.
It is an off-grid (stand-alone) inverter. Grid or generator power can charge the batteries and pass through to the loads. RUiXU's documents do not describe it as a grid-tie inverter that exports power to the utility.
Best For
- Off-grid homes and cabins that need 240 V: 7,200 W rated, 10,800 VA maximum, 120/240 V split-phase.
- Mid-size arrays on two MPPTs: 4,500 W + 4,500 W maximum solar input.
- RUiXU Lithi2-16 battery systems: RUiXU's Lithi2-16 manual (V2.1) lists the SUNON7.2 as a compatible inverter.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | 48 V all-in-one off-grid inverter/charger with MPPT solar charger (stand-alone) |
| Model | SUNON7.2 |
| AC output | 7,200 W rated; 10,800 VA maximum; 120/240 VAC single-phase or split-phase |
| Motor load capacity | 4 HP |
| Solar input | 2 MPPTs; 4,500 W + 4,500 W maximum input power; 16 A + 16 A maximum input current; 500 VDC maximum open-circuit voltage; 90–450 VDC MPPT range |
| Charging current | 150 A maximum solar; 120 A maximum grid/generator; 150 A maximum combined |
| Grid/generator input | 85–140 VAC; 50/60 Hz; 50 A bypass overload current |
| Efficiency | MPPT tracking 99%; maximum 92% |
| Parallel | 1–6 units |
| Battery | 48 V nominal (40–60 V); lithium-ion, lead-acid or user-defined |
| Output waveform; frequency | Pure sine wave; 50/60 Hz |
| Switching time | 10 ms typical |
| Communication | RS485, CAN, USB, dry contact; Wi-Fi dongle included (RUiXU's store lists it in the box; the spec sheet calls it an external module) |
| Enclosure | IP20, indoor only |
| Temperature | −10°C to 55°C; derates above 45°C |
| Dimensions; weight | 613 × 360 × 128 mm (24.13 × 14.17 × 5.04 in); 16 kg (35.27 lb) |
| Certificates (per RUiXU) | FCC Part 15 Class B; UL 1741 |
| Warranty (per RUiXU) | 3 years |
| Source | RUiXU SUNON7.2 spec sheet (PDF dated Sept. 21, 2026, ruixubattery.com); RUiXU dealer product page (dealer.ruixubattery.com); RUiXU store product page (ruixubattery.com); RUiXU Lithi2-16 operating manual V2.1 |
What You May Also Need
Usually required
- A 48 V battery bank: The inverter takes a 48 V-class battery (40–60 V). RUiXU's Lithi2-16 battery manual (V2.1) lists the SUNON7.2 as compatible, with the battery set to RUiXU and the inverter set to battery type LFP16, CAN-BMS and Pylon-CAN protocol. See the RUiXU Lithi2-16 16 kWh battery.
- Battery cables and DC overcurrent protection: Size them for the inverter's maximum charge and discharge current, following RUiXU's manual and the battery maker's instructions.
- Solar panels wired in strings: String voltage must stay within the 90–450 VDC MPPT range and below the 500 VDC maximum open-circuit voltage at your site's coldest temperature.
May be required
- Disconnects and breakers: DC and AC disconnects or breakers are needed; RUiXU's spec sheet lists no integrated circuit breaker.
- Generator: A generator can charge the batteries and run the loads through the AC input.
- PV cables: Extension cables carry power from the array to the inverter. Check connector types.
Optional upgrades
- Additional SUNON7.2 units: RUiXU lists 1–6 units in parallel.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Indoor only. RUiXU rates the enclosure IP20 for indoor use. Install it in a dry, ventilated space, and expect output to derate above 45°C.
- Off-grid, not grid-tie. RUiXU describes the SUNON series as off-grid inverters. Do not plan on exporting solar power to the utility with it.
- Split-phase setup. Wire and configure 120/240 V output as RUiXU's manual describes, and check that the input voltage range (85–140 VAC) suits your generator or grid supply.
- Battery settings. With closed-loop communication, set the battery type and protocol in both the battery and the inverter as the battery maker's manual describes. With lead-acid or user-defined batteries, set the charge voltages from the battery maker's data.
- Professional installation. Battery-based systems involve high DC currents. Have a qualified installer design and install the system under local electrical codes.
