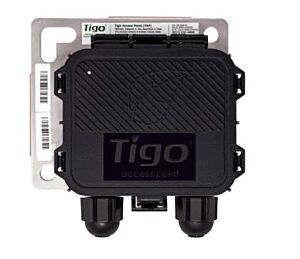

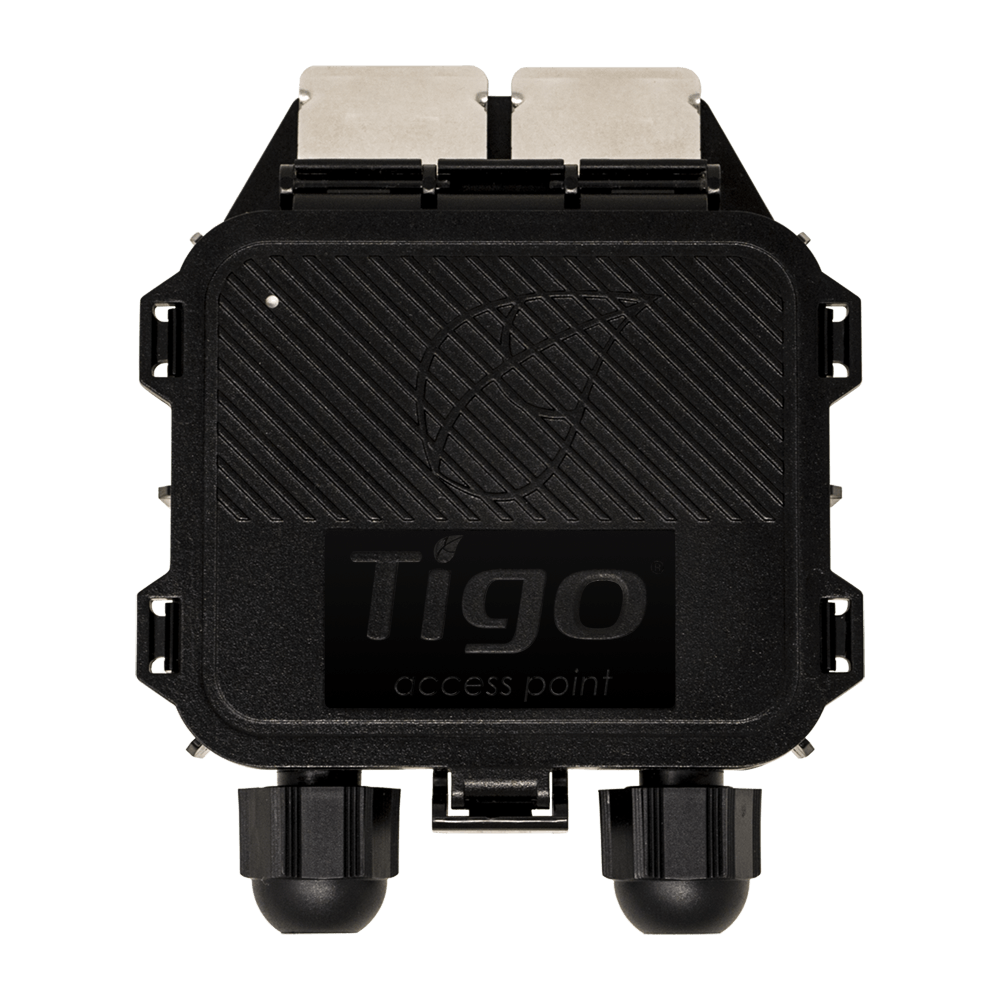

Tigo Access Point (TAP) Wireless Mesh Transceiver for TS4 – 158-00000-02
SKU158-00000-02
The Tigo Access Point (TAP) is a wireless mesh radio that talks to Tigo TS4 units on the modules and passes their data to a Tigo Cloud Connect Advanced (CCA). Tigo orders it as 158-00000-02, "TAP, in Honeycomb Packing".
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Tigo Access Point (TAP) is a wireless mesh radio that talks to Tigo TS4 units on the modules and passes their data to a Tigo Cloud Connect Advanced (CCA). Tigo orders it as 158-00000-02, "TAP, in Honeycomb Packing".
Tigo's TAP datasheet lists TAP for use with TS4-A-O, TS4-X-O, TS4-A-S and TS4-X-S. It says TAP enables wireless module-level monitoring and wireless module-level rapid shutdown, and provides grid status to TS4 MLPE. TAP mounts on the module frame without tools and draws power from the CCA over an RS485 cable.
Best For
- Tigo TS4-O and TS4-S arrays monitored through a CCA: TAP is the wireless link between the array and the CCA.
- Larger or spread-out arrays: Tigo says to use multiple TAPs when TS4 distances exceed its limits.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Wireless access point for Tigo TS4 units |
| Part number | 158-00000-02 |
| Operating voltage; consumption (per Tigo) | 5–25 VDC; 0.5 W average, 1 W peak (powered from the CCA via RS485) |
| Recommended cable (per Tigo) | RS485, 18–22 AWG |
| Dimensions; weight (per Tigo) | 126.2 × 130.0 × 26.8 mm (with bracket); 227 g (0.5 lb) |
| Range (per Tigo) | Maximum 10 m (33 ft) to the closest TS4; 35 m (115 ft) to the farthest TS4 |
| Capacity (per Tigo) | Up to 300 TS4 units; Tigo notes environmental conditions can affect this |
| Ingress rating (per Tigo) | IP68 |
| TS4 families (per Tigo TAP datasheet) | TS4-A-O, TS4-X-O, TS4-A-S and TS4-X-S |
| Source | Tigo TAP Datasheet 002-00050-00 Rev 1.4 (Jun 8, 2026); Tigo CCA Kit Datasheet 002-00140-00 Rev 1.4 (Jul 27, 2026) |
What You May Also Need
Usually required
- A Cloud Connect Advanced (CCA): TAP connects to the CCA for cloud monitoring. See the CCA Outdoor Kit, which includes one TAP.
- RS485 communication cable: Not provided by Tigo.
May be required
- Additional TAPs: For distance, obstructions or unit count beyond Tigo's limits.
- Other monitoring hardware: See monitoring & control.
Optional upgrades
- Other gateways: See gateways & communication.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Not an RSS transmitter. Tigo Fire Safety TS4-A-F and TS4-A-2F use a Tigo RSS Transmitter (or an inverter with a built-in Tigo certified transmitter) for rapid shutdown.
- Placement. Tigo says to position TAPs in the center of each array. Treat a height change of more than 3 ft (1 m) as an obstruction. Do not place the TAP inside an attic or any object that is not the module or racking.
- Licensed work. Install to the NEC edition your AHJ has adopted and the maker's current installation instructions.
