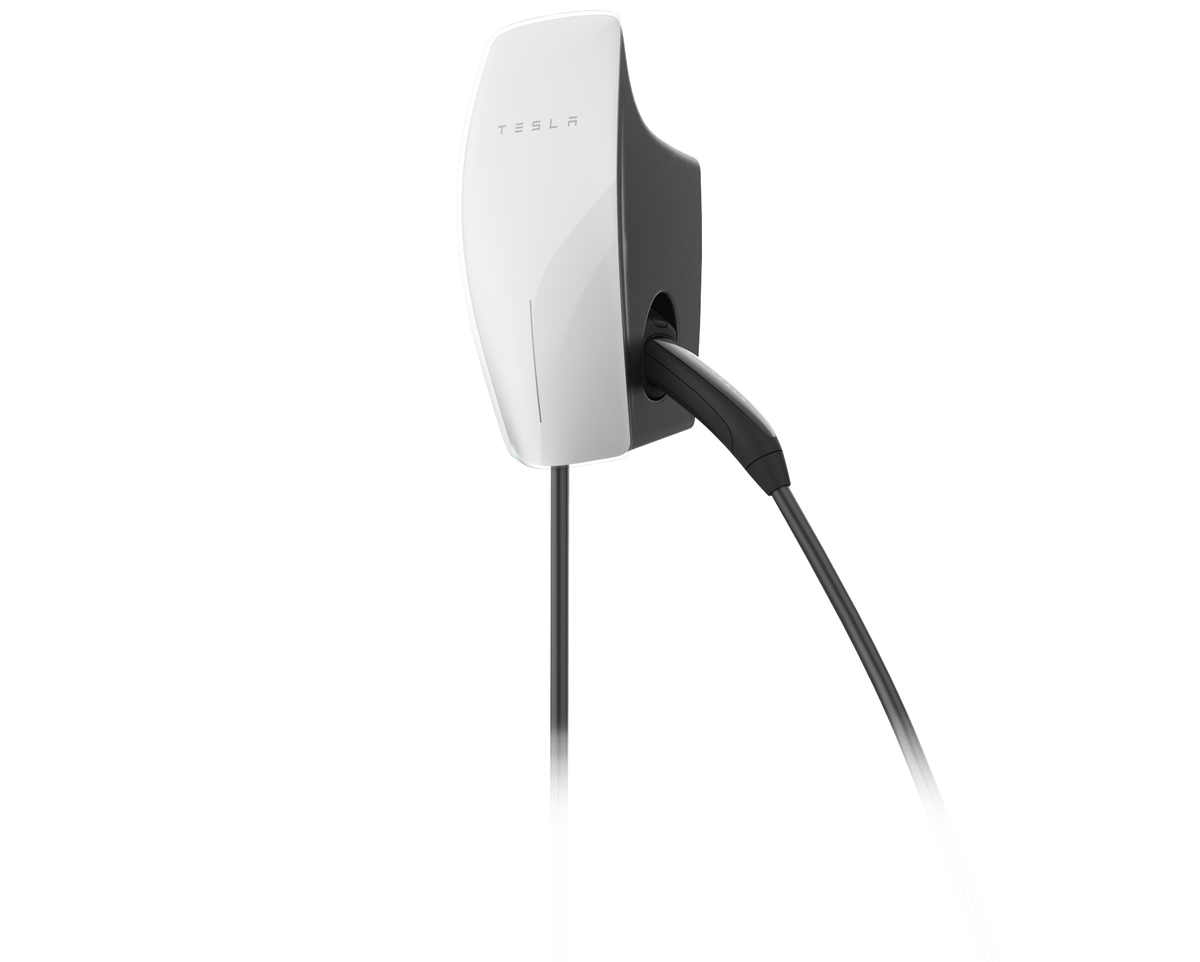

Tesla Universal Wall Connector, EV Charger, 24 ft Cord – 1734412-02-X
SKU1734412-02-X
The Tesla Universal Wall Connector is a hardwired Level 2 EV charger for home or site charging. This listing is the 24 ft (7.3 m) cable version identified by Tesla part number family 1734412-XX-X (this SKU: 1734412-02-X). It delivers up to 48...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 13.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Tesla Universal Wall Connector is a hardwired Level 2 EV charger for home or site charging. This listing is the 24 ft (7.3 m) cable version identified by Tesla part number family 1734412-XX-X (this SKU: 1734412-02-X). It delivers up to 48 amps on a 240 V circuit (about 11.5 kW), and the installer can set a lower output to match a smaller breaker.
The charge handle is NACS (Tesla's North American Charging Standard). The unit also includes a J1772 adapter so vehicles with a J1772 inlet can use the same charger. Tesla rates the enclosure for indoor or outdoor use (Type 3R / IP54). Wi-Fi supports setup, over-the-air updates, and optional power-management features.
This is EV supply equipment (EVSE). It does not replace a home electrical panel upgrade when one is required, and it must be installed by a qualified electrician per Tesla's installation manual and local electrical code.
Best For
- Homes that want overnight Level 2 charging: On a 60 A double-pole breaker at 240 V, max output is 48 A / 11.5 kW. Lower breaker sizes (15–50 A) are supported with matching lower output, per Tesla's commissioning table.
- Sites with Tesla and non-Tesla EVs: Tesla documents a NACS handle plus an included J1772 adapter for vehicles that use a J1772 charge port.
- Indoor or outdoor wall mounting: Enclosure rating Type 3R / IP54. Install on a flat vertical surface that can support the unit's weight.
- Multi-charger sites that share a feeder: Tesla's Group Power Management feature can link up to six Wall Connectors so they share a programmed site current limit over Wi-Fi.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Hardwired Level 2 EV charger (EVSE), Universal Wall Connector |
| Manufacturer part number family | 1734412-XX-X (Tesla Universal Wall Connector install manual). This listing SKU: 1734412-02-X. |
| Cable length | 24 ft (7.3 m) |
| Voltage and wiring | Nominal 200–240 V AC single-phase |
| Current output range | 12–48 A (set during commissioning to match the branch breaker) |
| Max power at 240 V | 11.5 kW on a 60 A breaker (48 A output). Other options: 9.6 kW (50 A), 7.6 kW (40 A), 5.7 kW (30 A), 3.8 kW (20 A), 2.8 kW (15 A). |
| Frequency | 50/60 Hz |
| Connector | NACS handle; includes J1772 charge-port adapter (per Tesla install manual "In the Box" / external components) |
| Terminal blocks | 12–4 AWG G (3.5–25 mm²), copper |
| Supported conduit | ¾ in (21 mm) default; 1 in (27 mm) optional |
| Enclosure rating | Type 3R / IP54 (indoor and outdoor) |
| Operating temperature | −22°F to 122°F (−30°C to 50°C) |
| Storage temperature | −40°F to 185°F (−40°C to 85°C) |
| Unit dimensions | 13.6 × 6.1 × 5.9 in (345 × 155 × 150 mm) |
| Wirebox bracket dimensions | 9.8 × 4.7 × 3.5 in (250 × 120 × 90 mm) |
| Weight (including wirebox) | About 13 lb (5.7 kg) |
| Wi-Fi | 2.4 GHz, 802.11b/g/n |
| Ground-fault protection | Integrated ground fault circuit interruption (GFCI) protection, per Tesla install manual Features section |
| Power management | Static load management by breaker size; optional Dynamic Power Management (requires Tesla-approved energy meter, sold separately); optional Group Power Management for up to 6 Wall Connectors sharing a site limit via Wi-Fi |
| Means of disconnect | External branch circuit breaker (hardwired; cord-and-plug connections are not permitted) |
| Agency approvals | ETL/cETL (Tesla Universal Wall Connector install manual). |
| Warranty (Tesla Charging Equipment Limited Warranty) | 48 months for normal personal / residential use from invoice date; 12 months for normal commercial use. See Tesla's full warranty terms for exclusions. |
What You May Also Need
Usually required
- Qualified electrical installation: A double-pole branch breaker sized for the programmed output (up to 60 A for max power), copper branch conductors and an equipment-grounding conductor landed in the wirebox, per Tesla's manual and local code.
- Mounting surface and fasteners: A flat vertical surface that can support the unit. Tesla supplies mounting hardware intended for the listed conditions in the install manual; alternate surfaces need Type 3R-rated hubs/washers where required to keep the outdoor rating.
May be required
- Electrical-service capacity: Homes with limited spare amperage may need a panel or service upgrade, or a lower Wall Connector output setting / Dynamic Power Management with a Tesla-approved energy meter.
- Additional Wall Connectors for multi-bay charging: Group Power Management supports up to six units. Each unit is sold separately.
- Pedestal or cable organizer: Tesla notes a cable organizer (sold separately) when space is tight. Confirm current Tesla accessory part numbers before ordering.
Optional related equipment
- Solar panels and home storage equipment: Many customers charge an EV from a home solar and storage system. Charger selection still depends on the branch circuit and vehicle inlet; solar and storage equipment is sized separately.
- Tesla Backup Switch: A different Tesla product for Powerwall backup switching at the meter. It is not required for Wall Connector charging.
Check current manufacturer documentation before combining components. Matching a connector type or voltage does not by itself confirm that two products are supported together.
Important Considerations
- Hardwired only. Tesla requires hardwired branch circuits to a disconnect or breaker. Do not install cord-and-plug type connections.
- Breaker programming. Circuit breaker size is programmed during commissioning. Output must not exceed the installed breaker rating.
- Installation height and reach. Tesla lists recommended and min/max mounting heights and a recommended installation area for the 24 ft cable so the handle reaches the vehicle without strain.
- Powershare home backup (system feature). Tesla's Powershare System Installation Manual covers Universal Wall Connector part family 1734412-XX-X when installed with the other Powershare system equipment Tesla documents for a site (including Powershare Gateway and Backup Switch). Vehicle eligibility and site configuration also apply. This listing is the Wall Connector only; additional Powershare equipment is sold separately.
