PV Cable 30', MC4, 10AWG
SKU44.003

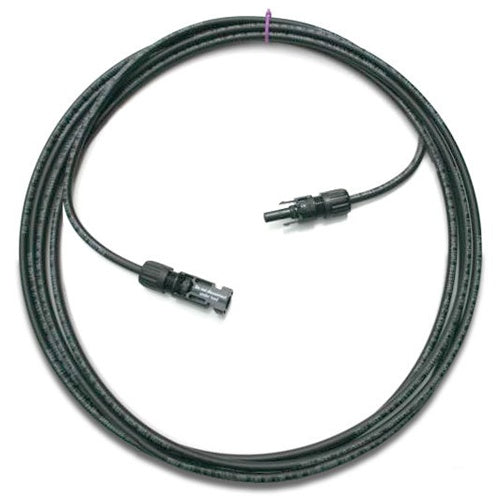

This is a 30-foot, 10 AWG photovoltaic (PV) extension cable with MC4 connectors on the ends. It bridges the gap when solar module leads are too short to reach the next module, a combiner, or other DC equipment.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 4.5 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
This is a 30-foot, 10 AWG photovoltaic (PV) extension cable with MC4 connectors on the ends. It bridges the gap when solar module leads are too short to reach the next module, a combiner, or other DC equipment.
Check the wire listing, voltage and temperature markings on the cable jacket against your module and equipment documentation before installing. Also confirm the connector brand.
Best For
- DC PV extension runs about 30 ft: When module leads are too short and a pre-terminated 10 AWG MC4 cable is specified.
- Spanning module-to-module or array-to-equipment gaps: Where a pre-terminated cable avoids field-crimping MC4 ends.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | PV extension cable |
| Length | 30 ft |
| Gauge | 10 AWG |
| Connectors | MC4 type |
| Wire listing, voltage, temperature | Check the wire listing, voltage and temperature markings on the cable jacket against your module and equipment documentation |
| Source | AltE Store listing for this cable, retrieved Oct 8, 2026 |
What You May Also Need
Usually required
- PV modules and DC equipment that use mating MC4 connectors of the same series as the shipped ends.
- Overcurrent protection and conductor sizing per the module/inverter documentation and local code.
May be required
- Other lengths in this AltE family: 15', 60', 100'.
- Heyco 5-hole PV cordgrip (M3234GBR-SM): Sealed entry into an enclosure when the cable OD matches the gland.
Optional upgrades
- Cable & Wiring: Related PV wiring accessories.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Confirm MC4 mating with your modules and equipment. "MC4-compatible" brands are not always identical.
- Do not assume ampacity, voltage or temperature from the title alone. Read the jacket markings on the cable you receive.
- Protect cable from abrasion and UV exposure per NEC Article 690 and the raceway rules that apply to the job.
