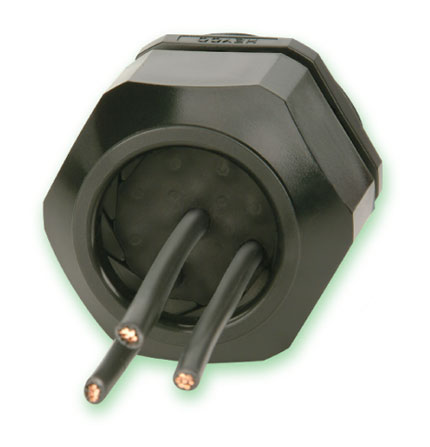

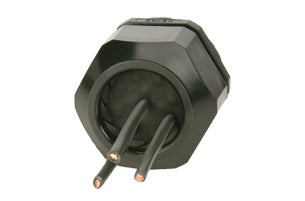

Heyco-Tite Liquid Tight Cordgrip for PV Cable, 5-Hole, 3/4" NPT – M3234GBR-SM
SKUM3234GBR-SM
The Heyco M3234GBR-SM is a 5-hole Heyco-Tite liquid-tight cordgrip (SMCG 3/4) for PV cable. Heyco's solar liquid-tight cordgrip datasheet and product page list five holes for 4.4–5.5 mm conductors, a skinned-over break-thru gland, assembled metal locknuts included, and an IP 68 rating.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Heyco M3234GBR-SM is a 5-hole Heyco-Tite liquid-tight cordgrip (SMCG 3/4) for PV cable. Heyco's solar liquid-tight cordgrip datasheet and product page list five holes for 4.4–5.5 mm conductors, a skinned-over break-thru gland, assembled metal locknuts included, and an IP 68 rating.
Skinned-over holes let you use from one to five of the available openings while unused holes stay liquid-tight.
Best For
- Multiple PV conductors into an enclosure: Junction boxes or combiner entries sized for 3/4" NPT.
- Jobs that specify M3234GBR-SM: When the PV cable OD falls in the 4.4–5.5 mm gland range.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Heyco-Tite liquid-tight cordgrip for PV cable, multi-hole |
| Part number | M3234GBR-SM |
| Description | SMCG 3/4 |
| Hub | 3/4" NPT |
| Holes | 5 (skinned-over break-thru) |
| Cable diameter range | 4.4–5.5 mm |
| Clearance hole dia. | 1.109 in (28.2 mm) |
| Material | Nylon 6/6 with TPE sealing gland |
| Certifications | Listed under Underwriters' Laboratories File E51579; Recognized under the Component Program of Underwriters' Laboratories File E51579 to both Canadian and U.S. requirements; Certified by the Canadian Standards Association File 93876 |
| Flammability rating | 94V-2 |
| IP rating | IP 68 |
| Locknuts | Assembled metal locknuts included |
| Source | Heyco-Tite UL Listed/Recognized and CSA Certified Liquid Tight Cordgrips for Solar Applications datasheet (Heyco PDF ModDate Jan 22, 2024; heyco.com product page retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- PV cable whose outer diameter fits the 4.4–5.5 mm gland range.
- Enclosure opening for 3/4" NPT / 1.109 in clearance.
May be required
- M3234GDA-SM: Use instead when the cable is Enphase Q Cable, not round PV wire.
Optional upgrades
- Heyco female threaded couplings and Heyco-Flex III tubing: Heyco recommends these with its multi-hole cordgrips to insulate exposed PV wiring into combiner or inverter enclosures (Heyco solar cordgrip datasheet).
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Match cable outer diameter to the 4.4–5.5 mm gland range before ordering.
- Not for Enphase Q Cable oval profiles — use M3234GDA-SM.
