IronRidge Tilt Mount Fixed Tilt Leg Kit, 30" – TM-FTL-030
SKUTM-FTL-030

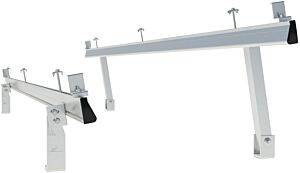

The IronRidge TM-FTL-030 is a Fixed Tilt Leg Kit with a 30" north leg for IronRidge XR Tilt Mount arrays. On flat or low-slope roofs, the legs set a fixed array tilt instead of mounting flush to the roof plane.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 3.6 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The IronRidge TM-FTL-030 is a Fixed Tilt Leg Kit with a 30" north leg for IronRidge XR Tilt Mount arrays. On flat or low-slope roofs, the legs set a fixed array tilt instead of mounting flush to the roof plane.

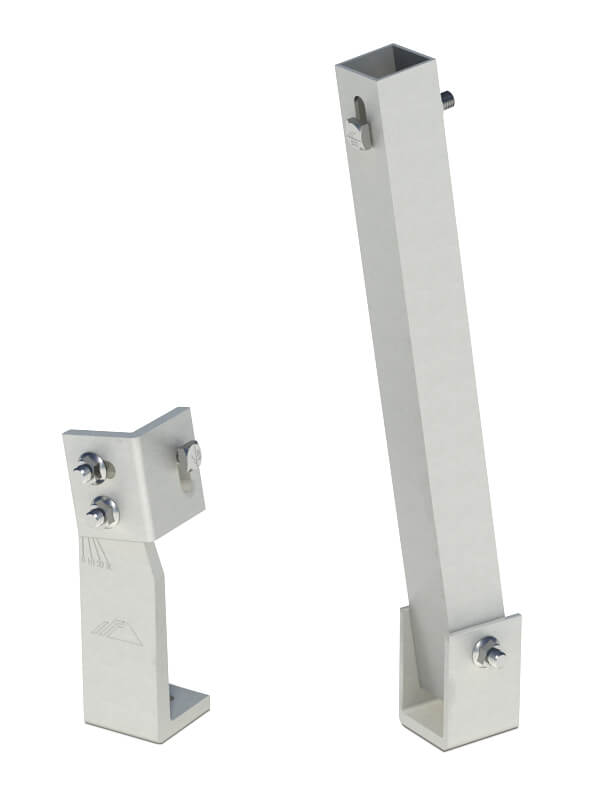

Per the IronRidge Parts Catalog and Tilt Leg Cut Sheet, each Fixed Tilt Leg Kit includes a North Tilt Leg and a South Tilt Leg, plus hardware for attaching to XR Rails. South legs ship pre-assembled with angle-indicator markings; north legs use a slotted aluminum tube and pivot bracket.
Best For
- IronRidge XR Tilt Mount layouts that specify the 30" north leg (TM-FTL-030).
- Flat or low-slope roofs on residential and commercial buildings where IronRidge Fixed Tilt Legs are paired with approved roof attachments such as the Flat Roof Attachment.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Fixed Tilt Leg Kit |
| Part number | TM-FTL-030 |
| North tilt leg length | 30" |
| Kit contents (IronRidge) | North Tilt Leg, pre-assembled South Tilt Leg, U-foot, bonding bolts/nuts/washer hardware for XR Rails (Tilt Leg Cut Sheet v1.2 BOM) |
| Materials | 6000-series aluminum legs/U-foot (mill); 300-series stainless hardware |
| System documentation | Use with IronRidge XR Tilt Mount Installation Manual Version 4.8 |
| System certifications (Tilt Mount manual) | UL 2703 Listed system; Class A System Fire Rating per UL 2703 (module types and roof slopes as listed in that manual); designed for IBC & ASCE/SEI-7 |
| Warranty (ironridge.com) | IronRidge 25-year warranty (see IronRidge terms) |
| Source | IronRidge Tilt Leg Cut Sheet v1.2; Parts Catalog v3.66; XR Tilt Mount Installation Manual Version 4.8 (© 2026) |
What You May Also Need
Usually required
- IronRidge roof attachments specified for the project (for example Flat Roof Attachment FRA-BASE-01-M1) and XR Rails sized by the design.
- Spans and cantilevers come from IronRidge Design Assistant or PE-stamped certification letters for your site.
May be required
- IronRidge Flat Roof Attachment FRA-BASE-01-M1 when the design uses fastened flat-roof bases.
- Roof Mounts for Solar Panels: Other IronRidge roof attachments for the same array.
Optional upgrades
- Solar Panel Mounts: Other IronRidge rails and mounting hardware for the array.
- IronRidge UFO module clamps to secure modules to the XR Rails, as listed in the XR Tilt Mount manual components.
- Wire clips, a rail or module grounding lug, and end caps from the same components list, for wire management, system grounding and finished rail ends.
Check current IronRidge documentation and the stamped design for the site before combining racking components.
Important Considerations
- IronRidge documents these kits for XR Tilt Mount systems with XR Rails. Confirm rail series, attachments, and tilt angle in the current Tilt Mount manual and PE package for the site.
- Set the tilt angle with the south-leg angle indicator and the stamped design for the site.
- Professional installation required. Follow IronRidge instructions and the applicable building code.
