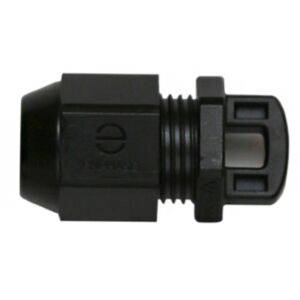

Enphase IQ Terminator Cap for Cable Ends – Q-TERM-10
SKUQ-TERM-10
The Enphase Q-TERM-10 is the IQ Terminator for unused ends of Enphase IQ Cable. The Americas accessories datasheet lists it as "IQ Terminator for unused cable ends".
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.5 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Enphase Q-TERM-10 is the IQ Terminator for unused ends of Enphase IQ Cable. The Americas accessories datasheet lists it as "IQ Terminator for unused cable ends".
After a cable is cut to length, Enphase requires a terminator on the open conductor end. The Enphase Q Cable Terminator installation guide states: use the terminator to seal the conductor end of the Enphase Q Cable; no other method is allowed.
Best For
- Cut ends of Enphase IQ Cable trunks: The far end of each cable segment, and each far end when a branch is center-fed.
- Finishing an IQ Cable run: Together with sealing caps for any unused mid-run connectors.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | IQ Terminator for unused Enphase IQ Cable ends |
| Model number | Q-TERM-10 |
| Role | Seal unused / cut IQ Cable conductor ends |
| Install note | Use the terminator to seal the conductor end of the Enphase Q Cable; no other method is allowed |
| Single use | Never unscrew the hex nut after install — unscrewing destroys the locking feature and the terminator must be replaced |
| Source | Enphase IQ Cable accessories datasheet DSH-00247-1.0 (July 2024; Region: America); Enphase Q Cable Terminator installation guide (enphase.com/download/iq-terminator-cap-installation-guide; retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- IQ Sealing Caps (Q-SEAL-10): For unused mid-run connectors (Enphase datasheet DSH-00247-1.0).
May be required
- IQ Disconnect Tool (Q-DISC-10): For releasing locked connectors (Enphase datasheet DSH-00247-1.0).
- IQ Cable Clips (Q-CLIP-100): Secure the terminated end so cable and terminator do not touch the roof (Enphase Q Cable Terminator guide).
Optional upgrades
- Cable & Wiring: Other IQ Cable accessories for the same branch.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Terminators and sealing caps are not interchangeable.
- Install only with the prescribed tools and method. Do not substitute tape or wire nuts.
- Do not expose the terminator or cable connections to directed pressurized liquid, continuous immersion, or continuous tension.
- Use each terminator only once. If it is opened after install, replace it.
