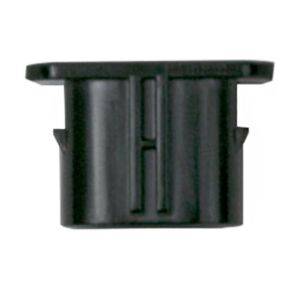

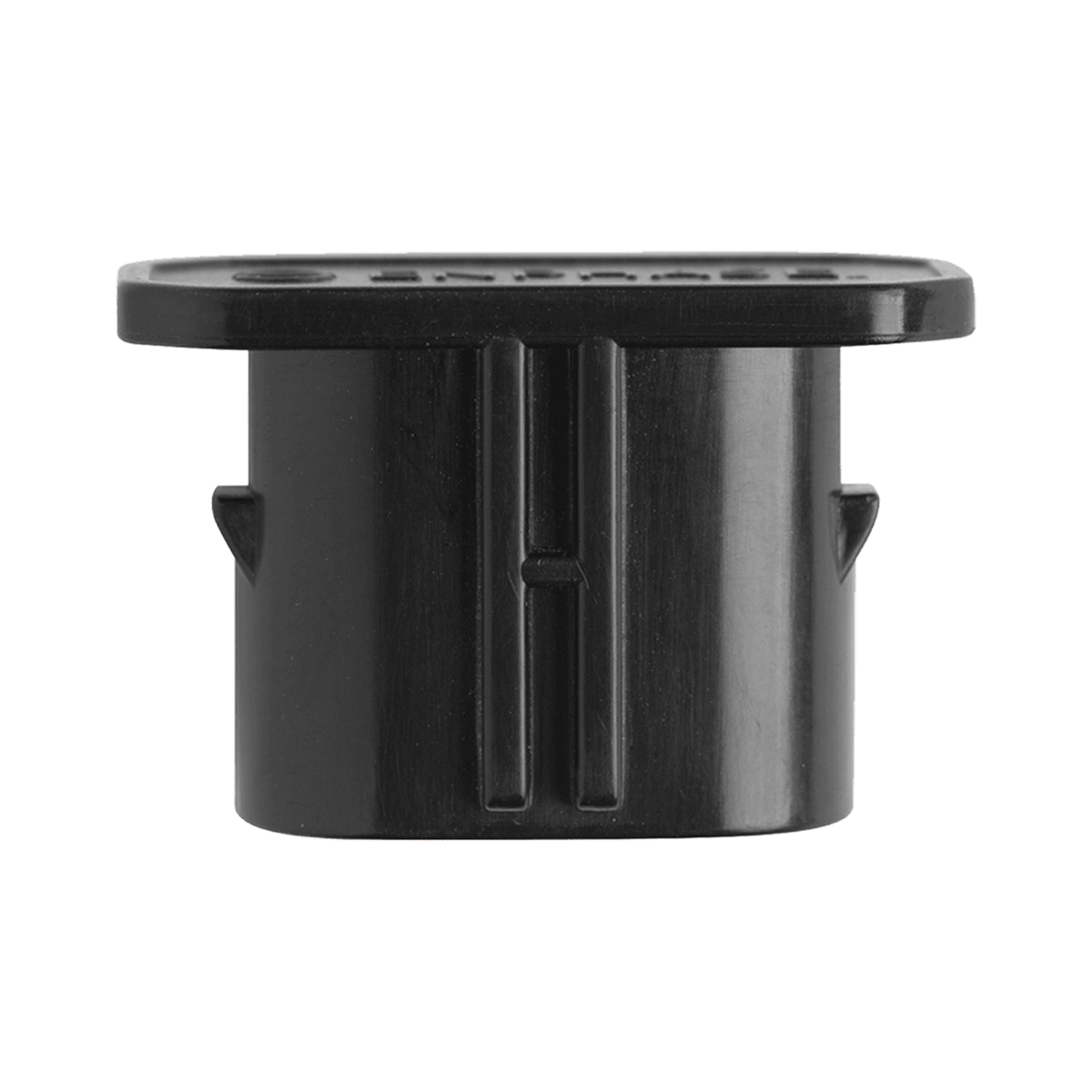

Enphase IQ Sealing Cap, Female, Pack of 10 – Q-SEAL-10
SKUQ-SEAL-10
The Enphase Q-SEAL-10 is a female IQ Sealing Cap for unused connectors on Enphase IQ Cable. Enphase lists Q-SEAL-10 as "IQ Sealing Caps (female): One needed to cover each unused connector on the cabling."
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview
The Enphase Q-SEAL-10 is a female IQ Sealing Cap for unused connectors on Enphase IQ Cable. Enphase lists Q-SEAL-10 as "IQ Sealing Caps (female): One needed to cover each unused connector on the cabling."
An unused open connector on an IQ Cable run is not finished until it is capped. Sealing caps and terminators solve different openings: Q-SEAL covers unused mid-run connectors; Q-TERM seals a cut cable end.
Best For
- Unused female connectors on Enphase IQ Cable: Open drops on a trunk or center feed that will not receive an IQ Series unit.
- Completing an IQ Cable bill of materials: Alongside terminators, disconnect tools and clips named in the same Enphase accessories datasheet.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Female IQ Sealing Cap for unused IQ Cable connectors |
| Model number | Q-SEAL-10 |
| Role | One needed to cover each unused connector on the cabling |
| Related model | Q-BA-CAP-10 (separate model, shown with Q-SEAL-10 on the datasheet) |
| Source | Enphase IQ Cable accessories datasheet DSH-00247-1.0 (July 2024; Region: America) |
What You May Also Need
Usually required
- IQ Terminator (Q-TERM-10): For cut/unused cable ends — a different opening than a sealing cap (Enphase datasheet DSH-00247-1.0).
May be required
- IQ Disconnect Tool (Q-DISC-10): Enphase plans at least one per installation for IQ Cable connectors, DC connectors, and AC module mount (Enphase datasheet DSH-00247-1.0).
- IQ Cable Clips (Q-CLIP-100): Enphase lists these to fasten cabling to racking or secure looped cabling (Enphase datasheet DSH-00247-1.0).
Optional upgrades
- Heyco cordgrip for Enphase Q Cable (M3234GDA-SM): Liquid-tight entry into an enclosure where the Q Cable leaves the array (Heyco Enphase Q Cable cordgrip datasheet).
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Do not leave unused IQ Cable connectors open outdoors. Enphase requires a sealing cap on each unused connector.
- Q-SEAL is not a cable-end terminator. Use Q-TERM for cut ends.
- Not for DC MC4 module leads. This is an IQ Cable AC-connector accessory.
- Plan one cap for every unused connector on the run.
