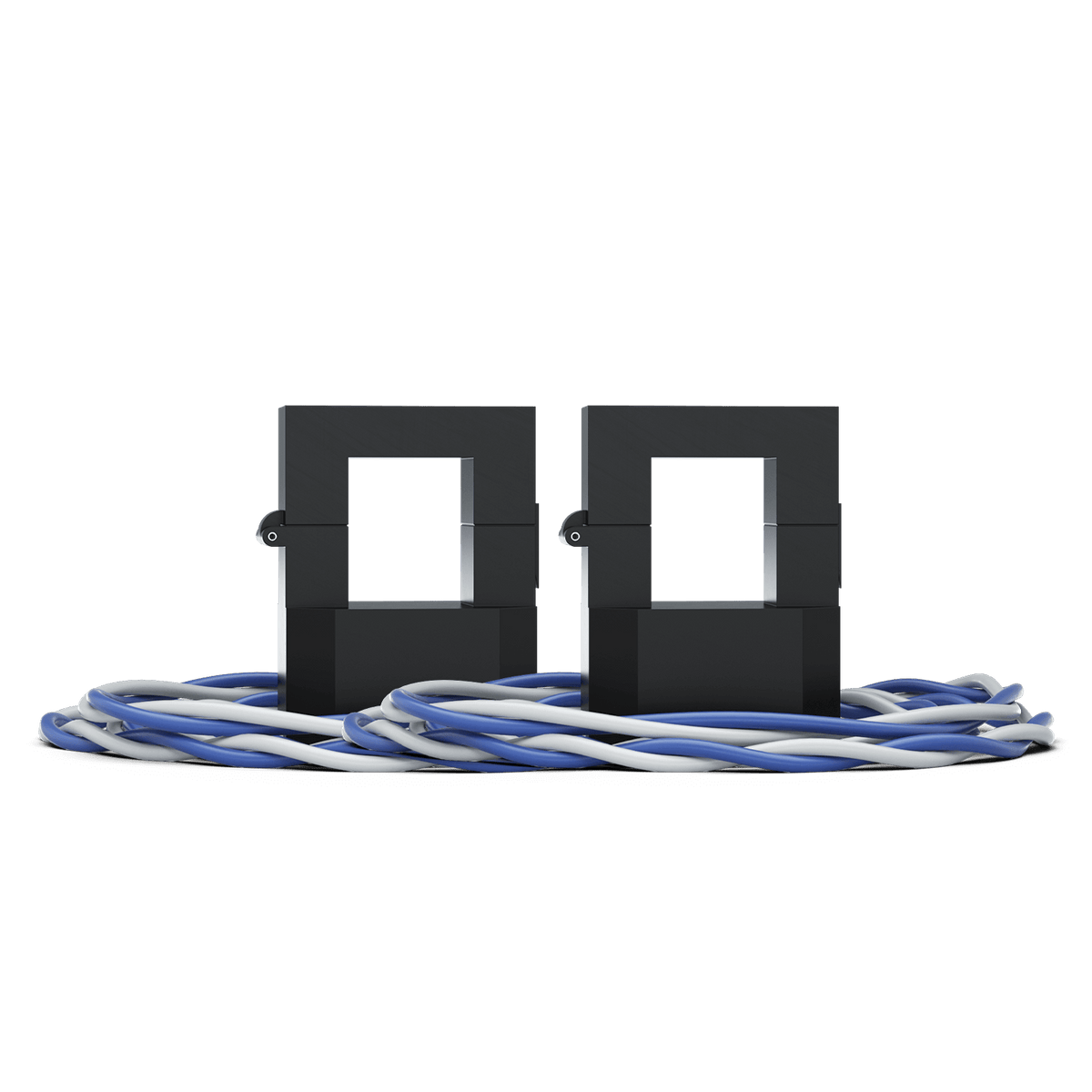

Enphase Split-Core Consumption Monitoring CT for IQ Gateway – CT-200-SPLIT
SKUCT-200-SPLIT
The Enphase CT-200-SPLIT is a split-core 200 A current transformer for metered IQ Gateways (and IQ Combiner) to measure household consumption without cutting the conductor.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.5 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Enphase CT-200-SPLIT is a split-core 200 A current transformer for metered IQ Gateways (and IQ Combiner) to measure household consumption without cutting the conductor.
Accuracy is ±2.5% on Enphase Americas documentation. The IQ Gateway has metering ports for up to two consumption CTs (DSH-00111-6.0).
Best For
- Adding consumption metering to a metered IQ Gateway that does not already have clamp CTs installed.
- Retrofits where a split-core CT is preferred so the conductor does not need to be cut (unlike a solid-core production CT).
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Split-core consumption / metering CT |
| Model | CT-200-SPLIT (also referenced as U40002 on the QIG) |
| Primary rating | 200 A; 250 V; 45–66 Hz (QIG) |
| Accuracy (Enphase) | ±2.5% |
| Aperture | 24.38 mm × 21.33 mm (0.96 in × 0.84 in) |
| Use | Indoor; with IQ Gateway / IQ Combiner consumption or battery metering ports as documented |
| Ambient (QIG) | −40°C to 65°C |
| Source | Enphase IQ Gateway DSH-00111-6.0; Enphase CT-200-SPLIT QIG; Enphase Component List MKT-00843-1.0 |
What You May Also Need
Usually required
- A metered IQ Gateway or IQ Combiner with available consumption CT terminals.
May be required
- IQ Gateway ENV2-IQ-AM1-240 when a standalone gateway needs consumption CTs.
- CT-200-CLAMP if the combiner or design calls for clamp-style CTs instead of split-core.
Optional upgrades
- Monitoring & Control: Related metering and monitoring accessories.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Follow Enphase polarity / arrow orientation; reversed CTs produce incorrect import/export readings.
- IQ Combiner 5 ships with two consumption clamp CTs; IQ Combiner 6C consumption CTs are ordered separately (DSH-00585-4.0). Match the CT type the QIG specifies for that enclosure.
- Professional installation required. Follow Enphase instructions and the NEC.
