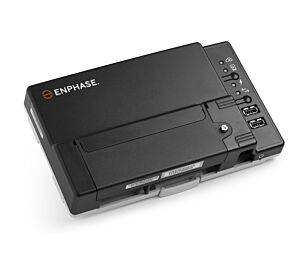

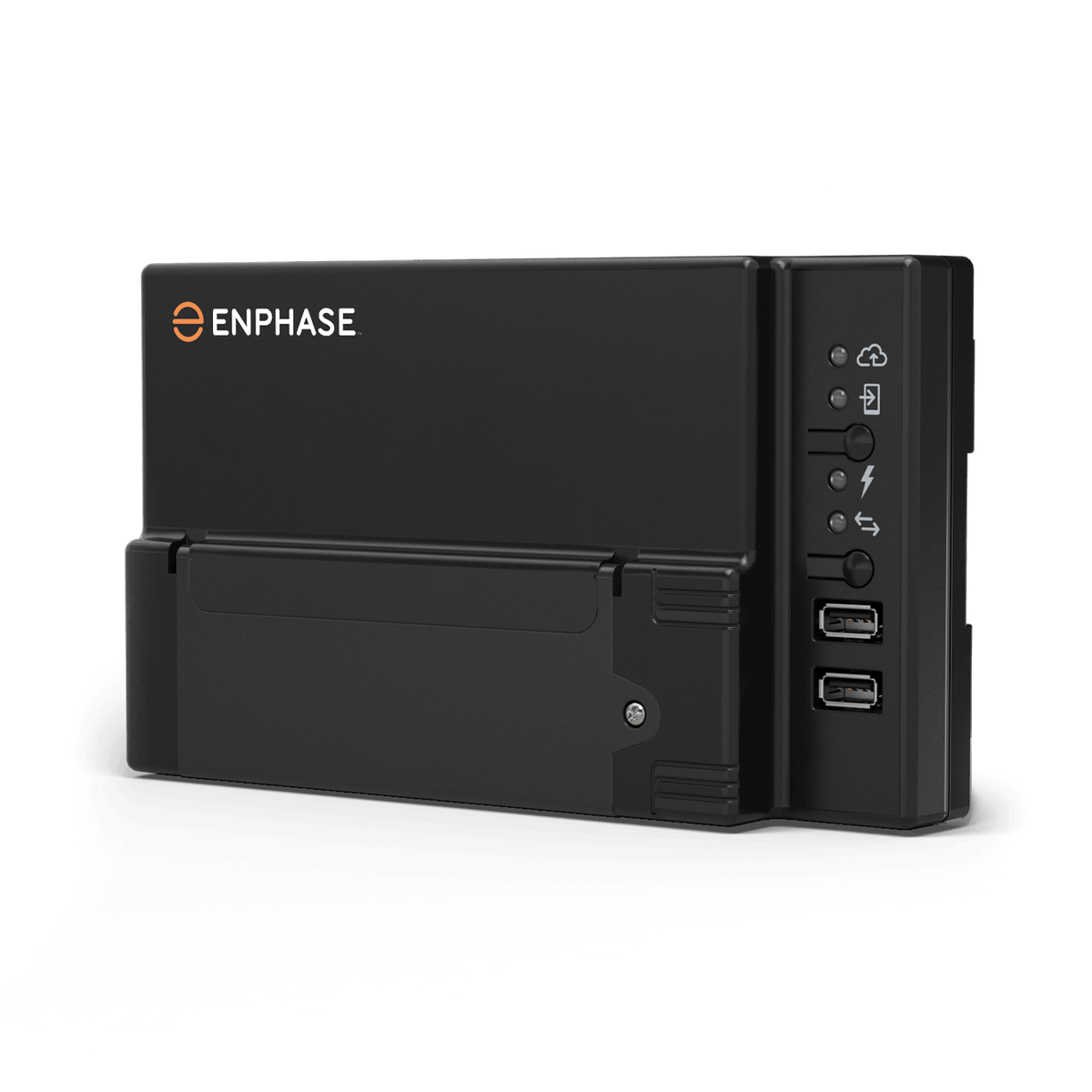

Enphase IQ Gateway (formerly IQ Envoy), Metered – ENV2-IQ-AM1-240
SKUENV2-IQ-AM1-240
The Enphase IQ Gateway ENV2-IQ-AM1-240 (formerly IQ Envoy) is the metered communications hub that delivers production and optional consumption data to Enphase Installer Portal / Cloud for residential Enphase systems.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 2.2 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Enphase IQ Gateway ENV2-IQ-AM1-240 (formerly IQ Envoy) is the metered communications hub that delivers production and optional consumption data to Enphase Installer Portal / Cloud for residential Enphase systems.
It integrates revenue-grade PV production metering (ANSI C12.20 ±0.5%) and supports consumption and battery metering at ±2.5%. One 200 A continuous-rated production CT (CT-200-SOLID) is included. ENV2-IQ-AM1-240 complies with IEEE 2030.5 (CSIP); Enphase notes it has been used in IEEE 1547:2018 testing and certification.
Best For
- Standalone metered gateway installs when an IQ Combiner with integrated Gateway is not used.
- Systems that need Wi-Fi, Ethernet, or cellular cloud connectivity plus production CT metering on the PV circuit.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | IQ Gateway (metered) |
| Model numbers | ENV-IQ-AM1-240, ENV2-IQ-AM1-240 (this listing: ENV2) |
| AC power | 120/240 V, 120/208Y V, or 127/220Y V; three-wire; 60 Hz |
| IQ Gateway breaker | 2-pole, maximum 20 A overcurrent protection required |
| Typical power consumption | 5 W |
| Microinverters polled | Up to 300 |
| Production metering | ANSI C12.20 ±0.5%; includes one 200 A continuous Production CT |
| Consumption / battery metering | ±2.5% with optional CT-200-SPLIT / CT-200-CLAMP |
| Dimensions / weight | 8.4 in × 5 in × 1.8 in; 1.09 lb (0.5 kg) |
| Ambient (ENV2) | −40°C to 50°C (−40°F to 122°F); −40°C to 46°C in an enclosure |
| Environmental rating | IP30; indoors or in NRTL-certified NEMA type 3R (or better) enclosure outdoors |
| Altitude | Up to 3000 m (9842 ft) |
| Networking | 802.11b/g/n Wi-Fi (2.4 GHz and 5 GHz), Ethernet (optional), Mobile Connect (order separately) |
| Warranty (datasheet) | 5-year limited warranty |
| Source | Enphase IQ Gateway Americas datasheet DSH-00111-6.0 (June 2025) |
What You May Also Need
Usually required
- 2-pole breaker ≤20 A for Gateway power.
- CT-200-SPLIT when whole-home consumption metering is required (the Gateway accepts up to two consumption CTs).
- Internet path: Wi-Fi, Ethernet, or Enphase Mobile Connect (cellular is mandatory for sites with IQ Battery per the datasheet accessories notes).
May be required
- COMMS-KIT-01 or COMMS-KIT-02 when the storage/controller generation requires a USB communications kit at the Gateway.
- Combiner Boxes: IQ Combiner 5-HDK, 6C, or 6C-3BRK when a combiner-integrated Gateway is preferred instead of a standalone gateway.
Optional upgrades
- Enphase Mobile Connect cellular modem, ordered separately.
- Monitoring & Control: Related sensors and system monitors.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Americas datasheet Compatibility lists IQ System Controller models SC200D111C240US01 / SC200G111C240US01 and EP200G…, IQ Battery 5P / Encharge 3T/10T, and IQ6/IQ7/IQ8 Series Microinverters.
- Professional installation required. Follow Enphase instructions and the NEC.
