Inverter + battery bundles
RUiXU Off-Grid 32
A RUiXU SUNON12 indoor off-grid inverter with two RUiXU Lithi2-16 batteries. You add a charging source and the installation materials.
Component photos
-

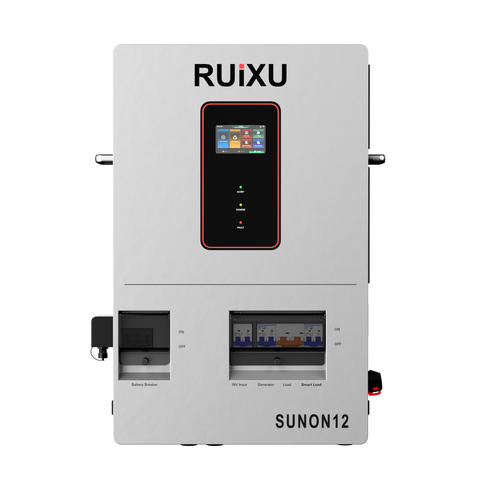

1 × SUNON12
-

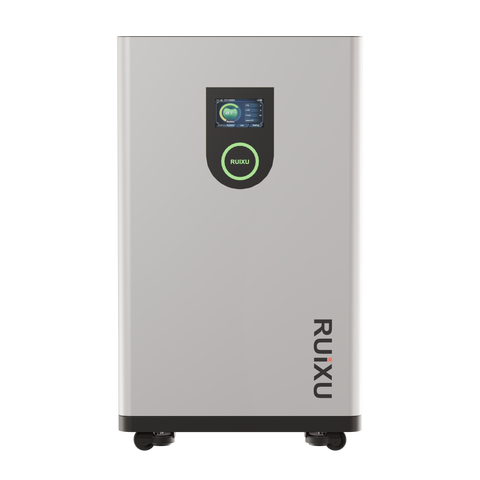

2 ×2 × Lithi2-16
Photos show individual components, not an assembled system.
Limits to know before you choose
- The SUNON inverters are indoor-only (IP20) off-grid inverters. This bundle does not promise utility export, battery-free operation, a guaranteed runtime or whole-home coverage.
- Two Lithi2-16 batteries are rated 14 kW together against the SUNON12's 12 kW rating. Output stays subject to inverter, battery, voltage, temperature and configuration limits.
- Battery-side usable energy is not energy delivered to appliances, and a reserve you choose reduces what you can use.
- No solar panels or other charging source are included. Add a designed solar array, or a designed generator or grid charging arrangement.
Who it suits and which loads to check
Larger off-grid buildings with a charging source that you design.
List the loads you want to power, then check them against the inverter’s published rating and the battery’s power limits before ordering. In particular check:
- Continuous and starting (surge) power of motor loads such as air conditioners, well pumps and compressors.
- Load on each 120 V leg of a split-phase service, not only the total.
- Daily energy use in kWh, compared with usable battery energy after the reserve you choose.
- Your solar and charging sources, and how the system is charged when the sun is not enough.
altE does not publish a guaranteed runtime, promise utility export or battery-free operation, or claim this bundle powers a whole home. A technical support call can review your load list.
Power and capacity
| Measure | Value | Status |
|---|---|---|
| Inverter rated output | 12 kW AC (12,000 W), 120/240 V split-phase Source: SUNON12 spec sheet, File identifier 260817 | Published by manufacturer |
| Inverter maximum output power | 18,000 VA as published Duration and conditions are not stated in the figures altE read.Source: SUNON12 spec sheet, File identifier 260817 | Published by manufacturer |
| Inverter solar inputs | 2 MPPT inputs; up to 12,000 W per input; 32 A maximum input current per input Source: SUNON12 spec sheet, File identifier 260817 | Published by manufacturer |
| Inverter solar voltage | 500 Vdc maximum open-circuit voltage; 90 to 450 Vdc MPPT range Source: SUNON12 spec sheet, File identifier 260817 | Published by manufacturer |
| Inverter battery voltage | 48 V rated; 40 to 60 Vdc range Source: SUNON12 spec sheet, File identifier 260817 | Published by manufacturer |
| Inverter location and temperature | IP20, indoor only; -10 to 55 C with derating above 45 C Source: SUNON12 spec sheet, File identifier 260817 | Published by manufacturer |
| Battery usable energy (each) | 16 kWh at 100% depth of discharge, battery-side Measured under the manufacturer's test conditions. Not energy delivered to appliances.Source: Lithi2-16 data sheet, File dated 21 Jul 2025 | Published by manufacturer |
| Battery nominal voltage and capacity | 51.2 V, 314 Ah (each battery) Source: Lithi2-16 data sheet, File dated 21 Jul 2025 | Published by manufacturer |
| Battery rated DC power (each) | 7 kW Source: Lithi2-16 data sheet, File dated 21 Jul 2025 | Published by manufacturer |
| Battery maximum continuous DC power (each) | 10 kW at 20 to 35 C Subject to temperature and operating conditions.Source: Lithi2-16 manual, V2.1 | Published by manufacturer |
| Battery charge and discharge current (each) | 140 A standard, 200 A maximum Source: Lithi2-16 manual, V2.1 | Published by manufacturer |
| Battery weight (each) | 145 kg on the data sheet; about 137 kg on the manufacturer's product page Published values differ. Confirm before planning handling and delivery.Source: Lithi2-16 data sheet, File dated 21 Jul 2025 | Manufacturer values differ |
| Chosen backup reserve | Set by you. altE does not assume a reserve.Charge you keep in storage for outages. It reduces the energy available to use. | Your setting |
Nominal energy is the battery’s rated size. Usable energy is what the manufacturer says can be drawn under its test conditions, measured inside the battery. Energy delivered to appliances is lower. These are different numbers and altE does not substitute one for another. Rated inverter power is a continuous output rating; what the system can actually supply depends on the inverter, battery, voltage, temperature and configuration.
What is included, required and optional
Confirmed in this bundle
These items define the bundle.
| Component | Qty | Status | Details |
|---|---|---|---|
| RUiXU SUNON12 off-grid inverterSUNON12 | 1 | Confirmed in bundle | View product (SKU SUNON12): RUiXU SUNON12 off-grid inverter |
| RUiXU Lithi2-16 batteryLithi2-16 | 2 | Confirmed in bundle | View product (SKU LITHI2-16): RUiXU Lithi2-16 battery |
Listed by the manufacturer as supplied in the box
From manufacturer pages. altE has not yet confirmed the contents of the units it ships, so do not treat these as included until confirmed.
| Component | Qty | Status | Details |
|---|---|---|---|
| Battery communication cable (CAT6), Wi-Fi dongle and operation manualSUNON12 box | 1 | Manufacturer-listed, not yet confirmed | Listed by RUiXU in the box: one 200 cm CAT6 battery communication cable, the operation manual and a Wi-Fi dongle. Not yet confirmed against the units altE ships. |
| RJ45 patch cable and ground cableLithi2-16 box | To be specified | Manufacturer-listed, not yet confirmed | Listed by RUiXU in the Lithi2-16 box. Quantity per battery not yet confirmed. |
| Set of 1/0 AWG parallel cablesLithi2-16 box | To be specified | Manufacturer-listed, not yet confirmed | RUiXU lists OP140 or PP140 and does not say which ships. Confirm the variant before you buy any cables. |
Required for this configuration, not confirmed as included
Wiring, protection, mounting and parallel-battery connection equipment are not in the bundle or its total. Sizes, lengths, ratings and quantities marked open are still being specified.
| Component | Qty | Status | Details |
|---|---|---|---|
| Wiring: AC output, AC input or generator, and grounding conductors | To be specified | Open: to be specified | Sized and routed for your service and loads.To specify: Conductor size and type; Lengths; Grounding and bonding method |
| Protection: AC breakers, disconnects and load-panel connection | To be specified | Open: to be specified | Designed for your site and service.To specify: Breaker ratings; Interrupt ratings |
| Mounting: indoor location and inverter mounting hardware | To be specified | Open: to be specified | The inverters are rated for indoor use only (IP20).To specify: Mounting hardware for your wall or surface; Clearances from the manual |
| Wiring: battery-to-inverter DC cable assembly, positive and negative | To be specified | Open: to be specified | The Lithi2-16 manual gives 240 A maximum and 200 A continuous per power cable and terminal, with a recommended cable length under 10 m.To specify: Conductor size; Length; Terminals and connector variant |
| Protection: two-pole DC circuit breaker between battery and inverter | To be specified | Open: to be specified | The Lithi2-16 manual requires two-pole isolation.To specify: Device rating; DC interrupt rating; Enclosure and mounting |
| Mounting: battery anti-tip fixation and site anchors | To be specified | Open: to be specified | One set per battery. The manual says to fix the battery as described.To specify: Hardware and anchors for your wall or floor |
| Parallel-battery connection: RX9MP busbarRX9MP | To be specified | Open: to be specified | Part identified by RUiXU for Lithi2-16 banks; the manual requires a busbar sized for the inverter's peak power. Wiring design not yet approved by altE.To specify: Approved wiring topology |
| Parallel-battery connection: battery branch cablesPP140 | To be specified | Open: to be specified | Some or all may already be in the battery boxes; confirm the cable variant supplied before ordering so you do not buy duplicates.To specify: Quantity; Supplied variant (OP140 or PP140); Length (140 cm or 200 cm) |
| Parallel-battery connection: busbar-to-inverter trunk cable assembly | To be specified | Open: to be specified | A branch cable rated 200 A continuous cannot be assumed suitable for the inverter interface.To specify: Conductor count and gauge; Length; Terminals and connector variant |
| Parallel-battery connection: battery-to-battery communication link | To be specified | Open: to be specified | Master and slave arrangement follows the Lithi2-16 manual.To specify: Cable and connection per manual |
| A charging source (not included) | To be specified | Open: to be specified | This bundle has no solar panels. Add a designed solar array, or a designed generator or grid charging arrangement.To specify: Charging source and its design |
Optional
Not part of the bundle.
| Component | Qty | Status | Details |
|---|---|---|---|
| Additional Lithi2-16 batteryLithi2-16 | To be specified | Open: to be specified | Another battery adds stored energy, not inverter rating. It needs its own branch cable and protection and a reviewed distribution design.To specify: Distribution design, branch cable and protection for the added batteryView product (SKU LITHI2-16): Additional Lithi2-16 battery |
| Generator connection | To be specified | Open: to be specified | Needs a designed connection. Not part of this bundle. |
| Solar array | To be specified | Open: to be specified | Not part of this bundle. Add a designed array. |
Compatibility
Four separate questions, each answered from the manufacturer’s own documents where they exist. Check the current documents and your site’s requirements before you install.
-
Electrical and power
Manufacturer-documentedThe SUNON12 battery range is 40 to 60 Vdc (48 V rated); the Lithi2-16 is 51.2 V nominal. Current, protection and wiring limits follow the RUiXU manuals. Two Lithi2-16 batteries are rated 14 kW together (20 kW maximum under suitable conditions) against the SUNON12's 12 kW rating, subject to temperature, charge level and configuration.
-
Communications
Manufacturer-documentedRUiXU's Lithi2-16 manual (V2.1) lists the SUNON12 among its UL 1741 inverter models for the RUiXU battery setting. The table's layout is hard to read, and altE has not had RUiXU confirm the exact inverter setting or a minimum firmware version.
-
Physical connection and fit
Open: to be specifiedCables, protection and fixation parts are listed as required items; their lengths, ratings and quantities are still being specified.
-
System certification
Open: to be specifiedRUiXU's page lists UL 1741 for the SUNON12; altE has not read the certificate. No certificate naming this inverter and battery together has been established. Check the listing your installation requires. UL 9540A is a fire-test method. It is not a system certification, and it does not by itself cover an arbitrary inverter and battery combination.
Installation requirements
- Electrical installation must follow the manufacturers' manuals and local code, and be done or reviewed by qualified personnel.
- The SUNON inverters are rated IP20 for indoor use only. Plan an indoor, dry location with the clearances in the manual.
- You will need AC conductors and breakers, disconnects, grounding and bonding, labels, anchors and a load-panel design for your site. None of these is in the bundle.
- Motor starting, air conditioning, well pumps, per-leg loads and any generator connection need to be checked against the exact inverter before you rely on this bundle for them.
- Fix each Lithi2-16 battery as the manual describes, and keep the clearances it lists.
Documents and sources
Manufacturer documents, last checked 15 Oct 2026. Check for newer revisions before ordering or installing.
- SUNON12 product page (opens in a new tab)
- SUNON12 spec sheet (opens in a new tab)
- RUiXU Lithi2-16 product page (opens in a new tab)
- Lithi2-16 data sheet (opens in a new tab)
- Lithi2-16 manual (opens in a new tab)
- RX9MP busbar for Lithi2-16 (opens in a new tab)
- PP140 cable for the RX9MP busbar (opens in a new tab)
Delivery
Freight cost, delivery access and timing are confirmed before you pay or in your written quote. Freight is never assumed to be free, and tax is calculated and confirmed before payment.
- Freight cost, delivery access (for example liftgate or residential delivery) and timing are confirmed through checkout or your written quote. No delivery date is promised.
- Heavy equipment: the SUNON12 inverter (38.5 kg published); each Lithi2-16 battery (roughly 137 to 145 kg).
- Tax is calculated separately and confirmed before payment.
Ready to go ahead, or want a second opinion?
Equipment total $8,999.00
Sum of the 2 component prices. Freight, tax and installation materials are not included.
Request a written quoteOnline ordering is not open yet. A quote request takes no payment and places no order. Freight and availability are confirmed in the quote.
