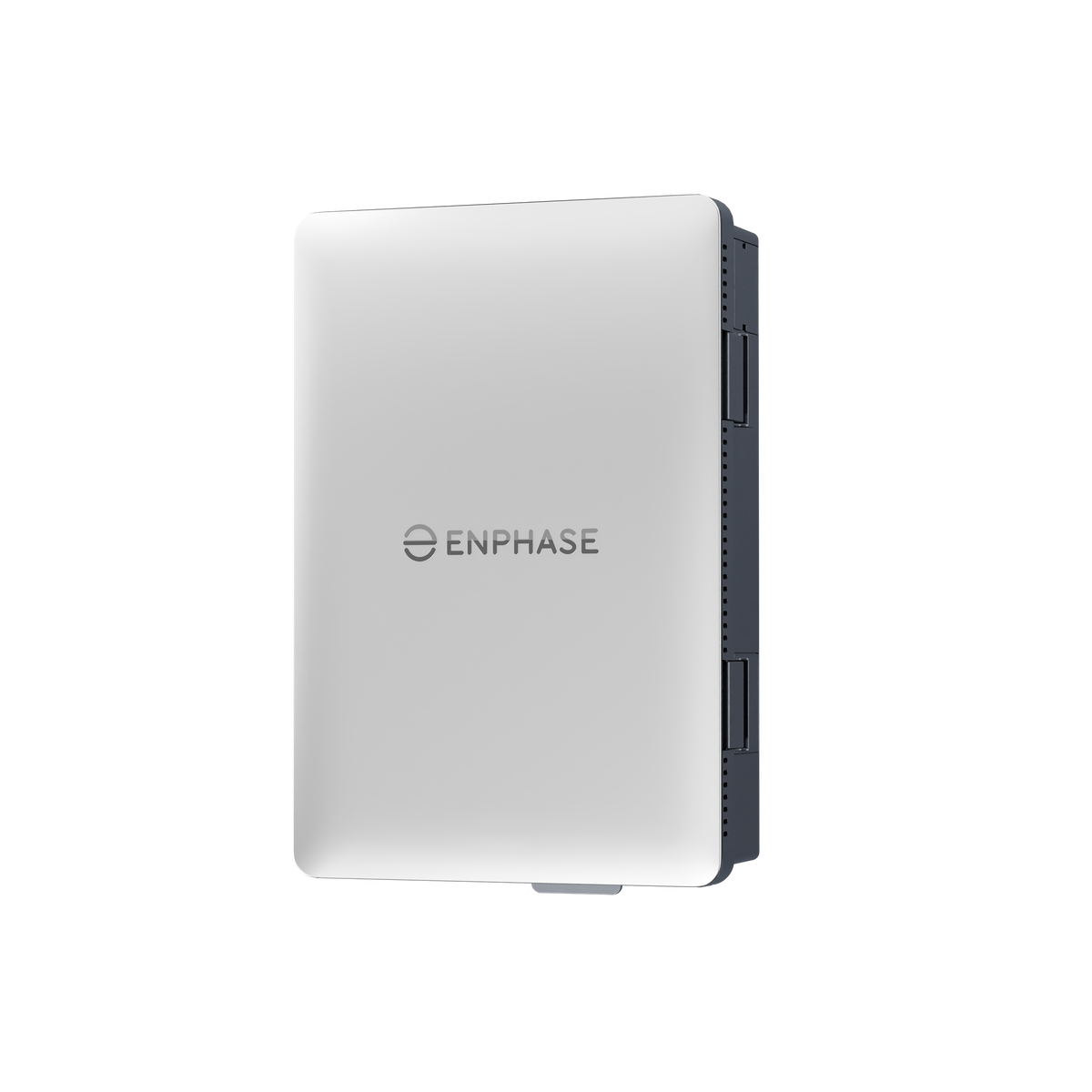

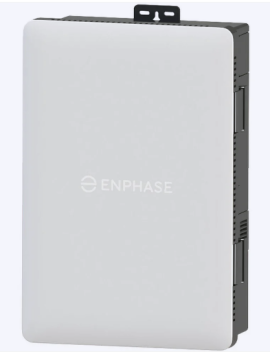

Enphase IQ Combiner 6 with 3 Pre-Installed Breakers (X-IQ-AM1-240-6C-3BRK)

Product Overview

The Enphase IQ Combiner 6C with three pre-installed breakers (X-IQ-AM1-240-6C-3BRK) is an outdoor NEMA 3R combiner that brings PV, battery, and related interconnection equipment together for Enphase IQ systems. It includes an integrated IQ Gateway, pre-wired CTs, cellular modem support, and an integrated load controller.

This SKU ships with three breakers installed: two for PV branch circuits and one for battery — reducing field breaker install time for typical IQ Microinverter + IQ Battery layouts.

Best For

• Enphase IQ Series Microinverter systems with IQ Battery
• Residential installs that want a single outdoor combiner with gateway and metering CTs

Key Features

• IQ Combiner 6C with IQ Gateway and pre-wired PV/battery CTs
• Three pre-installed breakers (2 × PV, 1 × battery per Enphase)
• Spaces for PV, battery, and EV charger interconnection
• Integrated load controller
• Solar shield and active cooling for outdoor installs
• Enphase Mobile Connect cellular modem support (CELLMODEM-07-NA)

Key Specifications

• SKU: X-IQ-AM1-240-6C-3BRK
• Nominal voltage: 240 VAC split-phase (L1–L2 240 V, L–N 120 V), 60 Hz
• Max continuous PV current: 80 A
• Max continuous battery current: 2 × 59 A
• Max continuous EVSE current: 1 × 48 A
• Max continuous DER current: 160 A
• Max continuous load-controller current: 64 A
• Max continuous backfeed current: 100 A
• Enclosure: outdoor NEMA 3R
• Approx. dimensions: 26.8 in × 18.1 in × 8.7 in; ~40 lb
• Ambient: −40°C to 46°C (−40°F to 115°F)

Compatibility / Important Considerations

• Designed for Enphase IQ ecosystem (IQ Microinverters, IQ Battery, related accessories).
• Confirm breaker ratings against your array and battery model before energizing.
• Professional installation required. Follow Enphase documentation and local code.
