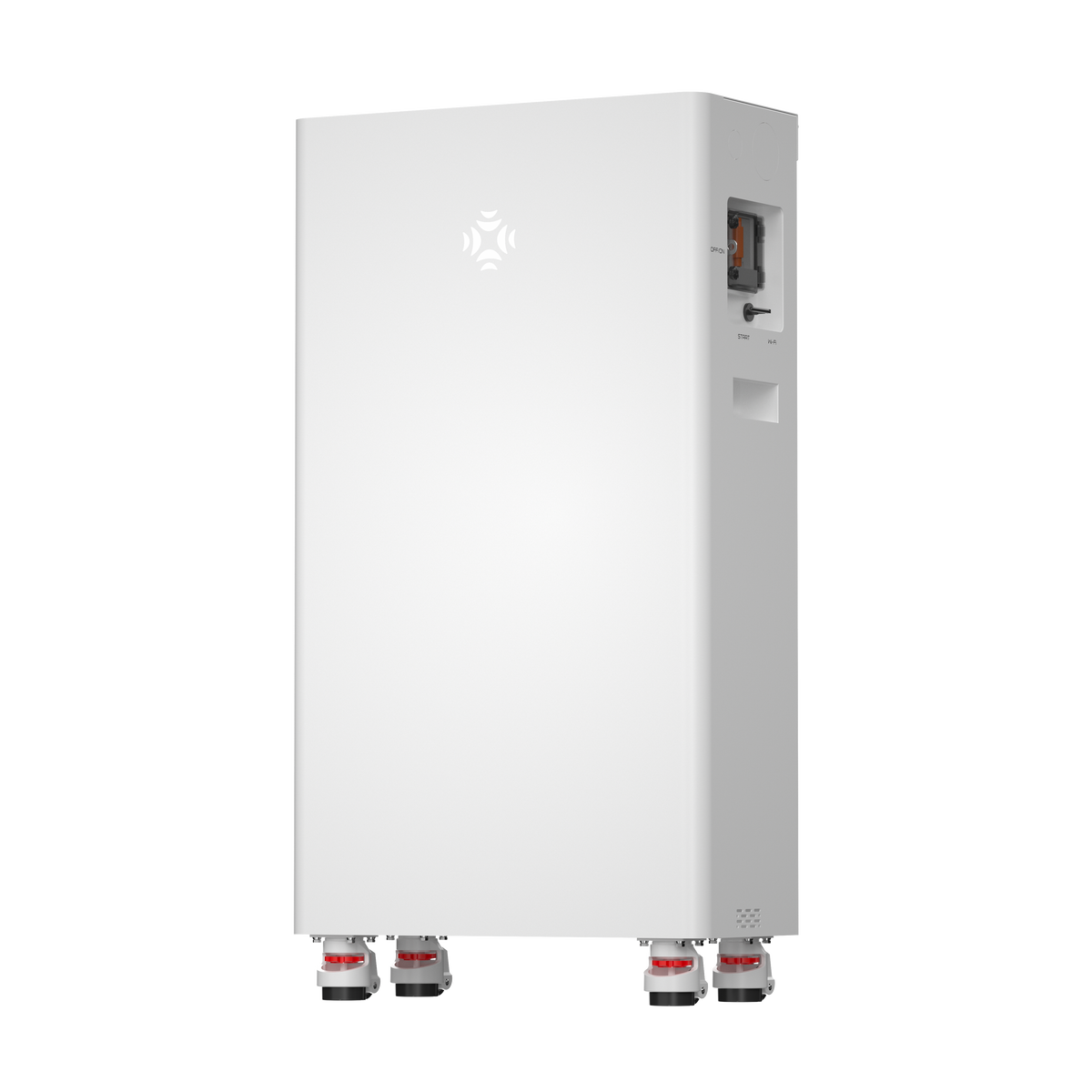

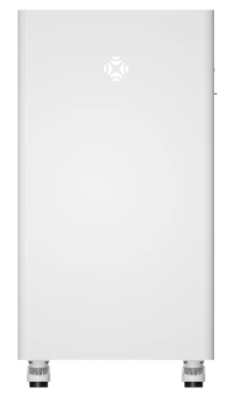

UZ Energy IG-16K-U 16kWh 51.2V Battery
SKUIG-16K-U
The UZ Energy IG-16K-U is a 16 kWh low-voltage home battery from UZ Energy's Power Lite Plus series. It uses lithium iron phosphate (LFP) cells and runs at 51.2 V nominal, the voltage used by "48 V" battery inverters. All 16.0 kWh...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 285.6 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The UZ Energy IG-16K-U is a 16 kWh low-voltage home battery from UZ Energy's Power Lite Plus series. It uses lithium iron phosphate (LFP) cells and runs at 51.2 V nominal, the voltage used by "48 V" battery inverters. All 16.0 kWh are rated as usable (at 100% depth of discharge in UZ Energy's test conditions).
The battery connects to a 48 V battery inverter or hybrid inverter, which charges it from solar, the grid or a generator and turns its DC power into AC power for the home. It can charge at up to 8.2 kW and discharge at up to 10.24 kW, with a 12.8 kW peak for 15 seconds. The cabinet is rated IP65 and includes a DC breaker, fuse, battery management system (BMS) and Wi-Fi antenna. UZ Energy lists heating and a fire-extinguishing device as options.
Best For
- Home backup: UZ Energy lists blackout and emergency backup as uses. Store energy for outages as part of a properly designed backup system with a 48 V inverter.
- Solar-plus-storage homes: Store daytime solar power for use in the evening and at night.
- High-use homes: UZ Energy says the 16 kWh size gives high-consumption homes a large energy reserve.
- Growing systems: UZ Energy allows up to 64 units in parallel (1,024 kWh) and recommends no more than 16 (256 kWh).
- Outdoor or garage installs: IP65 rated, with operation from −4°F to 131°F (−20°C to 55°C) when the battery has the heating option.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Low-voltage (51.2 V) LFP home battery with built-in BMS |
| Model | IG-16K-U (UZ Energy Power Lite Plus series) |
| Nominal / usable energy | 16.0 kWh / 16.0 kWh. Usable energy may vary with different inverters. |
| Capacity | 314 Ah |
| Nominal voltage / range | 51.2 V; 43.2–58.4 V working range |
| Charge / discharge current | 160 A rated and maximum charge; 160 A rated discharge; 200 A maximum discharge (at 70% charge or higher and cell temperature below 104°F / 40°C) |
| Power | 8.2 kW maximum charge; 10.24 kW maximum discharge; 7.8 kW recommended |
| Peak discharge | 250 A / 12.8 kW for 15 seconds |
| Charging method | Constant current at 0.5C to 57.6 V, then constant voltage at 57.6 V until current drops to 0.05C |
| Usable charge range | 10% to 100% state of charge (adjustable) |
| Communication | CAN, RS485, dry contact, Wi-Fi |
| Parallel units | Up to 64 (1,024 kWh); 16 or fewer recommended (256 kWh) |
| Cycle life | 8,000 cycles designed (0.5C, 90% depth of discharge, 77°F, to 70% state of health) |
| Operating temperature | With heating: charge and discharge −4°F to 131°F (−20°C to 55°C). Without heating: charge 32°F to 131°F (0°C to 55°C); discharge −4°F to 131°F. |
| Heating / fire extinguishing | Optional / optional |
| Enclosure and cooling | IP65; natural cooling |
| Dimensions (W × D × H) | 19.7 × 9.3 × 37.1 in (500 × 235 × 943 mm) |
| Weight | About 275.6 lb (125 kg) |
| Altitude | Up to 9,842 ft (3,000 m) |
| Certifications | UL 9540, UL 9540A, UL 1973, IEC 62619, IEC 61000, UN 38.3, FCC; CEC listed |
| Warranty | 10 years |
What You May Also Need
Usually required
- Low-voltage (48 V-class) battery inverter or hybrid inverter: Turns the battery's DC power into AC power and charges the battery. For closed-loop communication over CAN or RS485, check UZ Energy's documentation for supported inverter models.
- Battery cables: Connect the battery to the inverter. Size them for up to 200 A of discharge current and the length of the run, per code.
- Fuse, breaker or disconnect: Overcurrent protection and a way to isolate the battery, sized to electrical code and the inverter's manual.
May be required
- More IG-16K-U batteries: For more storage or more power. UZ Energy recommends no more than 16 in parallel.
Optional upgrades
- Hybrid inverter: If you want one unit that handles solar charging, battery and backup together, use a low-voltage (48 V-class) hybrid inverter selected for your system.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Cold-weather charging needs the heating option. Without heating, UZ Energy lists charging only from 32°F (0°C). Confirm whether your unit has heating before installing it somewhere that freezes.
- Maximum discharge has conditions. The 200 A maximum applies at 70% charge or higher with cell temperature below 104°F (40°C). Size loads around the 160 A rated current.
- Heavy. About 275.6 lb. Plan for moving and securing it.
- Inverter settings. Set the inverter to UZ Energy's charging method (57.6 V) and the right communication protocol.
- Installation. Install to electrical code and local rules. Battery systems usually need a permit and inspection by your local code office (AHJ).
