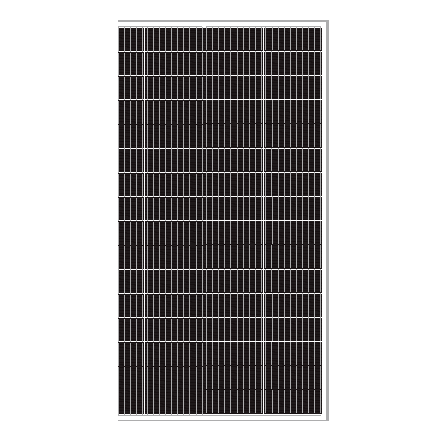

SLD Tech ST-150Q-12Y 150W 12V Monocrystalline Solar Panel

Product Overview

The SLD Tech ST-150Q-12Y is a 150 W monocrystalline solar panel with a nominal 12 V DC output. Use it to charge 12 V battery banks through a suitably rated PWM or MPPT charge controller — typical for RV, marine, cabin, and other off-grid 12 V systems.

At 150 W with Vmpp ≈18.5 V, it delivers more current than smaller 50–100 W 12 V panels, so it suits medium off-grid loads when roof or rack space allows a ~45 × 28 in module.

Best For

• 12 V RV, marine, cabin, and portable off-grid battery charging
• Remote monitoring, lighting, and telecom sites on 12 V banks
• DIY and installer projects that need a documented 150 W / 12 V mono module

Key Features

• 150 W monocrystalline; 21.3% module efficiency (STC)
• Nominal 12 V DC; anodized frame; low-iron tempered glass
• Wind / snow load: 2,400 Pa / 5,400 Pa; salt-mist (IEC 61701) referenced
• 10-year product workmanship warranty; 25-year power warranty (SLD Tech datasheet)

Key Specifications

• Model: ST-150Q-12Y
• Pmax: 150 W; Vmpp: 18.53 V; Impp: 8.10 A; Voc: 21.37 V; Isc: 8.54 A
• Cells: 64 monocrystalline (4×16); module efficiency: 21.3%
• Dimensions: 44.88 × 27.76 × 1.38 in (1,140 × 705 × 35 mm); weight: 19.80 lb (8.98 kg)
• Max system voltage: 1,000 VDC; power tolerance: ±3%
• Operating temperature: −40°C to 85°C; NOCT: 47°C ±2°C
• Temp. coefficients: Voc −0.36%/K; Isc +0.07%/K; Pmax −0.38%/K

Compatibility / Important Considerations

• Size the charge controller for Impp/Isc and cold-weather Voc. Parallel panels for more current only within controller limits.
• Not Class I Division 2 rated — use SLD Tech CID2 models for hazardous locations.
• Professional or experienced DIY installation recommended; secure mounting and correct polarity are required for mobile (RV/marine) use.
