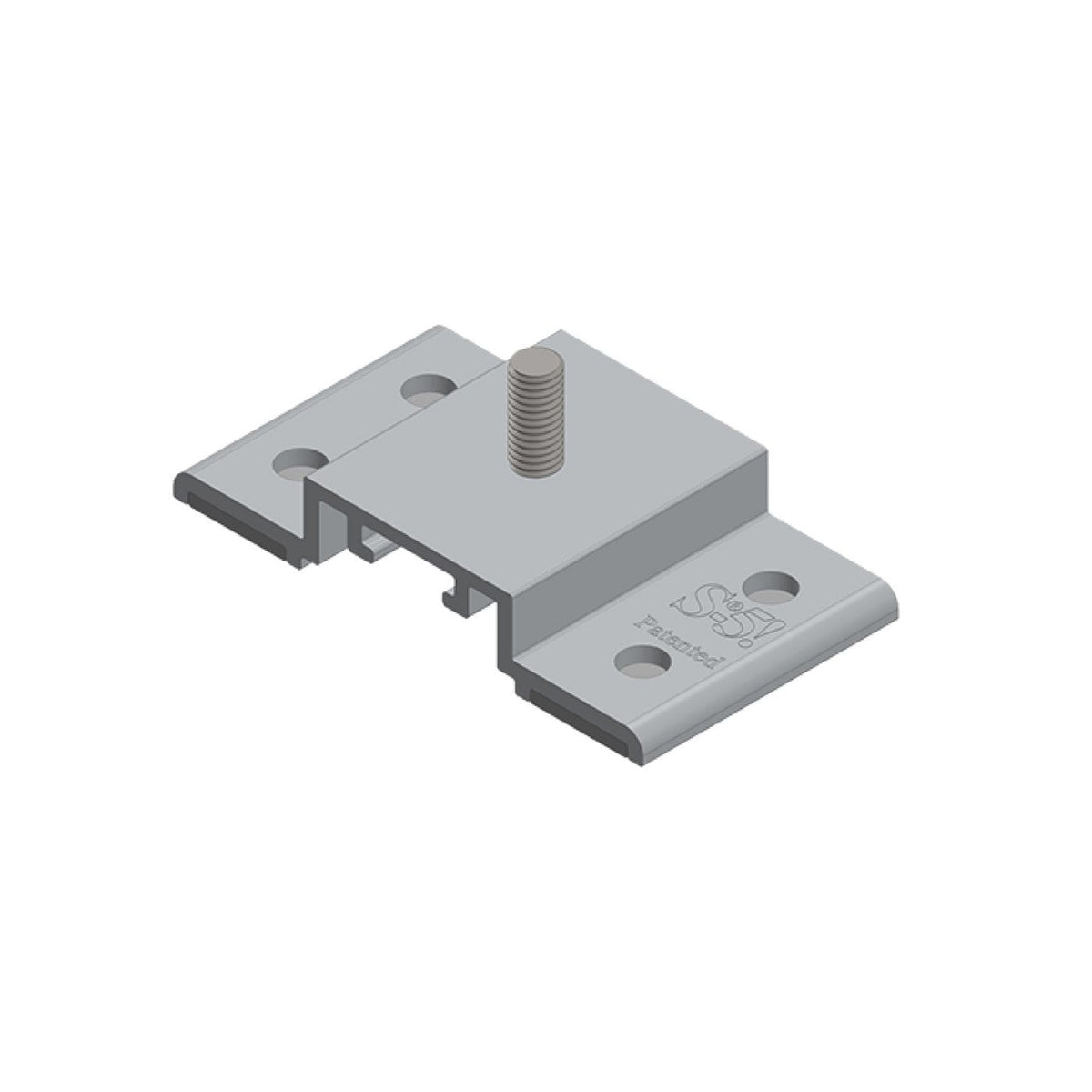

S-5! SolarFoot L-Foot Mounting Platform for Exposed-Fastened Metal Roofs
SKUSolarFoot
The S-5! SolarFoot is a mounting platform for attaching the L-foot of a rail-mounted solar system to an exposed-fastened metal roof, such as AG-Panel or R-Panel. The L-foot is not included.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 0.18 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The S-5! SolarFoot is a mounting platform for attaching the L-foot of a rail-mounted solar system to an exposed-fastened metal roof, such as AG-Panel or R-Panel. The L-foot is not included.
SolarFoot sits in the flat of the panel between the ribs and fastens through the roof into the supporting structure. S-5! says it must go into wood decking, wood or steel purlins, or trusses, never into the metal roofing alone.

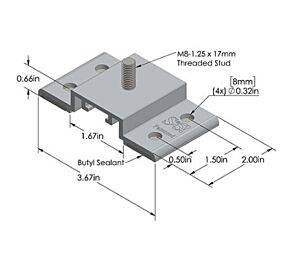

Factory-applied butyl sealant in a reservoir seals the base. An integrated stainless M8-1.25 stud and an M8 hex flange nut hold the L-foot.
Best For
- Exposed-fastened metal roofs such as AG-Panel or R-Panel: S-5! says SolarFoot fits almost any trapezoidal-rib, exposed-fastened profile.
- Rail systems that use an L-foot: S-5! describes SolarFoot as a pedestal for the L-foot of a rail-mounted system and says it is compatible with rail manufacturers' L-foot components.
- IronRidge XR Flush Mount: IronRidge's XR Flush Mount Installation Manual (Version 5.2) lists SolarFoot among the third-party roof attachments tested or evaluated with the XR Flush Mount system. IronRidge says to follow S-5!'s instructions for installation.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | L-foot mounting platform for exposed-fastened metal roofs (attaches into deck or structure) |
| Roof profiles (per S-5!) | Exposed-fastened metal roofing such as AG-Panel or R-Panel; placed in the flat of the panel, straddling minor striations |
| Mounting (per S-5!) | Through the roof into wood decking, wood or steel purlins, or trusses; never into metal roofing alone. |
| Seal (per S-5!) | Factory-applied butyl sealant in a reservoir |
| Attachment point | Integrated M8-1.25 stainless steel stud; M8-1.25 stainless steel hex flange nut included |
| Material (per S-5!) | Aluminum and stainless components |
| Fasteners | Sold separately. S-5! lists 1/4-14 self-drilling screws (metal) or 1/4-14 Type 17 milled-point screws (wood), 1-1/2" to 2-1/2" long. |
| System listing | IronRidge lists SolarFoot among the tested or evaluated third-party roof attachments for its UL 2703 listed XR Flush Mount system (IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026), p. 5). |
| Source | S-5! SolarFoot Installation Instructions LP66-V1.0_08/17; S-5! SolarFoot brochure Version 083121; S-5! product page s-5.com/products/solarfoot/, retrieved Oct. 8, 2026; IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026) |
What You May Also Need
Usually required
- An L-foot from your rail system: Sold separately. Check that its base fits over the M8 stud. See roof mounts.
- Fasteners for your roof structure: S-5! says the fasteners in its instructions must be used when relying on tested load values.
- Rails and rail hardware: See metal roof mounts.
May be required
- Tools: S-5! lists an electric screw gun, rag, string line, tape measure, a 3/8" hex socket and a 13 mm (or 1/2") hex socket.
Optional upgrades
- A string line: Helps keep a row of SolarFeet aligned.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Into structure only. S-5! says SolarFoot must never be fastened into the metal roofing alone.
- Attachment spacing. S-5! says attachment frequency and spacing for PV arrays are the system designer's responsibility.
- Engineering is your responsibility. S-5! says the user or installer is responsible for all engineering and design, including spacing. S-5! publishes load test results on its website for load-critical designs.
