S-5! S-5-N Clamp for 1" Nail Strip Metal Roof Profiles
SKUS-5-N
The S-5! S-5-N clamp is a non-penetrating clamp for 1" nail-strip (nail-flange) standing seam metal roofs. S-5! says it fits profiles up to 1" (25 mm) tall with a base-of-rib dimension under 0.82" (20 mm).
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.5 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The S-5! S-5-N clamp is a non-penetrating clamp for 1" nail-strip (nail-flange) standing seam metal roofs. S-5! says it fits profiles up to 1" (25 mm) tall with a base-of-rib dimension under 0.82" (20 mm).

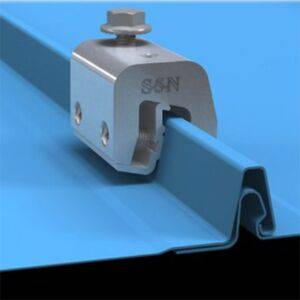

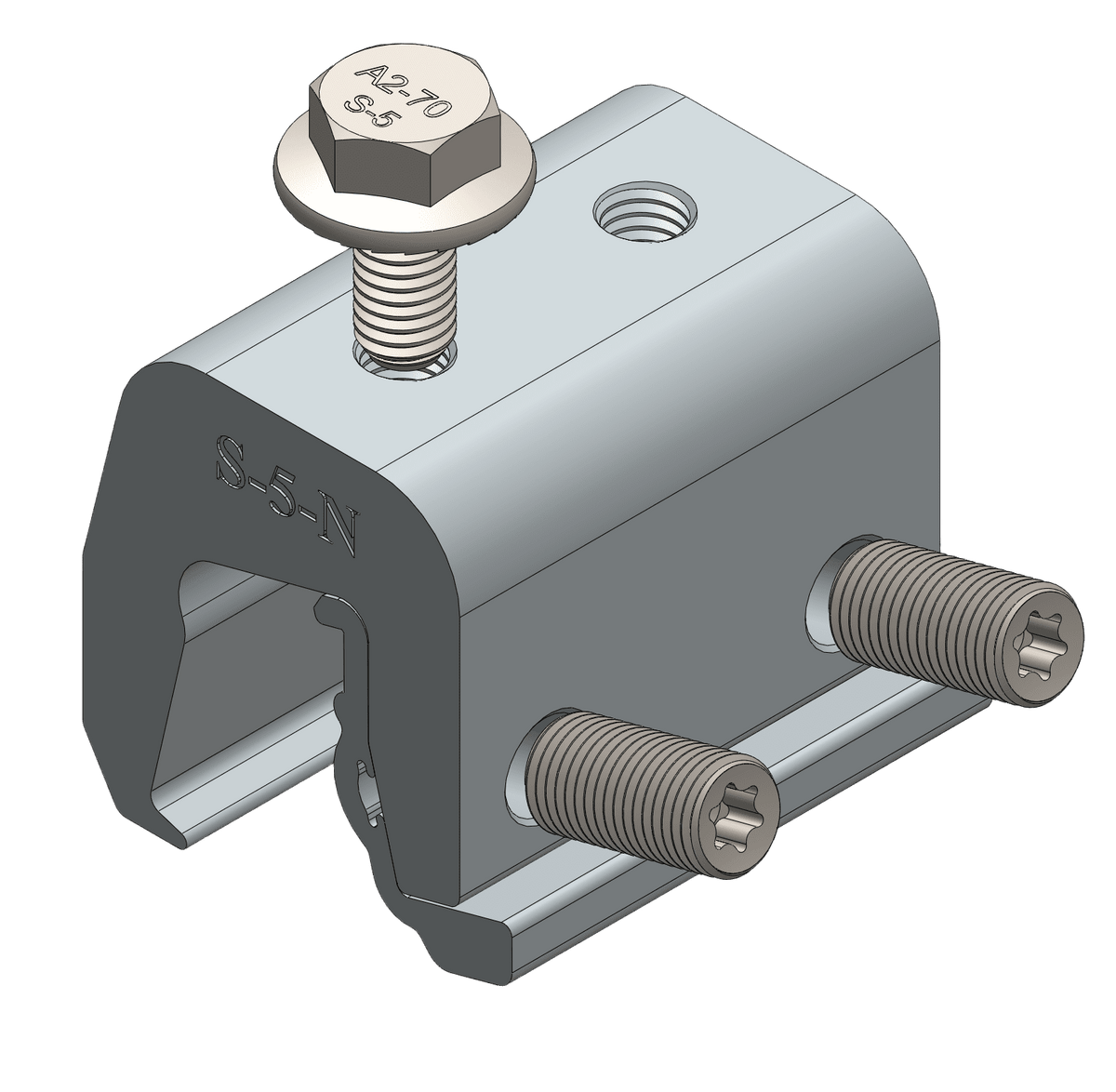

An N insert sits against the base of the seam, and the clamp fits over the seam and insert. Two angled T-30 Torx setscrews tighten against the insert. S-5! says the insert helps the clamp fit without damaging the panel seam.
S-5! names Taylor Metals Easy Lock, ASC Building Products Skyline Roofing, McElroy Metal Meridian and New Tech Machinery FF100 as examples. This listing is the standard S-5-N, not the S-5-N Mini.
Best For
- 1" nail-strip standing seam roofs: Including the profiles S-5! names, and roofing types with similar profiles.
- Rail-mounted solar on IronRidge XR Flush Mount: IronRidge's XR Flush Mount Installation Manual (Version 5.2) lists the S-5-N among the third-party roof attachments tested or evaluated with the XR Flush Mount system. IronRidge says to follow S-5!'s instructions for installation.
- Snow retention and other heavy-duty attachments: S-5! lists these uses for the standard S-5-N.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Non-penetrating standing seam clamp for nail-strip profiles, standard (two setscrews) |
| Roof profiles (per S-5!) | Nail-flange standing seam up to 1" (25 mm) tall, base-of-rib dimension under 0.82" (20 mm); examples: Taylor Metals Easy Lock, ASC Skyline Roofing, McElroy Meridian, New Tech Machinery FF100 |
| Included per clamp (per S-5!) | Two 3/8 × 0.90" (10 × 23 mm) setscrews; one M8 × 16 mm hex flange bolt; one N insert; T-30 Torx bit tip provided |
| Roof penetration | None; non-penetrating clamp (S-5!) |
| Material (per S-5!) | Clamp for most common metal roofing materials excluding copper; all included hardware stainless steel |
| Certifications (per S-5!, standard clamps only) | ICC-ES (ESR-3869); FPA HVHZ Approved (Florida product approval FL46688); IAPMO/UES (ER-805); UL2703; LA County Research Bulletin RB12 (specific profiles). Listed on the S-5! product page (s-5.com/products/s-5-n-clamps/, retrieved Oct. 8, 2026); report numbers from ICC-ES, floridabuilding.org, IAPMO UES and LA County DPW. |
| System listing | IronRidge lists S-5-N among approved S-5! metal roof clamps for XR Flush Mount, with certification including bonding to painted and Galvalume roofs (IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026)) |
| Source | S-5! S-5-N & Mini Install Instructions (PDF dated Oct. 7, 2022); S-5! S-5-N clamps brochure Version 120925; S-5! product page s-5.com/products/s-5-n-clamps/, retrieved Oct. 8, 2026; ICC-ES ESR-3869 (reissued Aug. 2026); Florida product approval FL46688; IAPMO UES ER-805 (revised Sept. 15, 2025); LA County DPW Research Bulletin RB12 (Jan. 24, 2022); IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026) |
What You May Also Need
Usually required
- Rails and rail hardware, or other ancillaries: Attached with the included M8 bolt. See metal roof mounts.
- A screw gun and a dial-calibrated torque wrench: S-5! says not to use a clicking torque wrench for setscrew tension.
May be required
- Hand crimping tool: S-5! says seams wider than 0.82" at their widest part may need hand crimping for the clamp to fit.
- An L-foot or other rail adapter: If your rail system requires one, choose it from your rail maker's instructions.
Optional upgrades
- S-5-N 1.5 or S-5-NH 1.5: S-5! offers these for 1.5" nail-strip profiles that the S-5-N does not fit.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Copper roofs excluded. S-5!'s brochure says the S-5-N suits most common metal roofing materials excluding copper.
- 1" seams only. For 1.5" nail-strip profiles, S-5! points to its S-5-N 1.5 and S-5-NH 1.5 clamps instead.
- Engage the fold. S-5! says the toe of the clamp must engage beneath the fold of the seam. Tighten the two setscrews alternately to the torque for your roof gauge.
- Moving a clamp. S-5! says clamps may be moved after initial misplacement, but it expresses no opinion on performance after removal and reinstallation.
- Engineering is your responsibility. S-5! says the user or installer is responsible for all engineering and design, including spacing. S-5! publishes load test results on its website for load-critical designs.
