S-5! S-5-E Clamp for Double Folded Standing Seam Roof Profiles
SKUS-5-E
The S-5! S-5-E clamp is a non-penetrating clamp for double-folded standing seam metal roofs. S-5! says it is designed for traditional 1" and most 1.5" tall European-style double-folded seams in zinc, stainless, aluminum and coated steel.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.5 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview

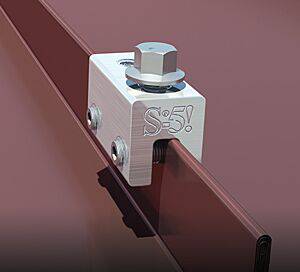

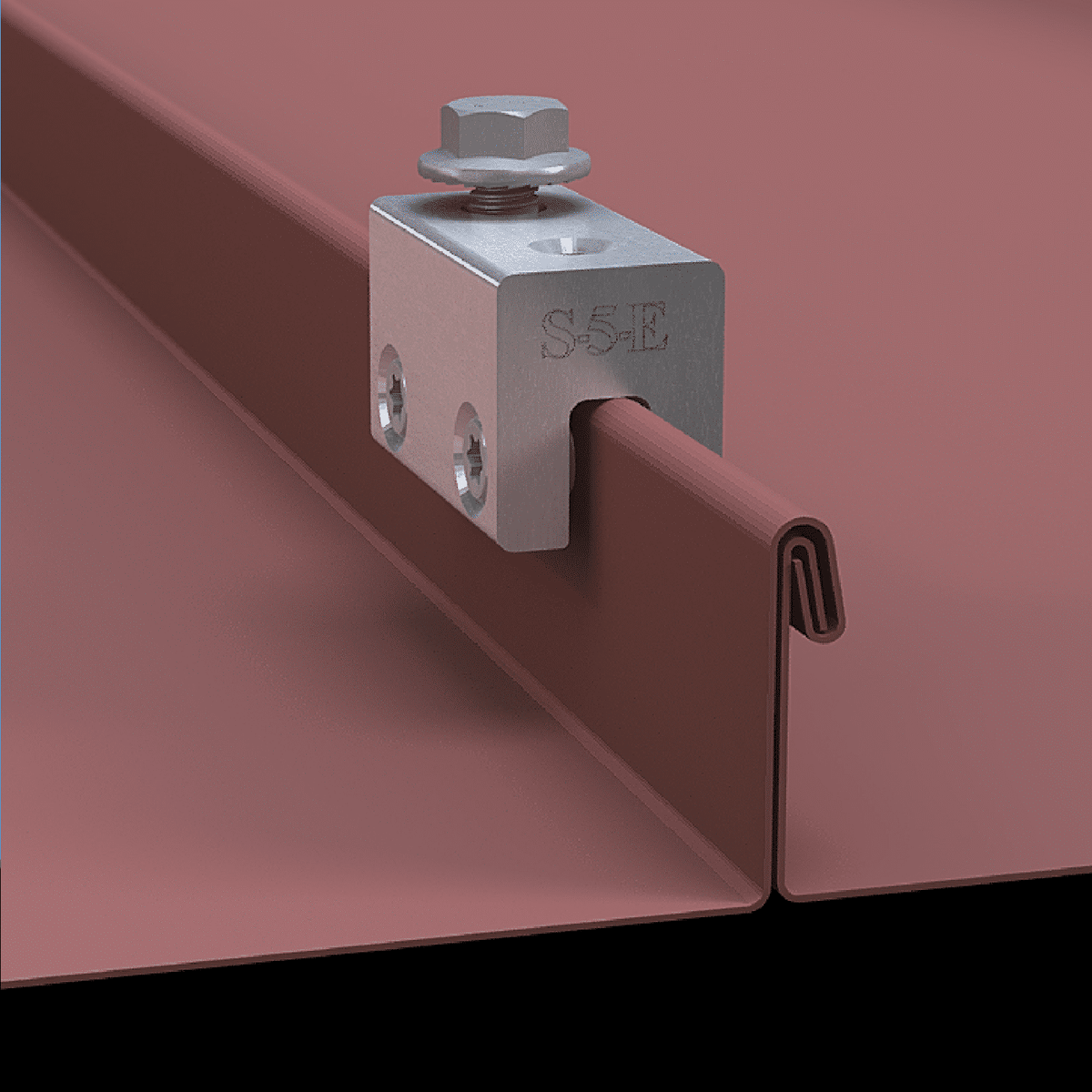

The S-5! S-5-E clamp is a non-penetrating clamp for double-folded standing seam metal roofs. S-5! says it is designed for traditional 1" and most 1.5" tall European-style double-folded seams in zinc, stainless, aluminum and coated steel.
Two round-point T-30 Torx setscrews tighten against the seam. S-5! says the setscrews dimple the seam material but do not penetrate it. Rails or other equipment attach with the included M8 bolt.
S-5! also lists Butler's MR-24 among the roofs the S-5-E fits. This listing is the standard S-5-E with two setscrews, not the one-setscrew S-5-E Mini.
Best For
- Double-folded standing seam roofs: 1" and most 1.5" tall European-style double folds, and Butler MR-24, per S-5!.
- Rail-mounted solar on IronRidge XR Flush Mount: IronRidge's XR Flush Mount Installation Manual (Version 5.2) lists the S-5-E among the third-party roof attachments tested or evaluated with the XR Flush Mount system. IronRidge says to follow S-5!'s instructions for installation.
- Snow retention and other heavy-duty attachments: S-5! lists these uses for the standard S-5-E.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Non-penetrating standing seam clamp, standard (two setscrews) |
| Roof profiles (per S-5!) | Double-folded standing seam, traditional 1" and most 1.5" tall European-style profiles; Butler MR-24; seam fold under 1/2" (13 mm) |
| Roof materials (per S-5!) | Zinc, stainless, aluminum and coated steel; S-5!'s brochure says the clamp suits most common metal roofing materials excluding copper |
| Material (per S-5!) | Structural aluminum clamp; all included hardware stainless steel |
| Included (per S-5!) | Two T-30 Torx round-point setscrews; T-30 bit tip; one M8 bolt |
| Roof penetration (per S-5!) | None; setscrews dimple the seam but do not penetrate it |
| Certifications (per S-5!, standard clamps only) | ICC-ES (ESR-3869); FPA HVHZ Approved (Florida product approval FL46688); IAPMO/UES (ER-805); UL2703; DIBt Z-14.4-719 (Germany, Rheinzink double standing seam); S-5! lists CE. Listed on the S-5! product page (s-5.com/products/s-5-e-clamps/, retrieved Oct. 8, 2026); report numbers from ICC-ES, floridabuilding.org, IAPMO UES and DIBt. |
| System listing | IronRidge lists S-5-E among approved S-5! metal roof clamps for XR Flush Mount, with certification including bonding to painted and Galvalume roofs (IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026)) |
| Source | S-5! S-5-U, S-5-S, S-5-E, S-5-B, S-5-V & Mini Installation Instructions USEBVI-V1.2-0420; S-5! S-5-E and S-5-E Mini brochure Version 111125; S-5! product page s-5.com/products/s-5-e-clamps/, retrieved Oct. 8, 2026; ICC-ES ESR-3869 (reissued Aug. 2026); Florida product approval FL46688; IAPMO UES ER-805 (revised Sept. 15, 2025); DIBt abZ/aBG Z-14.4-719 (May 12, 2022); IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026) |
What You May Also Need
Usually required
- Rails and rail hardware, or other ancillaries: Attached with the included M8 bolt. See metal roof mounts.
- A screw gun and a dial-calibrated torque wrench: S-5! says not to use a clicking torque wrench for setscrew tension.
May be required
- An L-foot or other rail adapter: If your rail system requires one, choose it from your rail maker's instructions.
Optional upgrades
- Additional clamps for snow retention: S-5! lists snow retention among the S-5-E's heavy-duty uses.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Copper roofs excluded. S-5!'s brochure says the S-5-E suits most common metal roofing materials excluding copper.
- Match the clamp to the seam. S-5! says load capacity varies with load direction, seam profile, roof material and clamp model. Confirm your seam type and gauge before relying on load values.
- Setscrew torque depends on the roof. S-5! gives one torque range for 22-gauge steel and a lower one for other metals and thinner steel. Verify tool tension periodically.
- Positioning. On machine-folded seams, S-5! says the setscrews go opposite the seam fold.
- Moving a clamp. S-5! says clamps may be moved after initial misplacement, but it expresses no opinion on performance after removal and reinstallation.
- Engineering is your responsibility. S-5! says the user or installer is responsible for all engineering and design, including spacing. S-5! publishes load test results on its website for load-critical designs.
