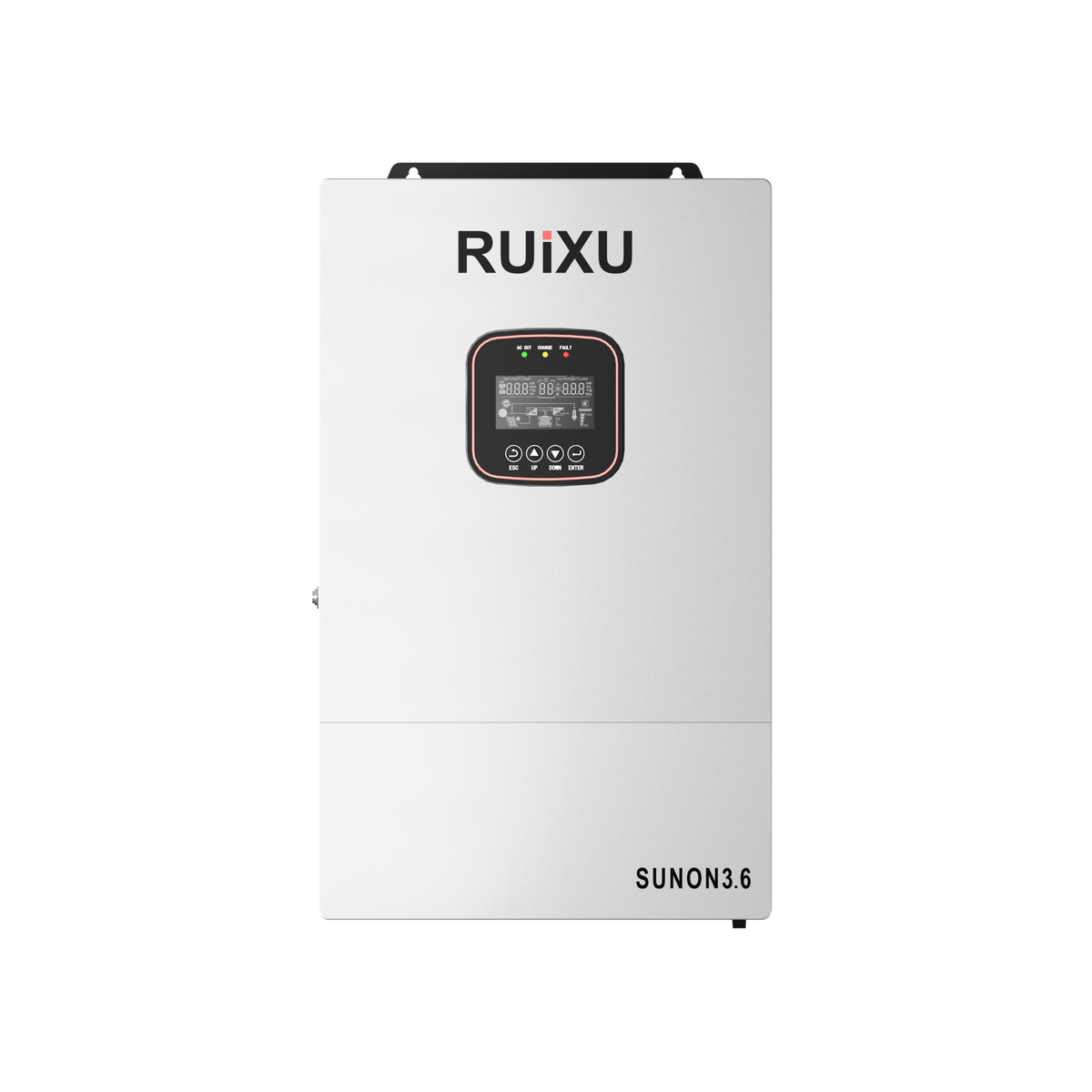

RUiXU SUNON3.6 3.6kW 48V Off-Grid Inverter, 120V
SKUSUNON3.6
The RUiXU SUNON3.6 is a 3.6 kW, 120 V all-in-one off-grid inverter for 48 V battery systems. One indoor unit combines a pure sine wave inverter, an MPPT solar charge controller and a grid/generator battery charger. It lets a cabin, shop or...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 19.2 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The RUiXU SUNON3.6 is a 3.6 kW, 120 V all-in-one off-grid inverter for 48 V battery systems. One indoor unit combines a pure sine wave inverter, an MPPT solar charge controller and a grid/generator battery charger. It lets a cabin, shop or home run from solar, batteries and a generator or grid supply.
Output is 120 VAC from one unit. RUiXU says up to six units can be connected in parallel (21.6 kW total), and that paralleled units can form split-phase or three-phase output; follow RUiXU's manual for those configurations.
It is an off-grid (stand-alone) inverter. Grid or generator power can charge the batteries and pass through to the loads. RUiXU's documents do not describe it as a grid-tie inverter that exports power to the utility.
Best For
- Small off-grid cabins, sheds and shops on 120 V: 3,600 W rated output, 7,200 VA maximum.
- Smaller solar arrays: One MPPT with 4,500 W maximum input power.
- Systems that may grow: Up to six units in parallel, per RUiXU.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | 48 V all-in-one off-grid inverter/charger with MPPT solar charger (stand-alone) |
| Model | SUNON3.6 |
| AC output | 3,600 W rated; 7,200 VA maximum; 120 VAC |
| Motor load capacity | 2 HP |
| Solar input | 1 MPPT; 4,500 W maximum input power; 27 A maximum input current; 300 VDC maximum open-circuit voltage; 90–260 VDC MPPT range |
| Charging current | 80 A maximum solar; 40 A maximum grid/generator; 80 A maximum combined |
| Grid/generator input | 90–140 VAC; 50/60 Hz; 40 A bypass overload current |
| Efficiency | MPPT tracking 99%; maximum 91% |
| Parallel | 1–6 units |
| Battery | 48 V nominal (40–60 V); lithium-ion, lead-acid or user-defined |
| Output waveform; frequency | Pure sine wave; 50/60 Hz |
| Switching time | 10 ms typical |
| Communication | RS485, CAN, USB, dry contact; Wi-Fi dongle included (RUiXU's store lists it in the box; the spec sheet calls it an external module) |
| Enclosure | IP20, indoor only |
| Temperature | −10°C to 55°C; derates above 45°C |
| Dimensions; weight | 460 × 280 × 110 mm (18.11 × 11.02 × 4.33 in); 7.8 kg (17.2 lb) |
| Certificates (per RUiXU) | FCC Part 15 Class B; UL 1741 |
| Warranty (per RUiXU) | 3 years |
| Source | RUiXU SUNON3.6 spec sheet (PDF dated Sept. 22, 2026, ruixubattery.com); RUiXU dealer product page (dealer.ruixubattery.com); RUiXU store product page (ruixubattery.com) |
What You May Also Need
Usually required
- A 48 V battery bank: The inverter takes a 48 V-class battery (40–60 V); RUiXU lists lithium-ion, lead-acid and user-defined battery types. RUiXU's Lithi2-16 battery manual (V2.1) lists the SUNON7.2 and SUNON12, but not the SUNON3.6, as compatible inverters, so confirm communication settings with the battery maker before pairing a lithium battery.
- Battery cables and DC overcurrent protection: Size them for the inverter's maximum charge and discharge current, following RUiXU's manual and the battery maker's instructions.
- Solar panels wired in strings: String voltage must stay within the 90–260 VDC MPPT range and below the 300 VDC maximum open-circuit voltage at your site's coldest temperature.
May be required
- Disconnects and breakers: DC and AC disconnects or breakers are needed; RUiXU's spec sheet lists no integrated circuit breaker.
- Generator: A generator can charge the batteries and run the loads through the AC input.
- PV cables: Extension cables carry power from the array to the inverter. Check connector types.
Optional upgrades
- Additional SUNON3.6 units: RUiXU lists 1–6 units in parallel.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Indoor only. RUiXU rates the enclosure IP20 for indoor use. Install it in a dry, ventilated space, and expect output to derate above 45°C.
- Off-grid, not grid-tie. RUiXU describes the SUNON series as off-grid inverters. Do not plan on exporting solar power to the utility with it.
- 120 V from one unit. A single SUNON3.6 cannot power 240 V loads such as well pumps or electric dryers. RUiXU describes split-phase output only from paralleled units.
- Battery settings. With closed-loop communication, set the battery type and protocol in both the battery and the inverter as the battery maker's manual describes. With lead-acid or user-defined batteries, set the charge voltages from the battery maker's data.
- Professional installation. Battery-based systems involve high DC currents. Have a qualified installer design and install the system under local electrical codes.
