IronRidge UFO Mid Clamp for XR Rails, 30–46mm, Black – UFO-CL-01-B1
SKUUFO-CL-01-B1

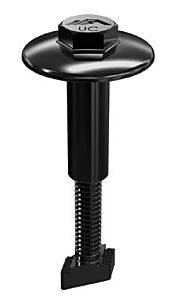

The IronRidge UFO, or Universal Fastening Object (UFO-CL-01-B1), is the mid clamp that holds two neighboring modules to an IronRidge XR rail. This listing is the black finish.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 0.09 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The IronRidge UFO, or Universal Fastening Object (UFO-CL-01-B1), is the mid clamp that holds two neighboring modules to an IronRidge XR rail. This listing is the black finish.
IronRidge says UFO comes fully assembled and lubricated. It is a single-size clamp that IronRidge lists for module frames from 30 to 46 mm.
IronRidge's XR Flush Mount manual places a UFO between each pair of modules. EFO end clamps, UFO with a Stopper Sleeve, or CAMO hidden clamps secure the row ends.
Best For
- Mid clamping on IronRidge XR rails: IronRidge's XR Flush Mount datasheet lists UFO as the system's module-to-rail mid clamp.
- Modules with 30 to 46 mm frames: IronRidge's cut sheet and manual give this range.
- Black arrays: Pair it with the EFO end clamp, black. A clear UFO is also available.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Module mid clamp for IronRidge XR rails |
| Part number | UFO-CL-01-B1 (Universal Module Clamp, Black) |
| Module frame height (per IronRidge) | 30 to 46 mm |
| Material; finish (per IronRidge cut sheet) | 300 series stainless steel; black |
| Head size | 7/16" (cut sheet) |
| Torque (per IronRidge manual) | 80 in-lbs with a 7/16" socket |
| Condition as shipped (per IronRidge) | Fully assembled and lubricated |
| Systems (per IronRidge) | IronRidge says the UFO family is used in its Flush Mount, Tilt Mount and Ground Mount systems |
| UL 2703 (per IronRidge manual) | The XR Flush Mount system is UL 2703 listed (#5003807, #5028987, #5034990). IronRidge says the scope of evaluation includes bonding, grounding, mechanical loading and fire classification. |
| Bonding path (per IronRidge manual) | The manual's electrical diagram shows the UFO (or CAMO) in the fault-current ground path and says one grounding lug per row. The grounding section says only one grounding lug (rail or module) is required per continuous subarray, regardless of size, unless modules are frameless. |
| Warranty (per IronRidge) | 25 years for products and 10 years for accessories and electrical junction boxes, from shipment. The 5-year finish warranty does not apply to mill aluminum, pre-plated steel or polymeric products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025). |
| Source | IronRidge Universal Fastening Object (UFO) Cut Sheet v1.32; IronRidge UFO Family of Components Tech Brief Version 1.30; IronRidge Parts Catalog, Version 3.66 (2026); IronRidge XR Flush Mount System Datasheet, Version 2.10 (2026); IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- End clamps for each row: EFO, black or mill for 30 to 40 mm frames, or CAMO.
- A grounding lug: IronRidge's manual calls for a rail or module grounding lug. IronRidge's Parts Catalog lists the low-profile grounding lug (XR-LUG-04-A1).
- A torque wrench and 7/16" socket: Listed in IronRidge's XR Flush Mount manual.
May be required
- XR rails, splices and attachments: See roof mounts.
Optional upgrades
- Clear finish: The clear UFO (UFO-CL-01-A1), listed in IronRidge's Parts Catalog as Universal Module Clamp, Clear.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Reinstalling. IronRidge says to move modules at least 1/16" so UFOs contact a new section of frame. Make sure the T-bolt bottoms out in the rail channel before re-torquing.
- Rail joints. IronRidge says UFOs must be installed 1" away from the point where two rails join.
- End clamps have a smaller range. EFO is listed for 30 to 40 mm frames, so check your end clamp if frames are taller.
- Check your module. IronRidge's XR Flush Mount manual lists the framed modules tested or evaluated with the system, by maker and frame height. Confirm yours is listed.
