IronRidge QuickMount Lynx Standing Seam Metal Roof Clamp – QM-LYNX-SS-M1
SKUQM-LYNX-SS-M1
IronRidge QuickMount Lynx (QM-LYNX-SS-M1) is a non-penetrating clamp for standing seam metal roofs. IronRidge designed it for use with IronRidge open-slotted L-Feet and IronRidge rails. The technology is licensed by S-5!.
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview
IronRidge QuickMount Lynx (QM-LYNX-SS-M1) is a non-penetrating clamp for standing seam metal roofs. IronRidge designed it for use with IronRidge open-slotted L-Feet and IronRidge rails. The technology is licensed by S-5!.

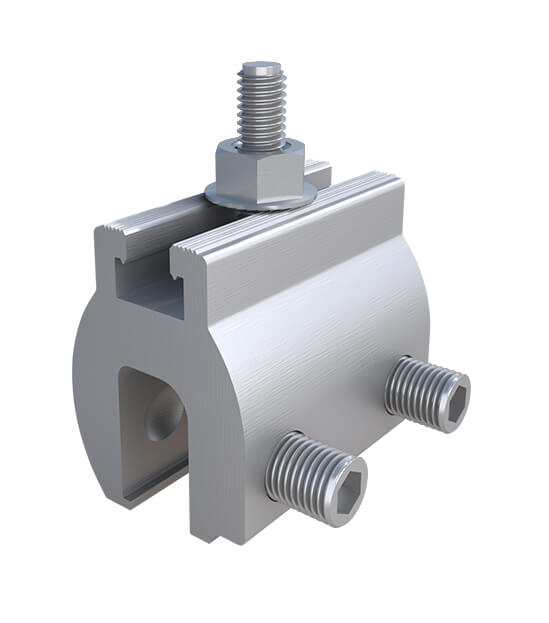

Two pre-assembled oval-point set screws clamp the seam. IronRidge says the oval points allow adjustment and reseating without damaging the roofing, and no roof penetrations are required.
An open-ended T-slot on top gives about 2" of north-south adjustment for sliding the L-foot into line with the rail. The included hex bolt and serrated flange nut secure the L-foot, which is sold separately.
Best For
- Standing seam roofs with seams at least 1.0" tall: IronRidge says Lynx fits folding and snapping standing seams. The seam must be at least 1.0" tall and no more than 0.5" wide.
- IronRidge XR Flush Mount systems: Lynx is listed as a metal roof attachment in IronRidge's XR Flush Mount manual. Pair it with the IronRidge Slotted L-Foot (mill) or black.
- Roofs that should not be penetrated: The set screws grip the seam without piercing the panel, per IronRidge.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Non-penetrating standing seam metal roof clamp, IronRidge QuickMount product line |
| Part number | QM-LYNX-SS-M1 (Lynx Standing Seam Metal Clamp) |
| Included (per IronRidge cut sheet) | 1 Lynx block, 6000 series aluminum, mill; 2 hex drive set screws, 3/8-24, 300 series stainless steel; 1 hex bolt, 5/16-18 × 1", 300 series stainless steel; 1 serrated flange lock nut |
| Not included | L-foot (shown for reference on the cut sheet) |
| Compatible seams (per IronRidge) | Folding and snapping standing seams; vertical seam height at least 1.0"; horizontal seam width 0.5" maximum |
| Adjustment | About 2" north-south in the open-ended T-slot |
| Certification (per IronRidge) | Certified component tested and evaluated to conform with UL 2703; part of the UL 2703 listed XR Flush Mount system. Certification includes bonding to painted and Galvalume metal roofs. |
| Design support (per IronRidge) | Included in IronRidge's Pitched Roof Design Assistant, with a stamped certification letter |
| Warranty (per IronRidge) | 25-year warranty period for products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) for terms and exclusions. |
| Source | IronRidge QuickMount Lynx Cut Sheet QM-LYNX-SS-M1 Rev 1.01; IronRidge Lynx Installation Manual Version 1.0 (2025); IronRidge QuickMount Lynx Tech Brief (2023); IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026); IronRidge XR Flush Mount System Datasheet, Version 2.10 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- An IronRidge Slotted L-Foot: Sold separately. See mill or black.
- IronRidge XR rails and bonding hardware: IronRidge says to secure compatible rails to each L-foot with the racking manufacturer's approved bonding hardware.
- An impact driver with a 3/16" hex bit and a 1/2" socket: Listed in IronRidge's Lynx and XR Flush Mount manuals.
May be required
- A string line: IronRidge suggests running one between the outermost attachments to keep the clamps and rail straight.
- Module clamps and grounding: See roof mounts.
Optional upgrades
- Other metal roof attachments: For exposed-fastened or corrugated roofs, see metal roof mounts.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Check the seam before ordering. IronRidge's Lynx manual shows compatible and incompatible profiles. Seams under 1.0" tall or wider than 0.5" are outside its stated range.
- Seat the block fully. IronRidge says to make sure the block is fully seated on the seam, then torque the set screws, alternating between them.
- Other racking needs engineering. IronRidge says Lynx can support other racking platforms only with additional engineering.
- Engineering and permits. Attachment spacing, rafter or deck requirements and load capacity are project-specific. Use IronRidge's design tools and stamped certification letters, and install under local building codes.
