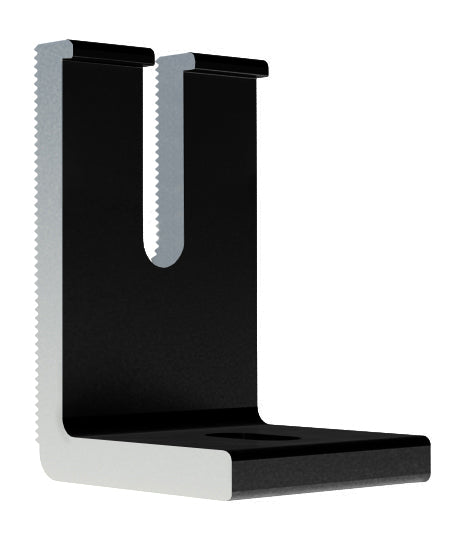

IronRidge Slotted L-Foot, Black – LFT-03-B1
SKULFT-03-B1

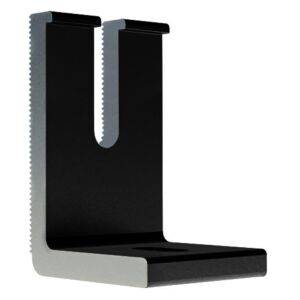

The IronRidge Slotted L-Foot (LFT-03-B1) is an extruded L-shaped bracket that connects IronRidge rails to a roof attachment. This listing is the black finish.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 0.23 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The IronRidge Slotted L-Foot (LFT-03-B1) is an extruded L-shaped bracket that connects IronRidge rails to a roof attachment. This listing is the black finish.
The base has a slotted hole for the bolt or stud on the attachment below. The upright leg has an open slot for the rail's bonding hardware.
IronRidge designed its QuickMount Lynx standing seam clamp for use with IronRidge open-slotted L-Feet and IronRidge rails. In IronRidge's XR Flush Mount manual, the L-Foot is listed among the system components.
Best For
- Standing seam metal roofs with IronRidge Lynx: IronRidge's Lynx documents say Lynx works with the Slotted L-Foot. See the IronRidge Lynx clamp.
- Exposed-fastened metal roofs with S-5! SolarFoot: S-5! describes SolarFoot as a mounting platform for a rail system's L-foot, sold separately. IronRidge lists SolarFoot as a tested or evaluated third-party attachment.
- Black racking: Choose this finish to match black rails. The other finish is sold separately.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Slotted L-foot, IronRidge XR Flush Mount system component |
| Part number | LFT-03-B1 (Slotted L-Foot, black) |
| Included (per IronRidge cut sheet) | 1 extruded L foot, slotted |
| Dimensions (per IronRidge cut sheet) | 3.00 in tall × 1.88 in wide; base 1.92 in deep; slotted hole in the base and open slot in the upright leg |
| Finish | Black |
| Used with (per IronRidge) | IronRidge QuickMount Lynx standing seam clamp (Lynx Tech Brief; XR Flush Mount Datasheet); IronRidge rails attached with IronRidge bonding hardware |
| Hardware | Not included. Lynx includes the hex bolt and flange nut that hold the L-foot; rail bonding hardware is sold separately. |
| Warranty (per IronRidge) | 25-year warranty period for products; 5-year finish warranty, which IronRidge says does not apply to mill aluminum. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) for terms and exclusions. |
| Source | IronRidge L-Foot Cut Sheet v1.20; IronRidge QuickMount Lynx Tech Brief (2023); IronRidge QuickMount Lynx Cut Sheet QM-LYNX-SS-M1 Rev 1.01; IronRidge XR Flush Mount System Datasheet, Version 2.10 (2026); IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026); S-5! SolarFoot brochure Version 083121; IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- A roof attachment that takes an L-foot: For example an IronRidge Lynx on a standing seam roof. See roof mounts and metal roof mounts.
- IronRidge XR rails and bonding hardware: IronRidge's manual attaches the rail to the L-Foot with bonding hardware.
May be required
- Module clamps and grounding: Choose them from IronRidge's XR Flush Mount manual for your modules.
Optional upgrades
- Spare L-feet: Useful when attachment positions shift from rafters or seams.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Keep the rail at or above the top of the L-Foot. IronRidge's manual says that when using attachments with longer slots, do not install the rail lower than the top of the L-Foot, to avoid damage to modules.
- Torque per the attachment's instructions. IronRidge and S-5! give torque values for each attachment and for bonding hardware in their manuals.
- Check the attachment fit. Make sure the bolt or stud on your attachment passes through the L-foot's base slot as its manufacturer's instructions describe.
- Engineering and permits. Attachment spacing, rafter or deck requirements and load capacity are project-specific. Use IronRidge's design tools and stamped certification letters, and install under local building codes.
