IronRidge Knockout Tile Replacement Base

Product Overview

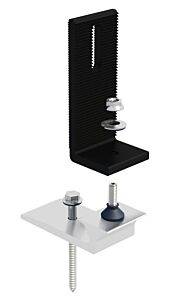

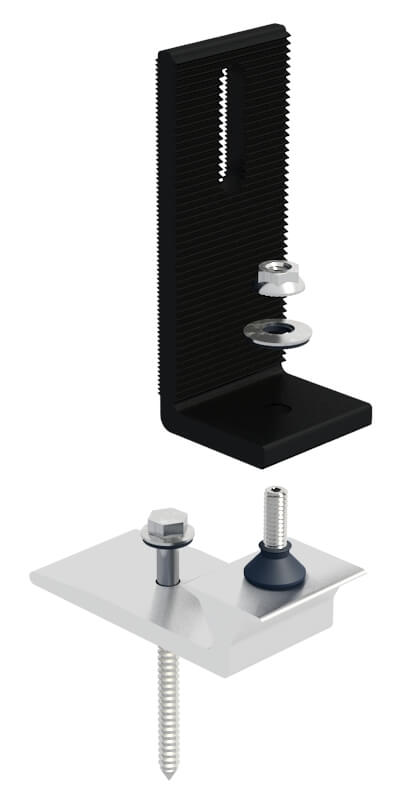

The IronRidge Knockout (KO) Tile Replacement Base is the structural / sealing base used with IronRidge Knockout Tile Replacement Flashings on tile roofs. Tile solar installs often mean grinding tiles, hunting for matching replacements, and aligning mounts — Knockout Tile replaces a tile with a form-fitting flashing + base stack so the mount integrates into the existing roof.

With a hammer strike, the stacked components encase the waterproof seal. Current kits include an open-slotted L-Foot for attaching XR rail hardware. This listing is the base (and included L-foot / lag hardware per kit) — tile-profile flashings (flat / S / W) are separate SKUs.

Best For

• IronRidge XR Flush Mount on clay or concrete tile roofs using Knockout Tile flashings
• Jobs that want a tile-replacement mount instead of hooks alone

Key Features

• Knockout Tile replacement base with waterproof seal stack
• Open-slotted L-Foot included in current kit packaging
• Works with separate flat, S, or W tile replacement flashings
• Supports batten and battenless tile roof constructions (per IronRidge)

Key Specifications

• Product: Knockout Tile Replacement Base
• Includes (per current kit notes): L-Foot, lag, and hardware
• Companion flashings: KOF-F01-T1 (flat), KOF-S01-T1 (S), KOF-W01-T1 (W) — sold separately
• Warranty: IronRidge 25-year product warranty (see terms)

Compatibility / Important Considerations

• Order the flashing that matches your tile profile (flat / S / W). The base does not include the profile flashing.
• Confirm tile type, batten layout, and structural attachment in the IronRidge Knockout Tile installation manual.
• Distinct from All Tile Hook (ATH-01-M1) and from Knockout Deck Flashing (KODF) — verify which tile attachment method your design uses.
