IronRidge FlashVue Solar Flashing Attachment, Mill – FV-01-M1
SKUFV-01-M1
IronRidge FlashVue™ (FV-01-M1) is a composition-shingle flashing attachment for IronRidge XR Flush Mount. An 8×12″ flashing with a large elevated viewport lets you see and center the pilot hole; a friction-fit GripCap (included) then docks in the viewport so you can drive...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.18 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview

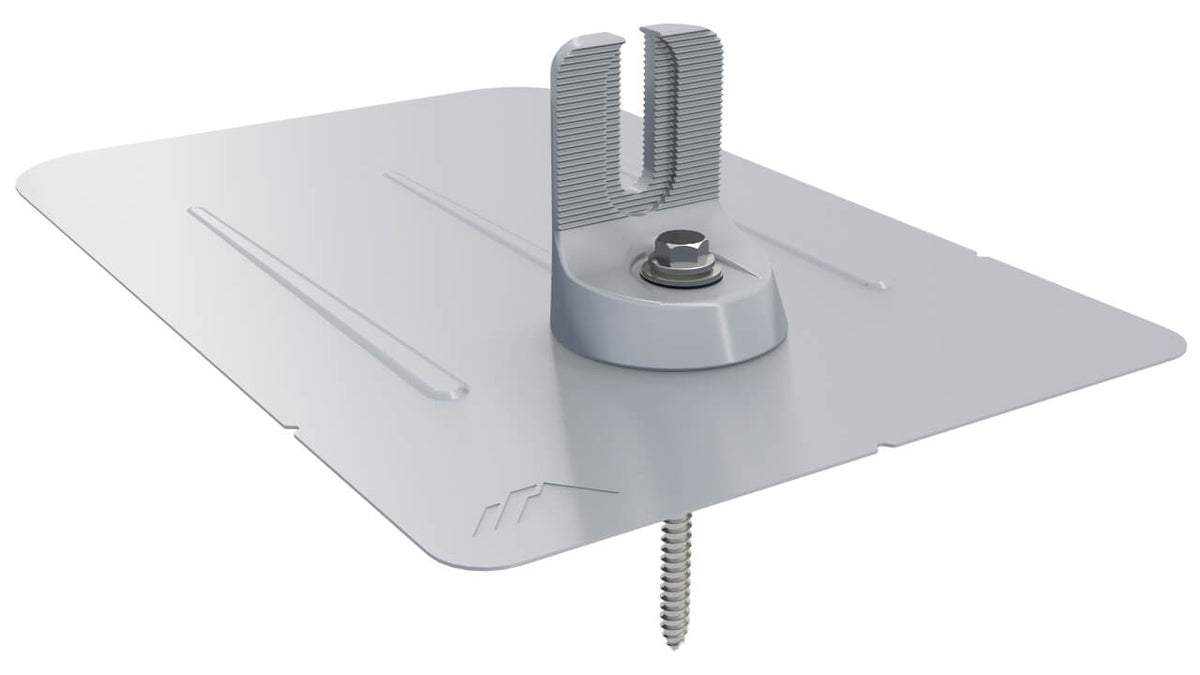

IronRidge FlashVue™ (FV-01-M1) is a composition-shingle flashing attachment for IronRidge XR Flush Mount. An 8×12″ flashing with a large elevated viewport lets you see and center the pilot hole; a friction-fit GripCap (included) then docks in the viewport so you can drive the lag single-handed. The Cap accepts L-foot / rail hardware in any orientation (N–S or E–W).
Water sealing uses an elevated viewport dock, GripCap coverage, and an EPDM washer on the 7/16″ lag. Mill finish. GripCap+ (taller, sold separately) is available when roof undulations need extra height.
Best For
- Composition shingle roofs using IronRidge XR Flush Mount
- Installs that want viewport alignment and a friction-fit Cap vs FlashFoot2’s twist-on Cap
- Mill-finish attachment aesthetics
Key Features
- 8×12″ flashing footprint to fit between typical roofing nails
- ≈0.75″ viewport for pilot-hole alignment
- Friction-fit GripCap (stays in place while driving the lag)
- 360° Cap orientation
- 7/16″ lag with EPDM washer (same socket as other Flush Mount parts)
Key Specifications
- Part number: FV-01-M1
- Flashing: 8×12″
- Includes: FlashVue flashing + GripCap
- Attachment loading (per IronRidge FlashVue literature): 1,161 lb uplift / 353 lb lateral (tested ratings — use IronRidge span/attachment tables for design)
- Water tests: UL 441 §27 rain test and TAS 100-95 wind-driven rain (per IronRidge)
- UL 2703 listed within IronRidge Flush Mount systems
Compatibility / Important Considerations
- Order L-feet and rail bonding hardware separately. For extra Cap height, use GripCap+ (not included).
- Composition shingle roofs — not tile, metal seam, or single-ply FRA attachments.
- Follow IronRidge FlashVue / Flush Mount instructions for lag embedment and flashing course.
