IronRidge T-Bolt Bonding Hardware, 3/8-16, Rail to Attachment – BHW-TB-03-A1
SKUBHW-TB-03-A1
IronRidge T-Bolt Bonding Hardware (BHW-TB-03-A1) attaches an IronRidge XR rail to a roof attachment and bonds the two. IronRidge also offers a square-bolt version; this listing is the T-bolt.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
IronRidge T-Bolt Bonding Hardware (BHW-TB-03-A1) attaches an IronRidge XR rail to a roof attachment and bonds the two. IronRidge also offers a square-bolt version; this listing is the T-bolt.
The kit is a 3/8-16 custom T-bolt with a serrated bonding nut, both 300 series stainless steel. IronRidge says the nut uses the same 7/16" socket as the rest of the system.
IronRidge's manual notes that T-bolts can be carried onto the roof with the rail and placed as you go. Square bolts must be slid into the rail's side slot ahead of time.
Best For
- Rail-to-attachment connections on IronRidge XR systems: IronRidge says bonding hardware attaches and bonds the rail to roof attachments.
- Installs that use one socket: The bonding nut takes the same 7/16" socket as UFOs and EFOs, per IronRidge.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Bonding hardware for attaching IronRidge XR rails to roof attachments |
| Part number | BHW-TB-03-A1 (T-Bolt Bonding Hardware, 1 pc, per IronRidge Parts Catalog) |

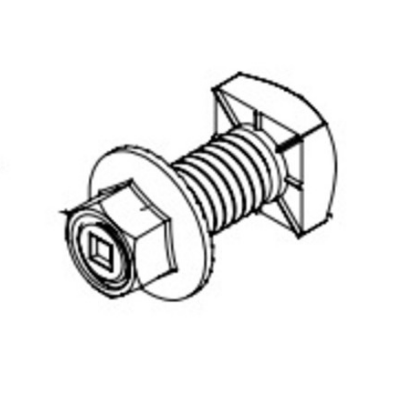

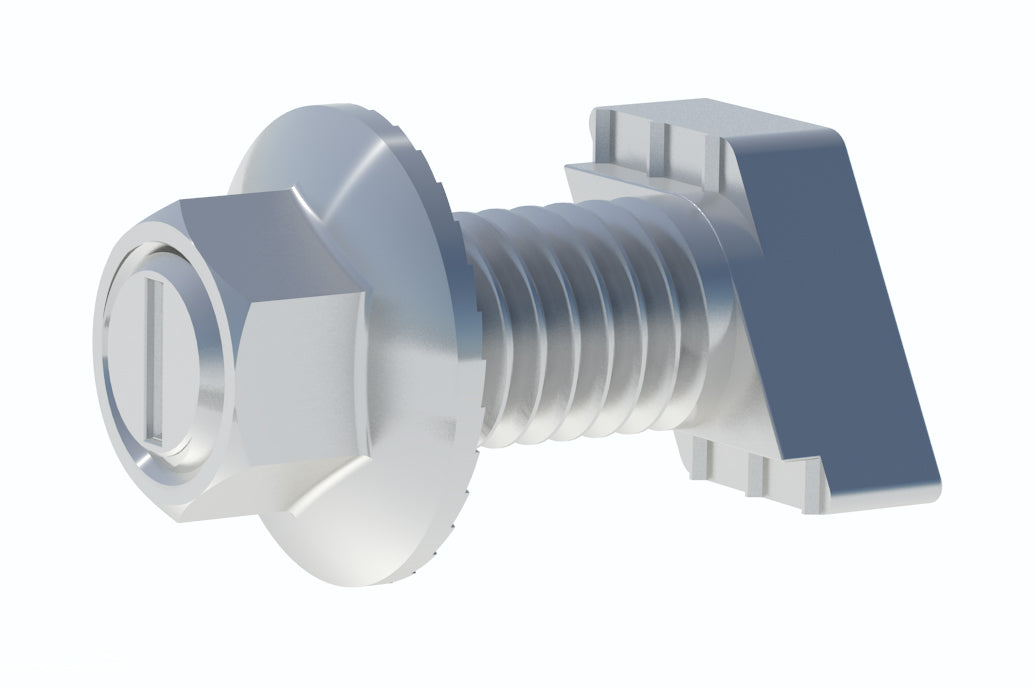

| Components (per IronRidge cut sheet) | Custom T-bolt, 3/8-16; bonding nut with serrations, 3/8-16, 7/16" head; both 300 series stainless steel, clear |
| Socket (per IronRidge) | 7/16", the same as the rest of the system (IronRidge product page) |
| Placement (per IronRidge manual) | Keep bonding hardware 1" away from the point where two rails join |
| Torque | Not stated here: IronRidge documents give different values for 3/8" bonding hardware by system and attachment. Use the value in the manual for your attachment. |
| Warranty (per IronRidge) | 25 years for products and 10 years for accessories and electrical junction boxes, from shipment. The 5-year finish warranty does not apply to mill aluminum, pre-plated steel or polymeric products. See IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025). |
| Source | IronRidge Bonding Hardware Cut Sheet v1.50; IronRidge XR Bonding Attachment Hardware page, ironridge.com/component/bonding-attachment-hardware/, retrieved Oct. 8, 2026; IronRidge Parts Catalog, Version 3.66 (2026); IronRidge XR Flush Mount Installation Manual, Version 5.2 (2026); IronRidge Limited Warranties and Disclaimer (Warranty.IronRidge.2025) |
What You May Also Need
Usually required
- An IronRidge-approved roof attachment: For example an L-foot-style attachment or tile hook from IronRidge's XR Flush Mount manual. See roof mounts.
- A torque wrench and 7/16" socket: Torque to the value in IronRidge's instructions for your attachment.
May be required
- Kit quantity: Plan quantities from the steps for your roof attachment in IronRidge's XR Flush Mount manual. How the rail connects to the attachment differs by attachment type.
Optional upgrades
- Other XR racking parts: See solar panel mounts.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Check the torque for your attachment. IronRidge's XR Flush Mount manual, FlashFoot2 manual and BX manual give different torque values for 3/8" bonding hardware. Follow the document for the attachment you are using.
- Rail joints. IronRidge says bonding hardware must be installed 1" away from the point where two rails join.
- Reuse. IronRidge's manual says components have been evaluated for multiple use unless otherwise noted.
- Engineering and permits. IronRidge says actual spans and cantilevers are defined by PE-stamped certification letters. Use IronRidge's Design Assistant and install under local codes.
