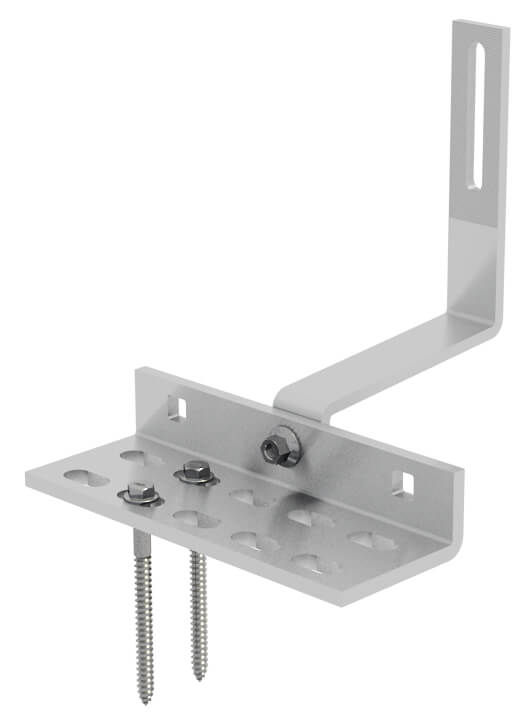

IronRidge All Tile Hook with 2 Lags – ATH-01-M1

Product Overview

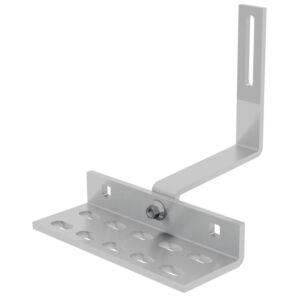

The IronRidge ATH-01-M1 All Tile Hook is an adjustable roof attachment for mounting IronRidge XR arrays on tile roofs. The hook slides under the tile course and lags into the roof deck / structure; an L-foot / rail stack then mounts to the hook. It is designed to work with flat, S, and W tile profiles, with optional deck flashing where the design requires it.

Hardware uses the same 7/16″ socket common to IronRidge Flush Mount components. Two lag bolts are included.

Best For

• Tile roofs (flat, S, or W) using IronRidge XR Flush Mount
• Projects that prefer a hook attachment rather than full Knockout Tile replacement flashings

Key Features

• Adjustable All Tile Hook
• Supports flat, S, and W tile profiles
• Optional deck flashing compatibility
• 7/16″ hardware (single-socket install with other IronRidge parts)
• Includes two lag bolts

Key Specifications

• Part number: ATH-01-M1
• Roof types: flat / S / W tile
• Includes: two lag bolts

Compatibility / Important Considerations

• Distinct from Knockout Tile (replacement flashing + base). Confirm which tile method your structural design and IronRidge layout use.
• Follow IronRidge tile installation instructions for lag embedment, tile lifting limits, and optional flashing.
