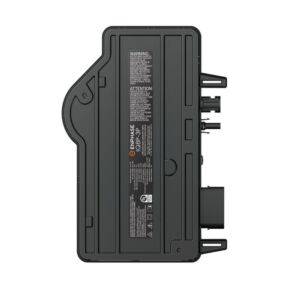

Enphase IQ8P-3P Commercial Microinverter, 208V Three-Phase – IQ8P-3P-72-E-US
SKUIQ8P-3P-72-E-US
The Enphase IQ8P-3P (IQ8P-3P-72-E-US) is a grid-tie microinverter for small commercial buildings with 120/208 VAC (4-wire) three-phase service. One unit mounts under each solar panel and converts that panel's DC power into AC power, rated 475 VA continuous at 208 V.
Couldn't load pickup availability
Need it anyway? Call (877) 878-4060 for a quote.
Delivery
Shipping, including freight for large items, is calculated at checkout before you pay.
- U.S. warehouse
- Trusted since 1999
- Expert U.S. support
Product Overview
The Enphase IQ8P-3P (IQ8P-3P-72-E-US) is a grid-tie microinverter for small commercial buildings with 120/208 VAC (4-wire) three-phase service. One unit mounts under each solar panel and converts that panel's DC power into AC power, rated 475 VA continuous at 208 V.
This is a commercial three-phase model. It is not for 240 V split-phase homes, and Enphase's datasheet says connecting to any system voltage other than 120/208 VAC three-phase requires a transformer. Monitoring requires an Enphase IQ Gateway Commercial 2, which talks to the microinverters over the AC wiring.
Enphase lists commonly used module pairings of 380–640 W, covering 54-, 60-, 66- and 72-cell modules and their half-cell versions, so it suits the higher-power panels common on commercial roofs.
Best For
- Small commercial roofs on 120/208 V three-phase (4-wire) service: Enphase designed the IQ8P-3P for this service. It is not listed for 240 V split-phase.
- High-power panels: Enphase lists 380–640 W modules (54/108-, 60/120-, 66/132- and 72/144-cell) as commonly used pairings.
- Roofs with shade or several orientations: Each panel is converted separately, so one shaded panel does not pull down the others.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Grid-tie commercial microinverter (one per PV module), Enphase IQ8 Commercial |
| Model / ordering SKU | IQ8P-3P-72-E-US (Enphase also makes a U.S.-made version, IQ8P-3P-72-E-DOM-US, with the same ratings) |
| Grid connection | 120/208 VAC (4-wire) three-phase; nominal 208 V L-L (range 183–229 V), or 220 V (range 198–242 V) where configured; 60 Hz |
| Peak output power | 480 VA |
| Maximum continuous output power | 475 VA |
| Maximum continuous output current | 2.28 A at 208 V; 2.16 A at 220 V |
| Maximum units per 20 A three-phase branch circuit | 12 (Enphase notes local limits may vary) |
| Module compatibility | 54-cell/108-half-cell, 60-cell/120-half-cell, 66-cell/132-half-cell and 72-cell/144-half-cell modules; commonly used pairings 380–640 W |
| Peak power tracking voltage | 35.5–53 V |
| Operating range | 16–63 V |
| Minimum / maximum start voltage | 21 V / 63 V |
| Maximum input DC voltage | 63 V |
| Maximum DC continuous current (module Imp) | 14 A |
| Maximum input DC short-circuit current / maximum module Isc | 25 A / 20 A |
| Efficiency | CEC weighted 97.5%; peak 97.8% |
| DC connector | Enphase EN4 bulkhead, supplied with an ECA-EN4-S22-12 adapter cable pair (EN4 to Stäubli MC4, 150 mm) |
| Communication; monitoring | Power line communication (PLC); requires an Enphase IQ Gateway Commercial 2 |
| Enclosure | Class II double-insulated, corrosion-resistant polymeric enclosure; NEMA Type 6/IP67, outdoor |
| Ambient temperature range | −40°C to 65°C (−40°F to 149°F) |
| Dimensions; weight | 265 × 200 × 35 mm (10.4 × 7.9 × 1.4 in) without bracket; 1.6 kg (3.5 lb) |
| Rapid shutdown | UL Listed as PV rapid shutdown equipment; Enphase states it conforms with NEC 2014, 2017 and 2020 section 690.12 when installed per Enphase instructions |
| Certifications (per Enphase) | CA Rule 21 (UL 1741-SB), UL 62109-1, UL 1741/IEEE 1547, FCC Part 15 Class B, CAN/CSA-C22.2 No. 107.1-01 |
| Warranty (per Enphase) | Enphase's IQ8P-3P datasheet (DSH-00450-2.0) ties the 25-year limited warranty to an internet-connected IQ Gateway; see Enphase's current warranty terms |
| Source | Enphase IQ8 Commercial Microinverters datasheet DSH-00236-8.0-EN-2026-06-04; IQ8P-3P datasheet DSH-00450-2.0-EN-US-2025-01-24 |
What You May Also Need
Usually required
- Enphase IQ Gateway Commercial 2: Enphase's datasheet says monitoring requires this gateway. The residential IQ Gateway is a different product.
- Enphase three-phase IQ Cable: Connects the microinverters on each three-phase branch. Choose the cable from Enphase's commercial design documents for this microinverter.
- Disconnects and breakers: Each three-phase branch needs a 20 A (maximum) breaker, and most commercial systems also need an AC disconnect.
May be required
- PV cables: Panel leads must reach the supplied EN4-to-MC4 adapter cables. Check the connector type on any extension cable you add.
- Racking that supports microinverter mounting: Each microinverter mounts to the racking under its panel.
Optional upgrades
- Spare EN4-to-MC4 adapter cables: Useful for service. Use only the Enphase adapter type listed on the datasheet.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Three-phase 208 V only. This model is for 120/208 VAC (4-wire) three-phase service. Do not use it on a 240 V split-phase home service without the transformer Enphase calls for.
- Connector rule. Enphase says the bulkhead and adapter-cable DC connectors must be mated only with the identical type and brand of connector.
- Check module voltage and current. The panel's cold-weather Voc must stay at or below 63 V, its Imp at or below 14 A and its Isc at or below 20 A. Panels above 640 W may see extra clipping losses, according to Enphase.
- Commercial monitoring setup. Plan the IQ Gateway Commercial 2 and its internet connection as part of the design; Enphase ties the full warranty term to an internet-connected gateway.
- Permits and interconnection. Commercial grid-connected systems need utility approval and are designed and installed by qualified professionals under local electrical codes.
